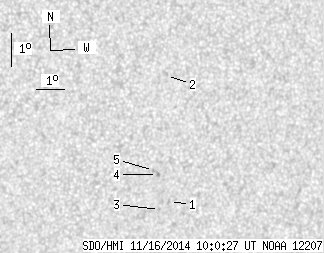

SDO HMI 2014-11-16 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.29 | 0.00 | 3.73 | -10.32 | 323.29 | 30.73 | 246.54 | 0.5506 | 695.2 | 564.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.57 | -11.50 | 323.72 | 31.15 | 244.80 | 0.5624 | 696.0 | 504.3 | |
| 0.00 | 1.38 | 0.00 | 0.81 | -7.67 | 323.23 | 30.66 | 251.07 | 0.5364 | 407.0 | 388.3 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -11.74 | 323.39 | 30.83 | 244.18 | 0.5595 | 774.0 | 541.8 | |
| 0.00 | 1.89 | 0.00 | 1.12 | -10.66 | 323.19 | 30.63 | 245.84 | 0.5509 | 841.0 | 699.1 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -10.54 | 323.04 | 30.48 | 245.95 | 0.5482 | 758.0 | 634.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
