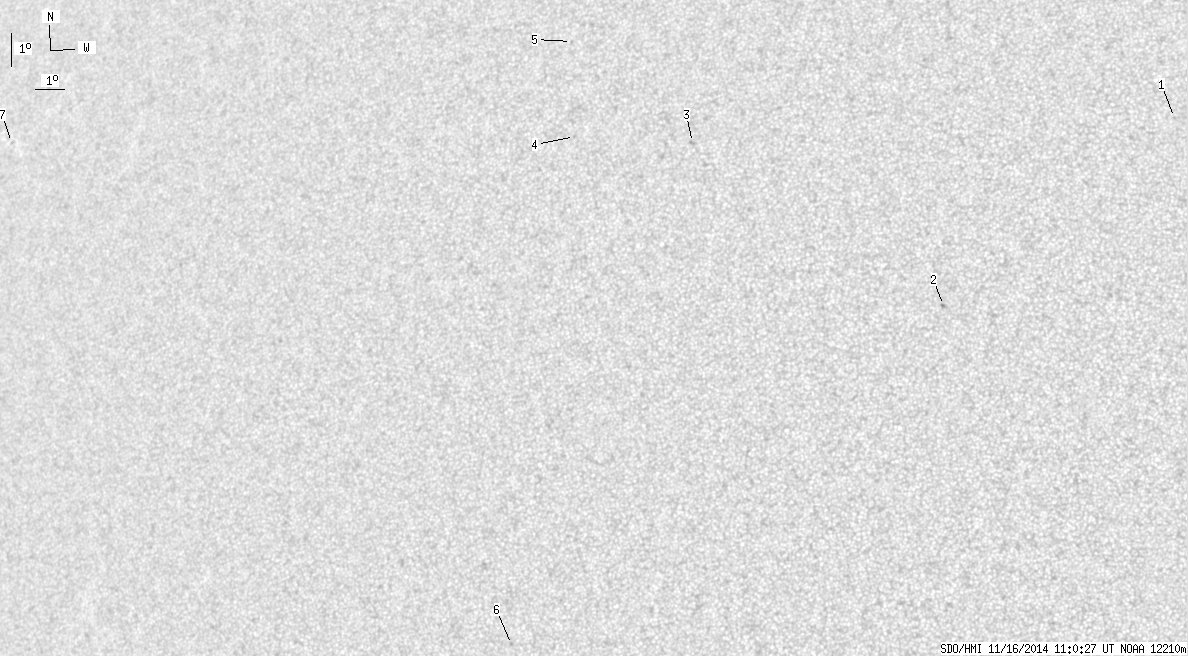

SDO HMI 2014-11-16 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.91 | 0.00 | 4.52 | 17.44 | 268.14 | -23.87 | 53.65 | 0.4764 | -79.0 | -78.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.54 | 20.99 | 284.11 | -7.91 | 22.23 | 0.3411 | -762.0 | -588.5 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 15.15 | 277.12 | -14.90 | 48.80 | 0.3313 | 1000.0 | 748.1 | |
| 0.00 | 2.06 | 0.00 | 1.17 | 20.04 | 268.29 | -23.72 | 51.39 | 0.4857 | -783.0 | -632.7 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 20.15 | 264.13 | -27.89 | 55.21 | 0.5368 | -555.0 | -497.8 | |
| 0.00 | 0.95 | 0.00 | 0.57 | 23.12 | 263.39 | -28.63 | 51.20 | 0.5676 | -700.0 | -515.4 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 4.79 | 263.75 | -28.27 | 84.90 | 0.4758 | 807.0 | 677.6 | |
| 0.00 | 0.43 | 0.00 | 0.35 | 19.33 | 241.21 | -50.81 | 67.52 | 0.7937 | 440.0 | 379.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
