SDO HMI 2014-11-16 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.37 | 25.71 | 12.90 | 34.64 | -12.23 | 224.26 | -67.21 | 104.29 | 0.9305 | -24.8 | 96.0 | |
|
previous
or next observation for the same group /

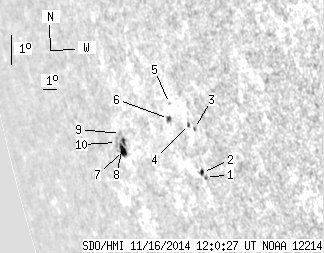

back to the solar disc SDO HMI 2014-11-16 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.34 | 1.46 | 0.39 | 1.68 | -13.07 | 228.47 | -63.00 | 105.86 | 0.9041 | 353.2 | 324.5 | |
| 1.12 | 2.41 | 1.29 | 2.78 | -12.92 | 228.33 | -63.14 | 105.68 | 0.9049 | 320.4 | 250.6 | |
| 0.00 | 0.95 | 0.00 | 1.08 | -11.57 | 228.38 | -63.09 | 104.21 | 0.9030 | 388.0 | 343.3 | |
| 0.00 | 1.29 | 0.00 | 1.49 | -11.47 | 228.01 | -63.46 | 104.03 | 0.9055 | 374.0 | 273.9 | |
| 0.00 | 1.03 | 0.00 | 1.24 | -10.87 | 226.94 | -64.54 | 103.22 | 0.9125 | 330.0 | 274.1 | |
| 1.12 | 2.84 | 1.36 | 3.45 | -11.34 | 226.67 | -64.80 | 103.68 | 0.9149 | 344.5 | 186.1 | |
| 5.24 | 11.60 | 7.63 | 16.85 | -12.50 | 222.57 | -68.90 | 104.33 | 0.9416 | -255.7 | -178.0 | |
| 1.55 | -7.00 | 2.23 | -7.00 | -12.21 | 222.73 | -68.74 | 104.05 | 0.9404 | -518.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.99 | -11.98 | 222.61 | -68.86 | 103.78 | 0.9409 | -200.0 | -151.5 | |
| 0.00 | 2.75 | 0.00 | 4.08 | -12.27 | 222.10 | -69.37 | 104.03 | 0.9441 | 372.0 | 327.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
