SDO HMI 2014-11-16 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.23 | 25.09 | 13.78 | 32.98 | -12.24 | 224.35 | -66.57 | 104.40 | 0.9266 | -121.4 | 120.5 | |
|
previous
or next observation for the same group /

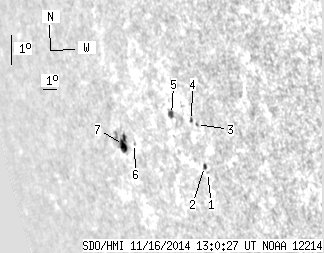

back to the solar disc SDO HMI 2014-11-16 13:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.97 | -13.05 | 228.47 | -62.45 | 105.94 | 0.9001 | 403.0 | 397.5 | |
| 0.77 | 1.98 | 0.87 | 2.23 | -12.87 | 228.35 | -62.57 | 105.72 | 0.9007 | 406.3 | 314.6 | |
| 0.00 | 1.46 | 0.00 | 1.64 | -11.59 | 228.37 | -62.56 | 104.31 | 0.8991 | 378.0 | 304.4 | |
| 0.43 | 1.55 | 0.49 | 1.75 | -11.48 | 228.08 | -62.84 | 104.14 | 0.9011 | 263.0 | 230.2 | |
| 1.55 | 3.95 | 1.84 | 4.69 | -11.35 | 226.76 | -64.16 | 103.79 | 0.9104 | 370.3 | 210.3 | |
| 0.00 | 1.03 | 0.00 | 1.40 | -12.38 | 223.51 | -67.42 | 104.41 | 0.9327 | -403.0 | -296.9 | |
| 7.48 | 14.26 | 10.58 | 20.30 | -12.45 | 222.57 | -68.35 | 104.35 | 0.9384 | -374.5 | 54.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
