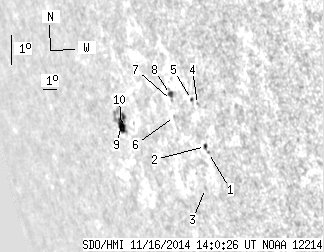

SDO HMI 2014-11-16 14:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.75 | 30.40 | 14.11 | 39.18 | -12.36 | 224.29 | -66.08 | 104.60 | 0.9236 | -88.4 | 56.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 14:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 1.14 | -13.05 | 228.53 | -61.85 | 106.05 | 0.8957 | 365.0 | 337.1 | |
| 0.95 | 1.89 | 1.05 | 2.09 | -12.87 | 228.41 | -61.97 | 105.83 | 0.8963 | 448.3 | 388.4 | |
| 0.00 | 1.37 | 0.00 | 1.57 | -14.19 | 227.79 | -62.58 | 107.17 | 0.9025 | -177.0 | -144.9 | |
| 0.00 | 1.12 | 0.00 | 1.23 | -11.59 | 228.42 | -61.95 | 104.42 | 0.8946 | 492.0 | 357.2 | |
| 0.43 | 1.37 | 0.48 | 1.53 | -11.45 | 228.08 | -62.29 | 104.21 | 0.8970 | 250.2 | 262.5 | |
| 0.00 | 1.20 | 0.00 | 1.41 | -12.03 | 226.70 | -63.68 | 104.61 | 0.9077 | 139.0 | 175.0 | |
| 0.00 | 1.03 | 0.00 | 1.20 | -11.54 | 226.70 | -63.67 | 104.08 | 0.9072 | 236.0 | 177.8 | |
| 1.63 | 2.92 | 1.90 | 3.40 | -11.36 | 226.71 | -63.67 | 103.88 | 0.9069 | 359.6 | 212.7 | |
| 1.55 | 18.47 | 2.11 | 25.61 | -12.20 | 222.83 | -67.55 | 104.20 | 0.9334 | -574.7 | -42.8 | |
| 6.19 | -9.00 | 8.57 | -9.00 | -12.52 | 222.49 | -67.88 | 104.49 | 0.9357 | -366.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
