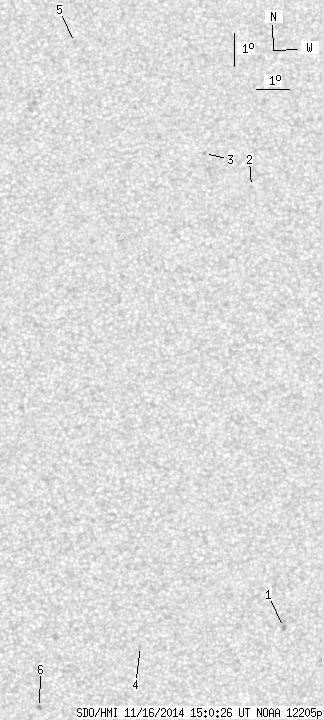

SDO HMI 2014-11-16 15:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.94 | 0.00 | 4.56 | 9.51 | 298.07 | 8.25 | 295.18 | 0.2129 | 63.3 | 216.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 15:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.41 | 0.00 | 1.22 | 4.11 | 301.28 | 11.45 | 277.41 | 0.2006 | 911.0 | 733.5 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 17.34 | 300.80 | 10.98 | 324.39 | 0.3137 | -872.0 | -653.9 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 18.37 | 299.38 | 9.55 | 329.83 | 0.3148 | -807.0 | -677.9 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 3.58 | 296.97 | 7.14 | 277.36 | 0.1257 | 788.0 | 593.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 21.85 | 295.41 | 5.59 | 344.62 | 0.3422 | -699.0 | -555.4 | |
| 0.00 | 1.98 | 0.00 | 0.98 | 1.79 | 293.94 | 4.12 | 257.85 | 0.0738 | 1059.0 | 905.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
