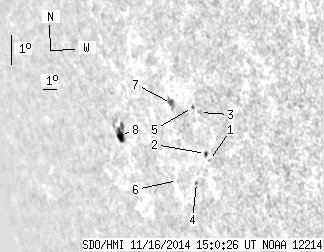

SDO HMI 2014-11-16 15:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.13 | 29.90 | 9.47 | 37.30 | -12.29 | 224.50 | -65.32 | 104.64 | 0.9184 | -103.1 | 56.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 15:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.65 | -13.03 | 228.57 | -61.25 | 106.14 | 0.8911 | 447.0 | 419.9 | |
| 0.69 | 1.72 | 0.75 | 1.87 | -12.82 | 228.40 | -61.42 | 105.87 | 0.8921 | 431.4 | 362.9 | |
| 0.00 | 2.06 | 0.00 | 2.22 | -11.56 | 228.53 | -61.30 | 104.50 | 0.8895 | 316.0 | 242.4 | |
| 0.00 | 1.03 | 0.00 | 1.17 | -13.75 | 227.40 | -62.43 | 106.71 | 0.9008 | 37.0 | 71.6 | |
| 0.00 | 1.37 | 0.00 | 1.50 | -11.43 | 228.13 | -61.69 | 104.28 | 0.8924 | 436.0 | 303.9 | |
| 0.00 | 0.52 | 0.00 | 0.61 | -13.75 | 226.11 | -63.72 | 106.47 | 0.9100 | -530.0 | -465.3 | |
| 0.00 | 6.10 | 0.00 | 6.96 | -11.36 | 226.77 | -63.05 | 103.98 | 0.9024 | 505.0 | 274.2 | |
| 6.44 | 16.50 | 8.72 | 22.32 | -12.52 | 222.51 | -67.31 | 104.58 | 0.9322 | -358.8 | -132.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
