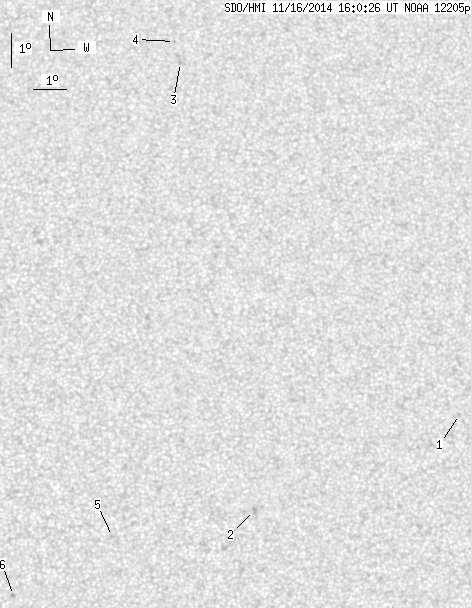

SDO HMI 2014-11-16 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.85 | 0.00 | 4.49 | 7.02 | 299.46 | 10.19 | 285.88 | 0.2093 | 286.7 | 417.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.49 | 7.04 | 307.68 | 18.41 | 284.03 | 0.3245 | 695.0 | 489.0 | |
| 0.00 | 2.75 | 0.00 | 1.39 | 4.28 | 301.27 | 12.00 | 277.91 | 0.2103 | 831.0 | 755.1 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 17.74 | 299.52 | 10.24 | 326.97 | 0.3122 | -917.0 | -684.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 18.39 | 299.37 | 10.09 | 328.51 | 0.3197 | -744.0 | -570.7 | |
| 0.00 | 1.55 | 0.00 | 0.77 | 3.54 | 296.98 | 7.71 | 276.58 | 0.1354 | 817.0 | 644.3 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 1.81 | 294.02 | 4.74 | 259.72 | 0.0844 | 1038.0 | 832.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
