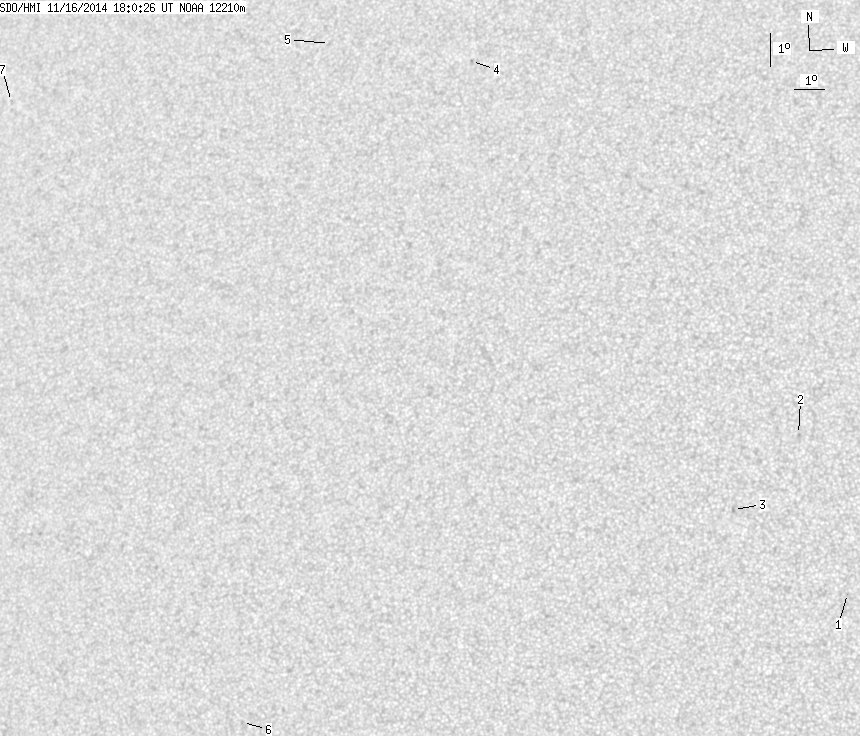

SDO HMI 2014-11-16 18:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.42 | 0.00 | 4.71 | 14.58 | 265.95 | -22.22 | 59.62 | 0.4276 | 350.4 | 242.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 18:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.43 | 7.47 | 279.30 | -8.87 | 61.19 | 0.1753 | 667.0 | 485.7 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 12.21 | 277.67 | -10.50 | 46.96 | 0.2449 | 841.0 | 669.5 | |
| 0.00 | 1.72 | 0.00 | 0.88 | 9.95 | 275.75 | -12.42 | 58.93 | 0.2484 | 693.0 | 568.1 | |
| 0.00 | 1.46 | 0.00 | 0.84 | 23.56 | 265.91 | -22.26 | 43.99 | 0.5019 | -716.0 | -549.6 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 24.04 | 260.74 | -27.43 | 48.74 | 0.5619 | -172.0 | -199.6 | |
| 0.00 | 1.55 | 0.00 | 0.87 | 3.39 | 260.34 | -27.83 | 87.81 | 0.4683 | 518.0 | 396.9 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 21.93 | 249.03 | -39.14 | 59.90 | 0.6792 | 622.0 | 531.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
