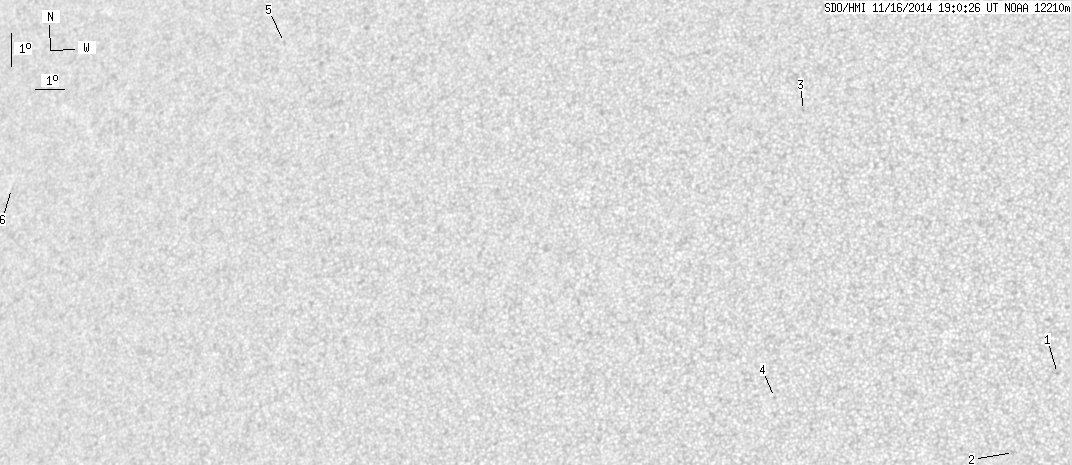

SDO HMI 2014-11-16 19:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.30 | 0.00 | 4.14 | 14.54 | 264.33 | -23.28 | 58.04 | 0.4263 | 354.3 | 343.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 19:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.57 | 12.27 | 277.11 | -10.51 | 46.80 | 0.2456 | 913.0 | 706.5 | |
| 0.00 | 2.49 | 0.00 | 1.27 | 9.89 | 275.84 | -11.78 | 57.81 | 0.2386 | 243.0 | 303.3 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 20.20 | 268.36 | -19.26 | 45.55 | 0.4354 | -756.0 | -629.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 11.45 | 268.27 | -19.34 | 64.45 | 0.3614 | 746.0 | 544.8 | |
| 0.00 | 1.03 | 0.00 | 0.69 | 21.94 | 249.04 | -38.58 | 59.60 | 0.6729 | 520.0 | 446.4 | |
| 0.00 | 0.77 | 0.00 | 0.60 | 17.08 | 238.73 | -48.88 | 69.86 | 0.7694 | 460.0 | 456.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
