SDO HMI 2014-11-16 20:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 85.87 | 0.67 | 48.45 | -12.46 | 310.83 | 23.77 | 235.89 | 0.4734 | -86.0 | 3.3 | |
|
previous
or next observation for the same group /

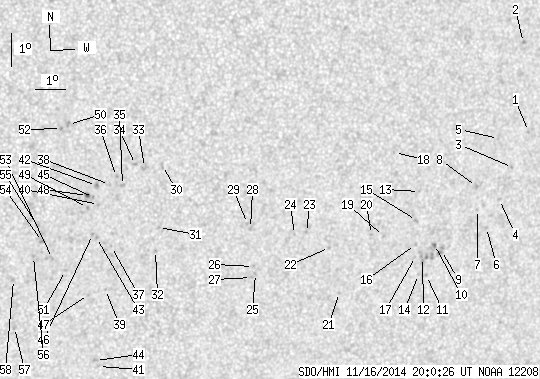

back to the solar disc SDO HMI 2014-11-16 20:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.67 | -9.76 | 319.60 | 32.54 | 248.58 | 0.5717 | 535.0 | 440.2 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -7.06 | 319.17 | 32.11 | 252.94 | 0.5540 | 686.0 | 590.4 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -10.84 | 319.16 | 32.09 | 246.53 | 0.5711 | 729.0 | 582.6 | |
| 0.00 | 1.37 | 0.00 | 0.83 | -11.81 | 318.81 | 31.75 | 244.73 | 0.5718 | 615.0 | 426.9 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -9.94 | 318.56 | 31.49 | 247.65 | 0.5586 | 701.0 | 544.2 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -12.65 | 318.46 | 31.40 | 243.12 | 0.5721 | 724.0 | 525.6 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -12.09 | 318.07 | 31.00 | 243.76 | 0.5638 | 615.0 | 477.7 | |
| 0.00 | 1.46 | 0.00 | 0.87 | -11.39 | 317.94 | 30.88 | 244.83 | 0.5581 | 784.0 | 706.3 | |
| 0.00 | 4.12 | 0.00 | 2.45 | -13.32 | 316.96 | 29.90 | 240.94 | 0.5570 | 640.0 | 626.7 | |
| 0.43 | 6.53 | 0.25 | 3.87 | -13.13 | 316.69 | 29.62 | 241.04 | 0.5523 | 825.0 | 678.4 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -14.08 | 316.54 | 29.47 | 239.38 | 0.5567 | 625.0 | 513.7 | |
| 0.00 | 7.04 | 0.00 | 4.17 | -13.52 | 316.32 | 29.26 | 240.11 | 0.5502 | 776.0 | 671.0 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -11.49 | 315.96 | 28.90 | 243.23 | 0.5326 | 592.0 | 508.2 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -14.05 | 316.25 | 29.19 | 239.21 | 0.5529 | 631.0 | 585.0 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -12.38 | 315.96 | 28.90 | 241.72 | 0.5382 | 708.0 | 604.5 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -13.11 | 316.02 | 28.96 | 240.54 | 0.5437 | 636.0 | 575.4 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -13.49 | 316.07 | 29.01 | 239.97 | 0.5468 | 570.0 | 530.5 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -10.28 | 314.98 | 27.92 | 244.60 | 0.5120 | -734.0 | -638.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -12.84 | 314.88 | 27.82 | 240.04 | 0.5272 | 764.0 | 490.9 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -12.77 | 314.46 | 27.40 | 239.80 | 0.5213 | 844.0 | 719.7 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -14.54 | 313.58 | 26.52 | 236.03 | 0.5232 | 579.0 | 527.3 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -13.14 | 313.07 | 26.01 | 237.90 | 0.5061 | 682.0 | 517.1 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -12.66 | 312.24 | 25.18 | 237.93 | 0.4918 | 668.0 | 467.7 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -12.71 | 311.84 | 24.78 | 237.44 | 0.4871 | 763.0 | 579.4 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -13.89 | 310.66 | 23.60 | 234.11 | 0.4817 | 681.0 | 518.3 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -13.67 | 310.57 | 23.51 | 234.39 | 0.4788 | 691.0 | 515.7 | |
| 0.00 | 0.94 | 0.00 | 0.53 | -14.01 | 310.54 | 23.48 | 233.77 | 0.4813 | 799.0 | 632.4 | |
| 0.00 | 1.80 | 0.00 | 1.01 | -12.50 | 310.36 | 23.29 | 236.25 | 0.4663 | 837.0 | 696.2 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -12.34 | 310.24 | 23.18 | 236.41 | 0.4635 | 829.0 | 653.4 | |
| 0.00 | 2.32 | 0.00 | 1.26 | -10.51 | 307.33 | 20.27 | 236.52 | 0.4101 | -577.0 | -497.4 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -12.41 | 307.34 | 20.28 | 232.75 | 0.4270 | -621.0 | -543.8 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -13.11 | 307.30 | 20.24 | 231.37 | 0.4331 | -795.0 | -665.6 | |
| 0.00 | 3.61 | 0.00 | 1.95 | -10.56 | 306.75 | 19.69 | 235.66 | 0.4029 | -676.0 | -697.1 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -10.47 | 306.46 | 19.40 | 235.47 | 0.3982 | -916.0 | -745.1 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -11.10 | 306.09 | 19.02 | 233.63 | 0.3990 | -718.0 | -620.2 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -10.82 | 305.88 | 18.81 | 233.91 | 0.3937 | -992.0 | -813.5 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -12.97 | 305.87 | 18.81 | 229.62 | 0.4141 | -715.0 | -501.1 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -11.06 | 305.67 | 18.61 | 233.11 | 0.3932 | -796.0 | -663.1 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -14.29 | 305.78 | 18.72 | 227.06 | 0.4266 | -701.0 | -552.3 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -11.67 | 305.36 | 18.30 | 231.40 | 0.3951 | -729.0 | -588.8 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -16.69 | 305.78 | 18.72 | 223.03 | 0.4523 | -597.0 | -455.5 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -11.09 | 305.26 | 18.19 | 232.45 | 0.3882 | -971.0 | -829.6 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -12.68 | 305.36 | 18.30 | 229.41 | 0.4052 | -924.0 | -781.4 | |
| 0.00 | 1.80 | 0.00 | 1.00 | -16.50 | 305.66 | 18.60 | 223.16 | 0.4490 | -749.0 | -603.6 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -11.45 | 305.18 | 18.12 | 231.58 | 0.3908 | -910.0 | -746.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -12.59 | 305.23 | 18.17 | 229.39 | 0.4026 | -1000.0 | -788.2 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -14.44 | 305.25 | 18.18 | 225.99 | 0.4220 | -706.0 | -573.6 | |
| 0.77 | 2.41 | 0.42 | 1.29 | -11.39 | 304.99 | 17.93 | 231.42 | 0.3877 | -1160.7 | -897.0 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -11.76 | 305.01 | 17.95 | 230.70 | 0.3916 | -804.0 | -641.9 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -9.22 | 304.26 | 17.20 | 235.06 | 0.3577 | -807.0 | -745.6 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -13.68 | 304.45 | 17.39 | 226.09 | 0.4047 | -707.0 | -550.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -9.34 | 304.05 | 16.99 | 234.45 | 0.3559 | -1008.0 | -870.1 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -13.31 | 304.00 | 16.94 | 226.06 | 0.3956 | -811.0 | -701.3 | |
| 0.00 | 1.63 | 0.00 | 0.88 | -12.78 | 303.65 | 16.59 | 226.47 | 0.3857 | -1033.0 | -865.0 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -12.28 | 303.46 | 16.40 | 227.11 | 0.3781 | -639.0 | -620.0 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -13.23 | 303.40 | 16.33 | 225.16 | 0.3878 | -970.0 | -774.1 | |
| 0.00 | 1.80 | 0.00 | 0.98 | -15.43 | 302.95 | 15.89 | 220.50 | 0.4081 | -770.0 | -531.5 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -13.94 | 302.81 | 15.75 | 222.83 | 0.3891 | -754.0 | -564.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
