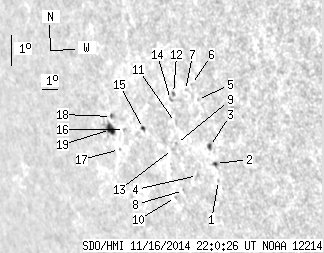

SDO HMI 2014-11-16 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.50 | 34.86 | 9.40 | 37.33 | -12.57 | 225.02 | -60.93 | 105.70 | 0.8873 | -55.3 | 24.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.66 | -13.86 | 228.64 | -57.31 | 107.89 | 0.8607 | 231.0 | 203.5 | |
| 0.94 | 1.63 | 0.91 | 1.57 | -13.34 | 228.67 | -57.28 | 107.29 | 0.8595 | 440.6 | 366.1 | |
| 1.12 | 2.66 | 1.08 | 2.57 | -12.82 | 228.52 | -57.43 | 106.67 | 0.8599 | 533.4 | 399.9 | |
| 0.00 | 1.80 | 0.00 | 1.80 | -13.76 | 227.47 | -58.49 | 107.50 | 0.8703 | 432.0 | 231.9 | |
| 0.00 | 0.52 | 0.00 | 0.50 | -11.39 | 228.33 | -57.63 | 104.99 | 0.8592 | 491.0 | 369.3 | |
| 0.00 | 0.77 | 0.00 | 0.75 | -10.94 | 228.13 | -57.83 | 104.44 | 0.8602 | 511.0 | 453.7 | |
| 0.00 | 0.77 | 0.00 | 0.76 | -11.14 | 227.72 | -58.24 | 104.58 | 0.8640 | 456.0 | 396.9 | |
| 0.00 | 1.12 | 0.00 | 1.15 | -14.26 | 226.42 | -59.54 | 107.84 | 0.8796 | -476.0 | -417.5 | |
| 0.00 | 0.86 | 0.00 | 0.88 | -12.81 | 226.60 | -59.36 | 106.25 | 0.8759 | -45.0 | -17.5 | |
| 0.00 | 0.69 | 0.00 | 0.72 | -14.50 | 225.82 | -60.14 | 107.98 | 0.8847 | -310.0 | -285.1 | |
| 0.00 | 1.46 | 0.00 | 1.47 | -12.16 | 226.78 | -59.17 | 105.55 | 0.8734 | 304.0 | 179.4 | |
| 0.00 | 2.06 | 0.00 | 2.06 | -11.26 | 226.98 | -58.98 | 104.58 | 0.8704 | 520.0 | 429.2 | |
| 0.00 | 1.46 | 0.00 | 1.50 | -13.01 | 226.28 | -59.68 | 106.41 | 0.8787 | -394.0 | -354.1 | |
| 0.00 | 1.63 | 0.00 | 1.64 | -11.46 | 226.73 | -59.22 | 104.75 | 0.8727 | 320.0 | 288.8 | |
| 1.03 | 1.89 | 1.11 | 2.04 | -12.43 | 224.71 | -61.25 | 105.46 | 0.8902 | 218.0 | 160.8 | |
| 0.00 | 1.37 | 0.00 | 1.55 | -12.51 | 223.44 | -62.52 | 105.32 | 0.8999 | -600.0 | -477.2 | |
| 0.00 | 0.94 | 0.00 | 1.09 | -13.15 | 222.81 | -63.14 | 105.91 | 0.9052 | -239.0 | -212.4 | |
| 0.00 | 1.72 | 0.00 | 1.98 | -12.14 | 222.72 | -63.23 | 104.80 | 0.9046 | -533.0 | -478.3 | |
| 5.41 | 10.82 | 6.30 | 12.64 | -12.55 | 222.47 | -63.48 | 105.20 | 0.9069 | -513.6 | -22.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
