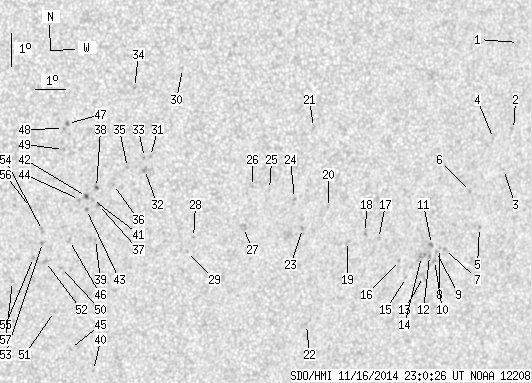

SDO HMI 2014-11-16 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.20 | 79.88 | 0.65 | 45.45 | -12.21 | 310.29 | 24.89 | 237.72 | 0.4852 | -106.8 | -1.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 23:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.83 | -7.03 | 319.27 | 33.86 | 253.82 | 0.5780 | 314.0 | 360.7 | |
| 0.00 | 0.60 | 0.00 | 0.37 | -9.66 | 319.34 | 33.94 | 249.53 | 0.5897 | 497.0 | 569.4 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -10.87 | 319.12 | 33.72 | 247.47 | 0.5925 | 621.0 | 506.4 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -9.91 | 318.65 | 33.24 | 248.74 | 0.5817 | 627.0 | 563.5 | |
| 0.00 | 0.86 | 0.00 | 0.53 | -12.62 | 318.49 | 33.09 | 244.32 | 0.5934 | 643.0 | 500.9 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -11.51 | 318.01 | 32.61 | 245.78 | 0.5813 | 714.0 | 603.0 | |
| 0.00 | 1.20 | 0.00 | 0.73 | -13.27 | 317.32 | 31.92 | 242.53 | 0.5822 | 609.0 | 449.4 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -13.23 | 317.14 | 31.73 | 242.46 | 0.5797 | 500.0 | 475.1 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -13.32 | 317.04 | 31.64 | 242.25 | 0.5790 | 694.0 | 552.0 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -13.60 | 317.01 | 31.61 | 241.79 | 0.5803 | 517.0 | 477.3 | |
| 0.00 | 1.80 | 0.00 | 1.09 | -13.10 | 316.83 | 31.43 | 242.45 | 0.5750 | 834.0 | 724.7 | |
| 0.00 | 1.37 | 0.00 | 0.83 | -13.44 | 316.81 | 31.40 | 241.90 | 0.5767 | 717.0 | 606.4 | |
| 0.00 | 2.41 | 0.00 | 1.46 | -14.08 | 316.69 | 31.29 | 240.80 | 0.5792 | 645.0 | 517.9 | |
| 0.00 | 5.24 | 0.00 | 3.16 | -13.46 | 316.53 | 31.12 | 241.66 | 0.5733 | 797.0 | 729.7 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -14.10 | 316.08 | 30.68 | 240.33 | 0.5718 | 590.0 | 501.8 | |
| 0.00 | 1.20 | 0.00 | 0.72 | -13.57 | 315.76 | 30.36 | 240.92 | 0.5643 | 788.0 | 619.6 | |
| 0.00 | 1.55 | 0.00 | 0.92 | -12.87 | 314.93 | 29.52 | 241.41 | 0.5492 | 734.0 | 534.6 | |
| 0.00 | 2.49 | 0.00 | 1.47 | -12.67 | 314.45 | 29.04 | 241.36 | 0.5418 | 730.0 | 607.1 | |
| 0.00 | 1.89 | 0.00 | 1.11 | -12.93 | 313.85 | 28.45 | 240.45 | 0.5359 | 553.0 | 418.6 | |
| 0.00 | 0.34 | 0.00 | 0.20 | -11.87 | 313.08 | 27.67 | 241.61 | 0.5187 | 674.0 | 592.8 | |
| 0.00 | 2.06 | 0.00 | 1.17 | -9.42 | 312.33 | 26.93 | 245.43 | 0.4932 | 754.0 | 516.4 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -15.48 | 312.77 | 27.37 | 235.35 | 0.5407 | 758.0 | 513.9 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -12.50 | 312.26 | 26.85 | 239.82 | 0.5123 | 766.0 | 694.9 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -11.57 | 311.89 | 26.48 | 241.12 | 0.5010 | 659.0 | 642.3 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -11.28 | 311.02 | 25.61 | 240.87 | 0.4873 | 706.0 | 529.5 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -11.17 | 310.44 | 25.03 | 240.52 | 0.4789 | 704.0 | 516.8 | |
| 0.00 | 3.87 | 0.00 | 2.19 | -12.42 | 310.26 | 24.85 | 238.06 | 0.4857 | 569.0 | 647.6 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -12.70 | 308.62 | 23.22 | 235.83 | 0.4667 | -489.0 | -278.5 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -13.12 | 308.46 | 23.06 | 234.88 | 0.4683 | -662.0 | -477.0 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -7.54 | 307.88 | 22.47 | 245.39 | 0.4186 | -691.0 | -516.2 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -10.19 | 307.00 | 21.60 | 238.84 | 0.4252 | -757.0 | -593.8 | |
| 0.00 | 2.23 | 0.00 | 1.22 | -10.58 | 306.84 | 21.43 | 237.84 | 0.4261 | -801.0 | -765.1 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -10.22 | 306.81 | 21.41 | 238.56 | 0.4228 | -867.0 | -740.5 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -8.09 | 306.36 | 20.96 | 242.62 | 0.4005 | 651.0 | 546.4 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -10.51 | 306.28 | 20.88 | 237.32 | 0.4181 | -905.0 | -668.5 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -11.02 | 305.87 | 20.46 | 235.76 | 0.4169 | -763.0 | -616.9 | |
| 0.00 | 1.55 | 0.00 | 0.84 | -11.62 | 305.43 | 20.02 | 233.98 | 0.4165 | -796.0 | -653.5 | |
| 0.43 | 1.63 | 0.23 | 0.89 | -11.10 | 305.33 | 19.92 | 234.89 | 0.4105 | -960.2 | -810.3 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -12.70 | 305.41 | 20.01 | 231.87 | 0.4262 | -837.0 | -667.7 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -16.77 | 305.74 | 20.34 | 225.25 | 0.4705 | -630.0 | -444.2 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -11.47 | 305.22 | 19.82 | 234.01 | 0.4124 | -878.0 | -737.1 | |
| 0.77 | 1.80 | 0.42 | 0.98 | -11.37 | 305.02 | 19.62 | 233.93 | 0.4090 | -1124.6 | -988.2 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -11.77 | 305.05 | 19.65 | 233.18 | 0.4130 | -893.0 | -724.5 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -11.46 | 304.81 | 19.40 | 233.46 | 0.4070 | -928.0 | -720.4 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -16.07 | 304.91 | 19.50 | 225.22 | 0.4539 | -645.0 | -465.2 | |
| 0.00 | 2.23 | 0.00 | 1.22 | -12.71 | 304.58 | 19.17 | 230.67 | 0.4160 | -857.0 | -670.6 | |
| 0.00 | 1.80 | 0.00 | 0.97 | -9.14 | 304.28 | 18.87 | 237.69 | 0.3795 | -882.0 | -781.0 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -9.29 | 304.16 | 18.76 | 237.19 | 0.3792 | -928.0 | -791.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -9.93 | 304.20 | 18.79 | 235.83 | 0.3852 | -804.0 | -673.7 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -13.54 | 304.38 | 18.98 | 228.84 | 0.4218 | -709.0 | -601.1 | |
| 0.00 | 1.29 | 0.00 | 0.71 | -14.90 | 304.28 | 18.87 | 226.25 | 0.4346 | -733.0 | -523.5 | |
| 0.00 | 1.89 | 0.00 | 1.03 | -13.35 | 303.85 | 18.45 | 228.41 | 0.4135 | -906.0 | -752.1 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -12.76 | 303.71 | 18.31 | 229.30 | 0.4059 | -968.0 | -859.9 | |
| 0.00 | 2.49 | 0.00 | 1.35 | -12.39 | 303.69 | 18.28 | 229.98 | 0.4018 | -847.0 | -723.4 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -13.22 | 303.46 | 18.06 | 228.04 | 0.4075 | -941.0 | -626.0 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -11.68 | 303.25 | 17.85 | 230.74 | 0.3894 | -792.0 | -596.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -13.95 | 302.84 | 17.44 | 225.72 | 0.4080 | -834.0 | -608.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
