SDO HMI 2014-11-17 00:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.82 | 0.00 | 4.07 | 12.17 | 273.77 | -11.08 | 278.39 | 0.2818 | 293.3 | 195.7 | |
|
previous
or next observation for the same group /

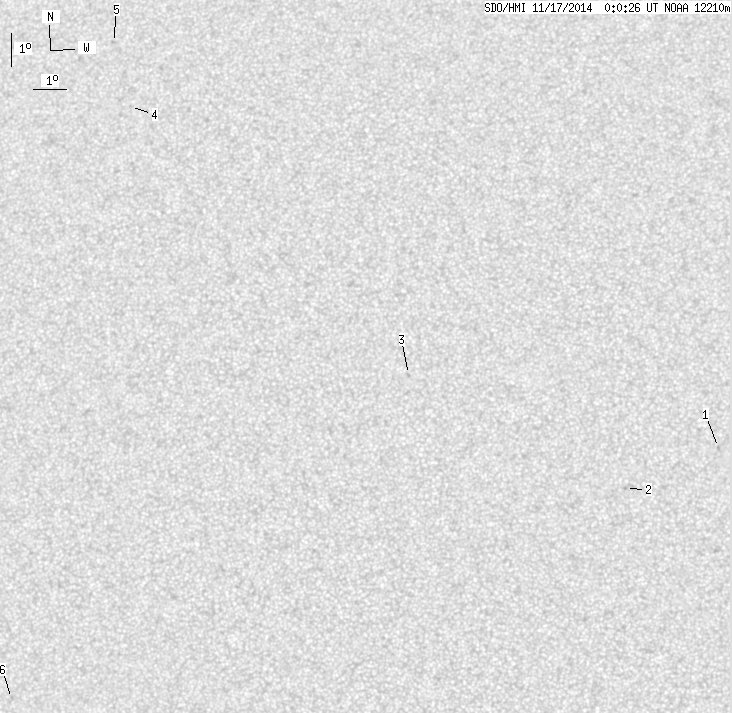

back to the solar disc SDO HMI 2014-11-17 00:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.52 | 9.93 | 286.85 | 2.00 | 344.86 | 0.1320 | 939.0 | 743.8 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 8.72 | 284.05 | -0.80 | 7.43 | 0.1071 | 874.0 | 717.6 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 12.11 | 277.45 | -7.40 | 37.38 | 0.2084 | 831.0 | 614.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 20.22 | 268.15 | -16.70 | 41.60 | 0.4079 | -750.0 | -658.5 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 22.21 | 267.35 | -17.50 | 39.57 | 0.4388 | -745.0 | -640.8 | |
| 0.00 | 1.72 | 0.00 | 0.90 | 2.36 | 265.48 | -19.38 | 90.43 | 0.3330 | 611.0 | 368.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
