SDO HMI 2014-11-17 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.29 | 0.00 | 6.74 | 16.02 | 268.18 | -16.12 | 274.16 | 0.3715 | 267.0 | 180.0 | |
|
previous
or next observation for the same group /

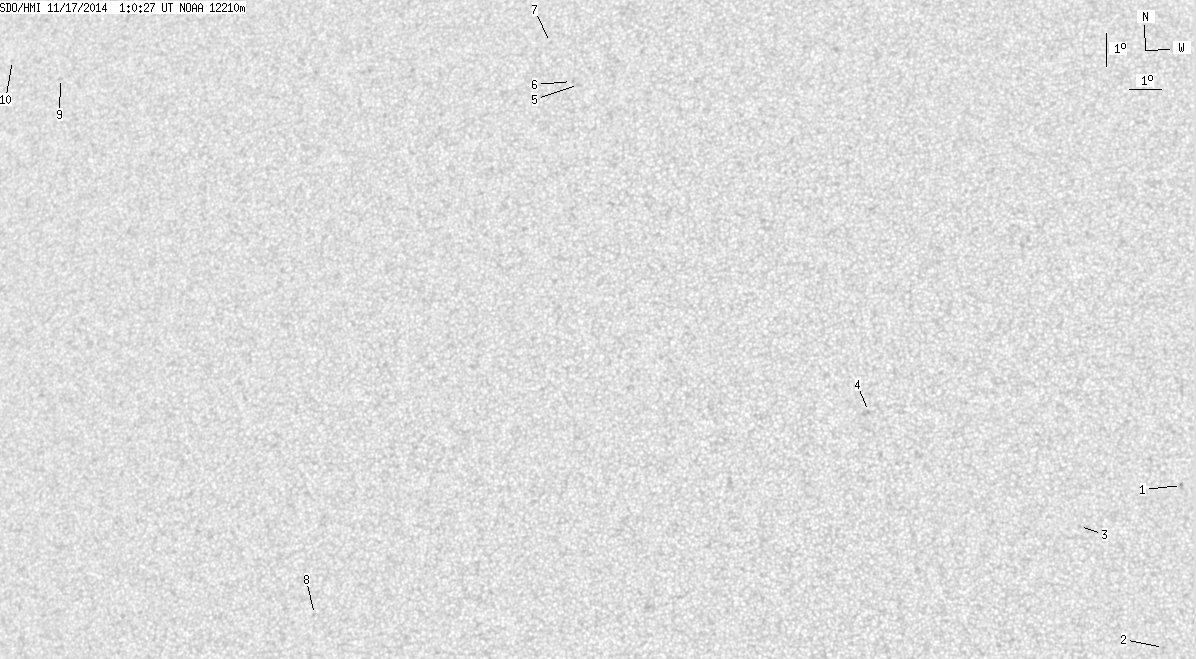

back to the solar disc SDO HMI 2014-11-17 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 0.86 | 9.92 | 286.87 | 2.57 | 340.81 | 0.1349 | 894.0 | 729.2 | |
| 0.00 | 0.69 | 0.00 | 0.34 | 5.11 | 286.30 | 2.00 | 321.11 | 0.0556 | 838.0 | 642.0 | |
| 0.00 | 1.37 | 0.00 | 0.68 | 8.71 | 283.80 | -0.50 | 4.67 | 0.1065 | 755.0 | 460.1 | |
| 0.00 | 1.20 | 0.00 | 0.61 | 12.14 | 277.39 | -6.91 | 35.45 | 0.2039 | 799.0 | 601.5 | |
| 0.00 | 1.72 | 0.00 | 0.94 | 22.09 | 267.52 | -16.78 | 38.64 | 0.4303 | -778.0 | -591.7 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 22.18 | 267.27 | -17.03 | 38.88 | 0.4338 | -629.0 | -644.4 | |
| 0.00 | 1.29 | 0.00 | 0.72 | 23.40 | 266.40 | -17.90 | 38.35 | 0.4565 | -729.0 | -576.1 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 5.89 | 260.31 | -23.99 | 81.47 | 0.4107 | 531.0 | 326.4 | |
| 0.00 | 1.55 | 0.00 | 0.99 | 21.94 | 249.01 | -35.29 | 57.73 | 0.6361 | 572.0 | 473.1 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 22.46 | 246.94 | -37.36 | 58.20 | 0.6622 | 417.0 | 385.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
