SDO HMI 2014-11-17 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.13 | 39.37 | 15.70 | 40.23 | -12.76 | 224.86 | -59.44 | 106.19 | 0.8759 | -119.5 | -45.4 | |
|
previous
or next observation for the same group /

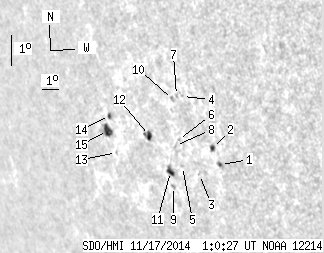

back to the solar disc SDO HMI 2014-11-17 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 1.55 | 0.63 | 1.42 | -13.34 | 228.79 | -55.51 | 107.70 | 0.8440 | 478.9 | 385.4 | |
| 1.55 | 2.84 | 1.43 | 2.61 | -12.86 | 228.52 | -55.78 | 107.07 | 0.8455 | 508.6 | 350.5 | |
| 0.00 | 0.26 | 0.00 | 0.25 | -13.70 | 227.50 | -56.80 | 107.80 | 0.8560 | 313.0 | 343.0 | |
| 0.00 | 0.95 | 0.00 | 0.89 | -11.31 | 227.37 | -56.93 | 105.03 | 0.8529 | 532.0 | 495.5 | |
| 0.00 | 0.95 | 0.00 | 0.92 | -13.49 | 226.61 | -57.69 | 107.36 | 0.8631 | -509.0 | -396.1 | |
| 0.00 | 0.69 | 0.00 | 0.66 | -12.66 | 226.69 | -57.61 | 106.43 | 0.8610 | 329.0 | 224.4 | |
| 0.00 | 1.20 | 0.00 | 1.14 | -11.30 | 227.04 | -57.26 | 104.94 | 0.8558 | 560.0 | 473.1 | |
| 0.00 | 1.37 | 0.00 | 1.34 | -12.85 | 226.45 | -57.85 | 106.60 | 0.8634 | -229.0 | -166.8 | |
| 0.00 | 2.06 | 0.00 | 2.06 | -14.14 | 225.83 | -58.47 | 107.92 | 0.8707 | -594.0 | -425.8 | |
| 0.00 | 1.89 | 0.00 | 1.81 | -11.43 | 226.77 | -57.53 | 105.04 | 0.8584 | 351.0 | 294.0 | |
| 2.84 | 5.67 | 2.83 | 5.65 | -13.67 | 225.84 | -58.46 | 107.40 | 0.8699 | -637.8 | -498.6 | |
| 2.92 | 5.67 | 2.97 | 5.77 | -12.60 | 225.02 | -59.28 | 106.02 | 0.8749 | 443.5 | 176.1 | |
| 0.00 | 0.95 | 0.00 | 1.04 | -13.22 | 222.71 | -61.59 | 106.26 | 0.8938 | -357.0 | -266.2 | |
| 1.20 | 2.41 | 1.31 | 2.62 | -12.08 | 222.74 | -61.56 | 105.01 | 0.8921 | -458.3 | -387.9 | |
| 5.93 | 10.91 | 6.53 | 12.05 | -12.55 | 222.42 | -61.89 | 105.47 | 0.8952 | -503.5 | -76.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
