SDO HMI 2014-11-17 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.03 | 54.83 | 17.07 | 53.21 | -12.76 | 225.52 | -57.68 | 106.54 | 0.8611 | -106.5 | -54.6 | |
|
previous
or next observation for the same group /

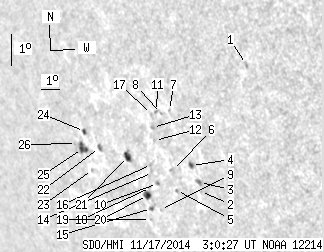

back to the solar disc SDO HMI 2014-11-17 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.15 | 0.00 | 1.74 | -9.65 | 232.17 | -51.03 | 104.33 | 0.7934 | -573.0 | -435.2 | |
| 0.00 | 0.69 | 0.00 | 0.61 | -13.65 | 228.75 | -54.45 | 108.31 | 0.8350 | 368.0 | 250.5 | |
| 0.43 | 3.01 | 0.38 | 2.69 | -13.37 | 228.80 | -54.41 | 107.99 | 0.8340 | 583.4 | 451.7 | |
| 1.38 | 2.92 | 1.23 | 2.62 | -12.86 | 228.54 | -54.66 | 107.33 | 0.8353 | 514.8 | 386.8 | |
| 0.00 | 1.12 | 0.00 | 1.03 | -13.67 | 227.46 | -55.75 | 108.01 | 0.8466 | 238.0 | 240.6 | |
| 0.00 | 2.32 | 0.00 | 2.14 | -13.06 | 227.46 | -55.75 | 107.30 | 0.8455 | 4.0 | 147.9 | |
| 0.00 | 0.77 | 0.00 | 0.70 | -11.20 | 227.88 | -55.32 | 105.23 | 0.8382 | 258.0 | 322.4 | |
| 0.00 | 0.69 | 0.00 | 0.63 | -11.31 | 227.42 | -55.78 | 105.26 | 0.8426 | 456.0 | 413.2 | |
| 0.00 | 0.52 | 0.00 | 0.49 | -14.30 | 226.33 | -56.87 | 108.47 | 0.8576 | -235.0 | -362.0 | |
| 0.00 | 1.63 | 0.00 | 1.55 | -13.49 | 226.47 | -56.73 | 107.57 | 0.8549 | -478.0 | -419.6 | |
| 0.00 | 1.46 | 0.00 | 1.34 | -11.26 | 227.17 | -56.04 | 105.14 | 0.8448 | 510.0 | 512.3 | |
| 0.00 | 1.03 | 0.00 | 0.96 | -12.16 | 226.77 | -56.43 | 106.11 | 0.8499 | 85.0 | 144.6 | |
| 0.00 | 1.72 | 0.00 | 1.60 | -11.76 | 226.79 | -56.41 | 105.65 | 0.8491 | 292.0 | 265.5 | |
| 0.00 | 0.52 | 0.00 | 0.49 | -13.16 | 226.31 | -56.89 | 107.16 | 0.8557 | -222.0 | -193.5 | |
| 0.69 | 2.32 | 0.67 | 2.25 | -14.29 | 225.82 | -57.38 | 108.33 | 0.8619 | -615.2 | -566.0 | |
| 0.00 | 1.20 | 0.00 | 1.14 | -12.91 | 226.35 | -56.86 | 106.88 | 0.8550 | -370.0 | -330.2 | |
| 0.00 | 1.20 | 0.00 | 1.12 | -11.36 | 226.86 | -56.34 | 105.20 | 0.8478 | 381.0 | 339.3 | |
| 0.00 | 1.12 | 0.00 | 1.07 | -13.63 | 226.02 | -57.18 | 107.63 | 0.8590 | -312.0 | -343.6 | |
| 0.00 | 0.69 | 0.00 | 0.67 | -14.64 | 225.62 | -57.58 | 108.68 | 0.8642 | -434.0 | -320.9 | |
| 3.27 | 4.98 | 3.17 | 4.84 | -13.89 | 225.75 | -57.45 | 107.86 | 0.8618 | -669.3 | -521.7 | |
| 3.61 | 6.96 | 3.55 | 6.83 | -12.72 | 225.05 | -58.16 | 106.38 | 0.8657 | 459.6 | 209.2 | |
| 1.03 | 3.01 | 1.06 | 3.09 | -12.51 | 223.47 | -59.74 | 105.82 | 0.8784 | -641.0 | -550.5 | |
| 0.00 | 1.12 | 0.00 | 1.18 | -13.21 | 222.75 | -60.45 | 106.46 | 0.8851 | -246.0 | -274.9 | |
| 1.38 | 2.23 | 1.44 | 2.35 | -12.05 | 222.72 | -60.48 | 105.16 | 0.8837 | -335.2 | -335.1 | |
| 5.24 | 7.73 | 5.57 | 8.23 | -12.58 | 222.39 | -60.82 | 105.69 | 0.8870 | -528.2 | -347.4 | |
| 0.00 | 1.72 | 0.00 | 1.85 | -12.44 | 222.06 | -61.14 | 105.48 | 0.8893 | 6.0 | 0.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
