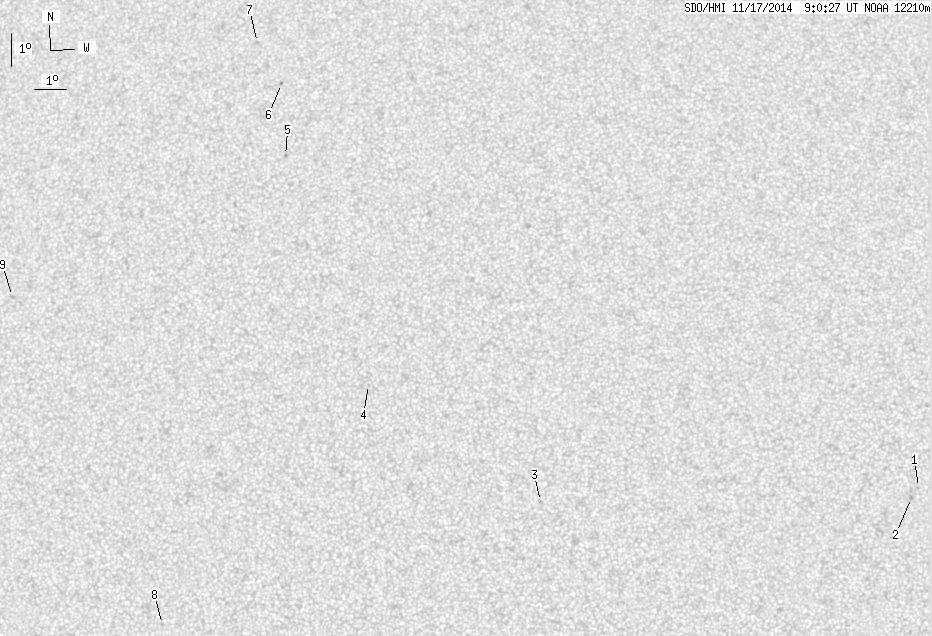

SDO HMI 2014-11-17 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.49 | 0.00 | 5.48 | 15.40 | 271.09 | -8.84 | 279.68 | 0.3065 | 264.4 | 101.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-17 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.43 | 10.05 | 287.27 | 7.35 | 315.99 | 0.1821 | 743.0 | 530.4 | |
| 0.00 | 1.46 | 0.00 | 0.73 | 9.75 | 287.05 | 7.13 | 315.67 | 0.1758 | 972.0 | 833.4 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 9.66 | 275.88 | -4.05 | 29.44 | 0.1423 | 770.0 | 450.1 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 13.15 | 270.56 | -9.37 | 40.75 | 0.2439 | 699.0 | 536.5 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 20.13 | 267.55 | -12.38 | 33.64 | 0.3650 | -827.0 | -692.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 22.38 | 267.22 | -12.70 | 30.90 | 0.3977 | -678.0 | -635.0 | |
| 0.00 | 1.89 | 0.00 | 1.03 | 23.67 | 266.30 | -13.63 | 30.86 | 0.4224 | -886.0 | -720.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 5.93 | 264.46 | -15.46 | 77.26 | 0.2731 | 665.0 | 491.8 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 15.70 | 259.08 | -20.85 | 56.16 | 0.4143 | 922.0 | 748.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
