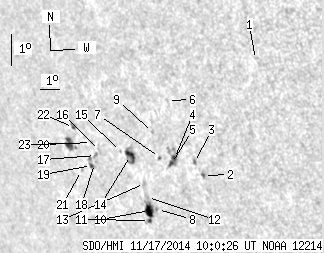

SDO HMI 2014-11-17 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.18 | 76.99 | 22.46 | 68.16 | -13.12 | 225.26 | -54.12 | 107.76 | 0.8304 | -150.9 | -103.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-17 10:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.34 | 0.00 | 0.26 | -9.64 | 232.19 | -47.19 | 105.27 | 0.7521 | -412.0 | -452.0 | |
| 0.52 | 1.46 | 0.42 | 1.19 | -13.29 | 228.93 | -50.46 | 108.94 | 0.7957 | 587.5 | 487.5 | |
| 0.00 | 1.63 | 0.00 | 1.33 | -12.90 | 228.60 | -50.78 | 108.37 | 0.7980 | 634.0 | 512.5 | |
| 1.80 | 13.23 | 1.51 | 11.07 | -12.81 | 227.65 | -51.73 | 108.00 | 0.8072 | 645.5 | 391.0 | |
| 1.55 | -4.00 | 1.30 | -4.00 | -12.97 | 227.46 | -51.93 | 108.14 | 0.8095 | 456.0 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.21 | -11.04 | 227.79 | -51.59 | 105.87 | 0.8018 | 340.0 | 368.8 | |
| 0.34 | 1.20 | 0.29 | 1.02 | -12.81 | 226.91 | -52.48 | 107.79 | 0.8144 | 58.5 | 96.3 | |
| 0.00 | 1.80 | 0.00 | 1.57 | -14.43 | 226.28 | -53.10 | 109.56 | 0.8241 | -648.0 | -548.3 | |
| 0.00 | 1.12 | 0.00 | 0.95 | -12.05 | 226.78 | -52.60 | 106.84 | 0.8140 | 393.0 | 314.2 | |
| 7.13 | 13.66 | 6.27 | 12.01 | -14.48 | 225.85 | -53.53 | 109.50 | 0.8282 | -664.5 | -531.8 | |
| 1.03 | -10.00 | 0.91 | -10.00 | -14.79 | 225.74 | -53.64 | 109.83 | 0.8299 | -597.1 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.13 | -14.08 | 225.89 | -53.49 | 109.03 | 0.8269 | -419.0 | -405.7 | |
| 0.00 | 1.98 | 0.00 | 1.73 | -13.65 | 225.88 | -53.50 | 108.52 | 0.8261 | -308.0 | -299.7 | |
| 5.76 | 12.89 | 5.06 | 11.34 | -12.80 | 225.43 | -53.95 | 107.40 | 0.8285 | 576.1 | 282.1 | |
| 0.00 | 0.69 | 0.00 | 0.61 | -12.70 | 224.94 | -54.44 | 107.16 | 0.8328 | 212.0 | 140.8 | |
| 0.00 | 3.27 | 0.00 | 2.99 | -12.71 | 223.81 | -55.57 | 106.91 | 0.8431 | -451.0 | -483.4 | |
| 0.00 | 1.89 | 0.00 | 1.74 | -12.87 | 223.54 | -55.84 | 107.03 | 0.8458 | -725.0 | -607.1 | |
| 0.00 | 0.77 | 0.00 | 0.72 | -13.12 | 223.40 | -55.98 | 107.29 | 0.8476 | -543.0 | -558.8 | |
| 1.03 | 4.73 | 0.96 | 4.41 | -13.19 | 223.21 | -56.17 | 107.33 | 0.8494 | -489.9 | -489.3 | |
| 0.00 | 0.95 | 0.00 | 0.87 | -12.48 | 223.46 | -55.93 | 106.56 | 0.8459 | -488.0 | -416.5 | |
| 0.00 | 1.12 | 0.00 | 1.06 | -13.37 | 222.59 | -56.79 | 107.39 | 0.8551 | -357.0 | -332.8 | |
| 0.52 | 3.09 | 0.49 | 2.91 | -12.05 | 222.60 | -56.78 | 105.87 | 0.8527 | -490.3 | -406.5 | |
| 5.50 | 8.42 | 5.25 | 8.04 | -12.56 | 222.21 | -57.17 | 106.37 | 0.8570 | -478.4 | -309.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
