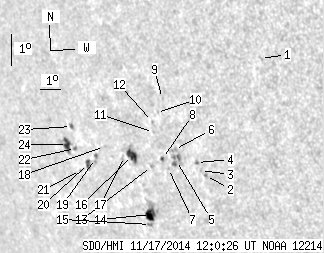

SDO HMI 2014-11-17 12:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.45 | 76.27 | 20.58 | 65.66 | -13.13 | 225.33 | -52.96 | 108.07 | 0.8193 | -107.8 | -67.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-17 12:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 1.07 | -9.60 | 232.25 | -46.03 | 105.54 | 0.7389 | -578.0 | -506.2 | |
| 0.00 | 1.29 | 0.00 | 1.02 | -13.28 | 228.94 | -49.35 | 109.25 | 0.7845 | 645.0 | 491.5 | |
| 0.00 | 0.69 | 0.00 | 0.55 | -13.13 | 228.74 | -49.54 | 109.01 | 0.7861 | 457.0 | 430.5 | |
| 0.00 | 1.37 | 0.00 | 1.10 | -12.89 | 228.62 | -49.67 | 108.68 | 0.7867 | 677.0 | 545.8 | |
| 0.00 | 8.25 | 0.00 | 6.72 | -12.86 | 227.68 | -50.61 | 108.37 | 0.7962 | 556.0 | 477.1 | |
| 0.00 | 2.49 | 0.00 | 2.03 | -12.53 | 227.67 | -50.62 | 107.95 | 0.7954 | 590.0 | 443.8 | |
| 0.00 | 1.03 | 0.00 | 0.85 | -13.13 | 227.21 | -51.08 | 108.55 | 0.8015 | 104.0 | 85.5 | |
| 0.77 | 1.80 | 0.64 | 1.49 | -12.83 | 227.01 | -51.28 | 108.13 | 0.8028 | 121.4 | 68.3 | |
| 0.00 | 0.86 | 0.00 | 0.70 | -10.98 | 227.50 | -50.79 | 105.99 | 0.7936 | 401.0 | 271.4 | |
| 0.00 | 0.34 | 0.00 | 0.28 | -11.42 | 227.10 | -51.19 | 106.43 | 0.7986 | 381.0 | 397.8 | |
| 0.00 | 0.69 | 0.00 | 0.57 | -12.04 | 226.79 | -51.50 | 107.11 | 0.8031 | 399.0 | 348.5 | |
| 0.00 | 0.94 | 0.00 | 0.78 | -11.70 | 226.83 | -51.46 | 106.71 | 0.8019 | 334.0 | 353.6 | |
| 0.00 | 1.37 | 0.00 | 1.15 | -13.09 | 226.39 | -51.90 | 108.29 | 0.8095 | -471.0 | -368.8 | |
| 7.65 | 16.49 | 6.55 | 14.10 | -14.59 | 225.85 | -52.43 | 109.93 | 0.8182 | -717.3 | -530.7 | |
| 0.00 | 2.06 | 0.00 | 1.77 | -14.91 | 225.74 | -52.54 | 110.27 | 0.8200 | -571.0 | -508.2 | |
| 6.87 | 11.43 | 5.87 | 9.77 | -12.79 | 225.53 | -52.76 | 107.69 | 0.8171 | 587.4 | 288.5 | |
| 0.00 | 0.69 | 0.00 | 0.59 | -12.83 | 225.11 | -53.18 | 107.63 | 0.8212 | -11.0 | -15.8 | |
| 0.00 | 0.86 | 0.00 | 0.76 | -12.56 | 224.16 | -54.13 | 107.07 | 0.8296 | -386.0 | -368.3 | |
| 0.00 | 2.75 | 0.00 | 2.46 | -12.95 | 223.56 | -54.73 | 107.39 | 0.8359 | -534.0 | -573.0 | |
| 2.06 | 4.12 | 1.87 | 3.74 | -13.12 | 223.13 | -55.16 | 107.48 | 0.8402 | -589.3 | -484.7 | |
| 0.00 | 0.86 | 0.00 | 0.79 | -13.36 | 222.62 | -55.67 | 107.63 | 0.8452 | -384.0 | -337.6 | |
| 0.43 | 1.63 | 0.39 | 1.50 | -12.68 | 222.58 | -55.71 | 106.84 | 0.8443 | -635.4 | -558.1 | |
| 0.77 | 1.89 | 0.71 | 1.73 | -12.01 | 222.58 | -55.71 | 106.05 | 0.8430 | -563.9 | -440.9 | |
| 4.90 | 10.91 | 4.55 | 10.14 | -12.57 | 222.18 | -56.11 | 106.62 | 0.8477 | -485.6 | -125.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
