SDO HMI 2014-11-17 13:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.36 | 74.73 | 20.23 | 63.63 | -13.07 | 225.23 | -52.51 | 108.11 | 0.8148 | -164.8 | -139.5 | |
|
previous
or next observation for the same group /

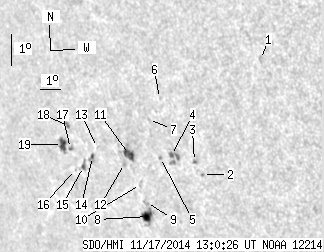

back to the solar disc SDO HMI 2014-11-17 13:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.58 | 0.00 | 1.87 | -9.65 | 232.31 | -45.43 | 105.77 | 0.7322 | -598.0 | -495.3 | |
| 0.00 | 1.12 | 0.00 | 0.88 | -13.27 | 228.91 | -48.83 | 109.40 | 0.7790 | 597.0 | 505.8 | |
| 0.34 | 1.55 | 0.27 | 1.22 | -12.88 | 228.65 | -49.09 | 108.83 | 0.7807 | 654.0 | 508.5 | |
| 0.94 | 9.02 | 0.76 | 7.25 | -12.73 | 227.60 | -50.14 | 108.34 | 0.7911 | 456.3 | 504.7 | |
| 0.00 | 1.37 | 0.00 | 1.12 | -12.81 | 227.05 | -50.69 | 108.28 | 0.7968 | 331.0 | 190.2 | |
| 0.00 | 0.60 | 0.00 | 0.48 | -10.99 | 227.48 | -50.26 | 106.15 | 0.7882 | 390.0 | 274.0 | |
| 0.00 | 1.12 | 0.00 | 0.91 | -11.66 | 226.78 | -50.96 | 106.79 | 0.7968 | 340.0 | 330.3 | |
| 7.22 | 13.14 | 6.11 | 11.13 | -14.67 | 225.84 | -51.90 | 110.18 | 0.8133 | -722.4 | -529.6 | |
| 0.00 | 2.58 | 0.00 | 2.17 | -14.23 | 225.93 | -51.81 | 109.68 | 0.8113 | -348.0 | -430.6 | |
| 0.00 | 2.66 | 0.00 | 2.24 | -13.68 | 225.81 | -51.93 | 108.99 | 0.8111 | -341.0 | -360.7 | |
| 6.44 | 11.60 | 5.44 | 9.79 | -12.77 | 225.54 | -52.20 | 107.81 | 0.8116 | 623.5 | 251.3 | |
| 0.00 | 3.09 | 0.00 | 2.63 | -13.06 | 225.21 | -52.53 | 108.07 | 0.8155 | -303.0 | -182.3 | |
| 0.00 | 0.94 | 0.00 | 0.83 | -12.61 | 223.97 | -53.77 | 107.22 | 0.8264 | -685.0 | -560.3 | |
| 1.03 | 4.29 | 0.91 | 3.80 | -12.90 | 223.61 | -54.13 | 107.48 | 0.8303 | -618.9 | -555.4 | |
| 1.03 | 4.38 | 0.93 | 3.93 | -13.23 | 223.03 | -54.71 | 107.72 | 0.8363 | -587.5 | -481.0 | |
| 0.00 | 0.86 | 0.00 | 0.78 | -13.34 | 222.57 | -55.17 | 107.73 | 0.8407 | -319.0 | -303.4 | |
| 0.69 | 2.32 | 0.62 | 2.10 | -12.70 | 222.52 | -55.22 | 106.97 | 0.8399 | -597.2 | -529.7 | |
| 0.43 | 2.66 | 0.39 | 2.40 | -12.02 | 222.63 | -55.11 | 106.20 | 0.8376 | -562.6 | -409.5 | |
| 5.24 | 8.85 | 4.80 | 8.10 | -12.59 | 222.12 | -55.62 | 106.75 | 0.8433 | -472.8 | -253.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
