SDO HMI 2014-11-17 14:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.29 | 72.84 | 18.12 | 61.01 | -12.99 | 225.37 | -51.82 | 108.20 | 0.8079 | -122.9 | -112.4 | |
|
previous
or next observation for the same group /

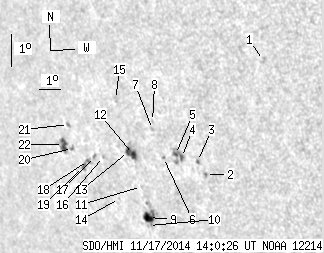

back to the solar disc SDO HMI 2014-11-17 14:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.75 | 0.00 | 1.97 | -9.69 | 232.27 | -44.92 | 105.98 | 0.7264 | -664.0 | -544.3 | |
| 0.00 | 1.89 | 0.00 | 1.47 | -13.28 | 228.92 | -48.27 | 109.59 | 0.7733 | 632.0 | 454.2 | |
| 0.34 | 1.20 | 0.27 | 0.94 | -12.89 | 228.66 | -48.54 | 109.01 | 0.7750 | 636.8 | 542.7 | |
| 1.03 | 10.65 | 0.82 | 8.46 | -12.79 | 227.94 | -49.25 | 108.67 | 0.7821 | 721.9 | 462.1 | |
| 0.86 | -4.00 | 0.68 | -4.00 | -12.70 | 227.68 | -49.51 | 108.49 | 0.7846 | 482.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.90 | -12.82 | 227.08 | -50.11 | 108.45 | 0.7910 | 354.0 | 199.3 | |
| 0.00 | 1.55 | 0.00 | 1.25 | -11.97 | 226.78 | -50.41 | 107.32 | 0.7920 | 405.0 | 280.9 | |
| 0.00 | 0.69 | 0.00 | 0.55 | -11.72 | 226.85 | -50.35 | 107.04 | 0.7907 | 317.0 | 305.9 | |
| 5.93 | 14.43 | 4.97 | 12.06 | -14.71 | 225.78 | -51.42 | 110.37 | 0.8088 | -697.4 | -580.5 | |
| 0.00 | 0.26 | 0.00 | 0.22 | -14.96 | 225.69 | -51.50 | 110.65 | 0.8102 | -477.0 | -487.3 | |
| 0.00 | 0.69 | 0.00 | 0.57 | -13.76 | 225.74 | -51.45 | 109.21 | 0.8067 | -584.0 | -510.6 | |
| 3.69 | 12.11 | 3.07 | 10.08 | -12.78 | 225.64 | -51.55 | 107.99 | 0.8053 | 735.9 | 369.0 | |
| 2.83 | -12.00 | 2.37 | -12.00 | -12.69 | 225.42 | -51.77 | 107.83 | 0.8073 | 590.1 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.59 | -14.17 | 224.50 | -52.69 | 109.36 | 0.8195 | -412.0 | -400.1 | |
| 0.00 | 2.92 | 0.00 | 2.43 | -11.11 | 225.21 | -51.98 | 105.86 | 0.8059 | 84.0 | 107.6 | |
| 0.00 | 1.20 | 0.00 | 1.04 | -12.89 | 224.10 | -53.09 | 107.73 | 0.8205 | -463.0 | -442.7 | |
| 0.00 | 1.63 | 0.00 | 1.42 | -12.91 | 223.64 | -53.55 | 107.63 | 0.8249 | -597.0 | -550.5 | |
| 0.69 | 5.75 | 0.60 | 5.08 | -13.05 | 223.28 | -53.91 | 107.70 | 0.8285 | -653.0 | -559.4 | |
| 1.20 | -18.00 | 1.07 | -18.00 | -13.24 | 222.96 | -54.23 | 107.85 | 0.8319 | -563.4 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.84 | -12.70 | 222.55 | -54.64 | 107.12 | 0.8346 | -662.0 | -582.0 | |
| 0.00 | 2.15 | 0.00 | 1.91 | -11.97 | 222.57 | -54.62 | 106.25 | 0.8330 | -623.0 | -497.9 | |
| 4.72 | 9.10 | 4.27 | 8.23 | -12.60 | 222.11 | -55.08 | 106.89 | 0.8384 | -511.3 | -186.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
