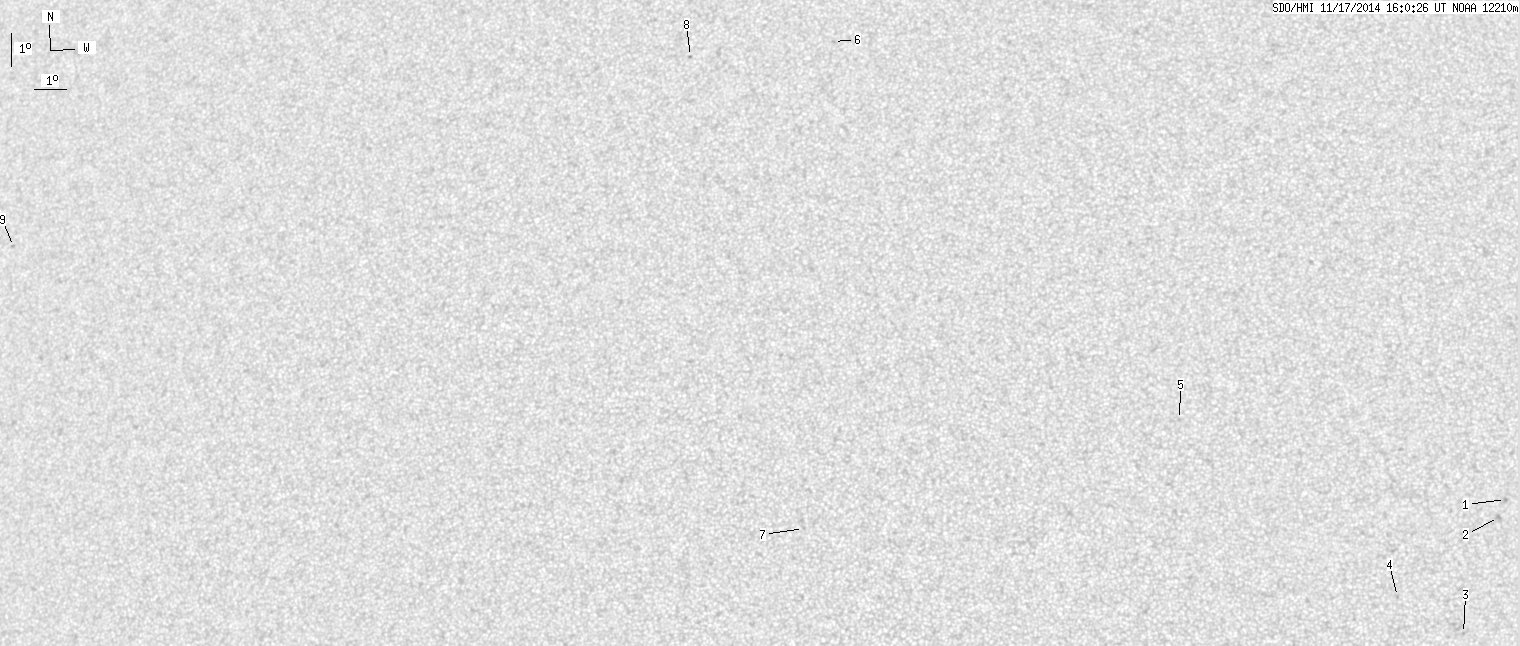

SDO HMI 2014-11-17 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.30 | 0.00 | 7.02 | 12.49 | 273.29 | -2.80 | 201.83 | 0.2975 | 446.0 | 422.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-17 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 0.92 | 9.69 | 287.14 | 11.05 | 303.49 | 0.2275 | 896.0 | 686.2 | |
| 0.00 | 3.26 | 0.00 | 1.66 | 9.16 | 286.90 | 10.81 | 301.98 | 0.2194 | 830.0 | 718.7 | |
| 0.00 | 1.37 | 0.00 | 0.69 | 5.72 | 285.76 | 9.67 | 288.44 | 0.1769 | 1017.0 | 743.2 | |
| 0.00 | 0.69 | 0.00 | 0.34 | 6.83 | 283.79 | 7.70 | 299.38 | 0.1533 | 842.0 | 746.5 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 12.15 | 277.28 | 1.19 | 353.02 | 0.1685 | 818.0 | 577.0 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 23.77 | 266.13 | -9.96 | 23.61 | 0.3971 | -816.0 | -666.5 | |
| 0.00 | 1.37 | 0.00 | 0.70 | 8.86 | 265.94 | -10.15 | 57.62 | 0.2071 | 631.0 | 506.0 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 23.25 | 261.45 | -14.64 | 33.23 | 0.4257 | -791.0 | -631.7 | |
| 0.00 | 1.46 | 0.00 | 0.94 | 16.93 | 238.55 | -37.54 | 66.21 | 0.6393 | 587.0 | 517.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
