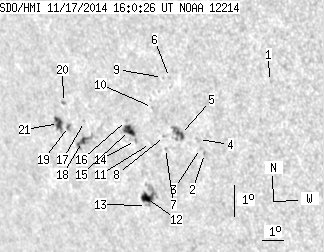

SDO HMI 2014-11-17 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.68 | 75.54 | 21.38 | 62.13 | -13.21 | 225.14 | -50.95 | 108.72 | 0.7999 | -59.4 | -106.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-17 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.30 | -11.00 | 232.25 | -43.85 | 108.10 | 0.7177 | -439.0 | -438.8 | |
| 0.00 | 1.20 | 0.00 | 0.92 | -13.31 | 228.91 | -47.18 | 109.98 | 0.7619 | 573.0 | 529.4 | |
| 0.00 | 0.94 | 0.00 | 0.72 | -13.16 | 228.76 | -47.33 | 109.74 | 0.7630 | 560.0 | 433.8 | |
| 0.00 | 2.23 | 0.00 | 1.70 | -12.88 | 228.74 | -47.35 | 109.39 | 0.7624 | 694.0 | 516.1 | |
| 3.01 | 10.30 | 2.32 | 7.99 | -12.75 | 227.96 | -48.13 | 108.97 | 0.7703 | 717.1 | 469.8 | |
| 0.00 | 1.12 | 0.00 | 0.86 | -11.02 | 227.87 | -48.22 | 106.74 | 0.7667 | 488.0 | 451.6 | |
| 0.00 | 0.77 | 0.00 | 0.61 | -13.21 | 227.15 | -48.94 | 109.29 | 0.7801 | 260.0 | 203.7 | |
| 0.00 | 0.86 | 0.00 | 0.67 | -12.84 | 227.20 | -48.89 | 108.84 | 0.7785 | 345.0 | 275.6 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -11.03 | 227.55 | -48.54 | 106.66 | 0.7701 | 419.0 | 406.2 | |
| 0.00 | 1.03 | 0.00 | 0.81 | -11.97 | 226.87 | -49.22 | 107.65 | 0.7797 | 390.0 | 374.0 | |
| 0.00 | 0.77 | 0.00 | 0.62 | -13.08 | 226.48 | -49.61 | 108.92 | 0.7866 | -579.0 | -540.4 | |
| 6.01 | 16.32 | 4.92 | 13.30 | -14.80 | 225.77 | -50.32 | 110.81 | 0.7983 | -770.4 | -535.0 | |
| 0.00 | 0.94 | 0.00 | 0.78 | -15.02 | 225.70 | -50.39 | 111.06 | 0.7996 | -566.0 | -484.8 | |
| 0.00 | 1.55 | 0.00 | 1.25 | -13.01 | 225.78 | -50.31 | 108.63 | 0.7935 | 393.0 | 290.7 | |
| 6.44 | 8.84 | 5.23 | 7.19 | -12.71 | 225.58 | -50.51 | 108.21 | 0.7948 | 697.9 | 427.0 | |
| 0.00 | 1.46 | 0.00 | 1.18 | -12.41 | 225.52 | -50.57 | 107.82 | 0.7946 | 25.0 | 57.7 | |
| 0.00 | 0.94 | 0.00 | 0.80 | -12.51 | 223.42 | -52.67 | 107.38 | 0.8156 | -383.0 | -373.5 | |
| 3.78 | 11.42 | 3.25 | 9.80 | -13.14 | 223.13 | -52.96 | 108.05 | 0.8197 | -667.4 | -511.3 | |
| 0.77 | 2.23 | 0.67 | 1.94 | -12.70 | 222.55 | -53.54 | 107.38 | 0.8243 | -695.9 | -590.8 | |
| 0.00 | 1.37 | 0.00 | 1.19 | -11.97 | 222.52 | -53.57 | 106.50 | 0.8231 | -597.0 | -519.1 | |
| 5.67 | 10.48 | 4.99 | 9.23 | -12.63 | 222.06 | -54.03 | 107.17 | 0.8288 | -527.6 | -164.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
