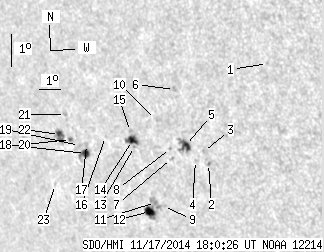

SDO HMI 2014-11-17 18:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.76 | 78.90 | 20.73 | 63.33 | -13.24 | 225.24 | -49.75 | 109.10 | 0.7879 | -51.5 | -134.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-17 18:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.30 | -10.12 | 232.05 | -42.94 | 107.21 | 0.7044 | -495.0 | -466.0 | |
| 0.00 | 1.20 | 0.00 | 0.90 | -13.27 | 228.88 | -46.11 | 110.30 | 0.7502 | 692.0 | 589.2 | |
| 0.00 | 1.03 | 0.00 | 0.77 | -12.91 | 228.75 | -46.24 | 109.79 | 0.7505 | 631.0 | 571.4 | |
| 0.00 | 0.94 | 0.00 | 0.71 | -13.20 | 228.32 | -46.66 | 110.01 | 0.7560 | 403.0 | 318.5 | |
| 5.15 | 12.54 | 3.90 | 9.50 | -12.75 | 227.99 | -47.00 | 109.33 | 0.7582 | 710.7 | 433.3 | |
| 0.00 | 1.89 | 0.00 | 1.42 | -11.04 | 227.89 | -47.10 | 107.10 | 0.7545 | 555.0 | 450.7 | |
| 0.00 | 1.37 | 0.00 | 1.06 | -13.17 | 227.25 | -47.74 | 109.62 | 0.7673 | 403.0 | 300.6 | |
| 0.00 | 0.86 | 0.00 | 0.66 | -12.86 | 227.28 | -47.70 | 109.24 | 0.7661 | 514.0 | 372.1 | |
| 0.00 | 2.06 | 0.00 | 1.62 | -14.68 | 226.46 | -48.53 | 111.24 | 0.7800 | -676.0 | -565.6 | |
| 0.00 | 0.77 | 0.00 | 0.60 | -11.99 | 226.82 | -48.17 | 107.99 | 0.7686 | 462.0 | 413.1 | |
| 0.00 | 6.61 | 0.00 | 5.24 | -14.57 | 226.12 | -48.87 | 110.99 | 0.7831 | -469.0 | -533.8 | |
| 6.70 | 11.42 | 5.36 | 9.13 | -14.86 | 225.75 | -49.24 | 111.23 | 0.7877 | -707.4 | -520.7 | |
| 0.00 | 1.12 | 0.00 | 0.89 | -12.86 | 225.62 | -49.36 | 108.72 | 0.7834 | 406.0 | 371.9 | |
| 5.84 | 8.50 | 4.63 | 6.75 | -12.68 | 225.58 | -49.41 | 108.48 | 0.7834 | 742.5 | 514.1 | |
| 0.00 | 1.46 | 0.00 | 1.16 | -12.40 | 225.56 | -49.43 | 108.13 | 0.7829 | -6.0 | 47.6 | |
| 0.00 | 0.69 | 0.00 | 0.56 | -12.60 | 224.32 | -50.67 | 108.01 | 0.7961 | -583.0 | -543.4 | |
| 0.00 | 1.72 | 0.00 | 1.43 | -12.88 | 223.31 | -51.68 | 108.08 | 0.8067 | -310.0 | -266.5 | |
| 4.29 | 8.76 | 3.60 | 7.35 | -13.16 | 223.18 | -51.81 | 108.38 | 0.8087 | -731.8 | -482.7 | |
| 0.00 | 1.29 | 0.00 | 1.08 | -12.92 | 222.95 | -52.04 | 108.03 | 0.8104 | -313.0 | -299.3 | |
| 0.77 | 2.06 | 0.66 | 1.75 | -12.75 | 222.55 | -52.43 | 107.72 | 0.8138 | -720.0 | -617.9 | |
| 0.00 | 1.97 | 0.00 | 1.67 | -11.99 | 222.52 | -52.46 | 106.79 | 0.8125 | -652.0 | -443.1 | |
| 3.01 | 9.44 | 2.58 | 8.10 | -12.62 | 222.04 | -52.95 | 107.43 | 0.8185 | -581.7 | -365.7 | |
| 0.00 | 0.77 | 0.00 | 0.68 | -14.18 | 221.33 | -53.66 | 109.10 | 0.8286 | -313.0 | -294.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
