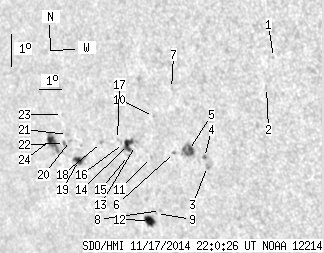

SDO HMI 2014-11-17 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.52 | 75.24 | 21.87 | 57.79 | -13.07 | 225.10 | -47.67 | 109.53 | 0.7657 | -79.1 | -126.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-17 22:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.52 | -9.85 | 232.19 | -40.58 | 107.66 | 0.6750 | -301.0 | -345.7 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -10.77 | 231.76 | -41.01 | 108.81 | 0.6834 | -463.0 | -426.6 | |
| 0.00 | 2.32 | 0.00 | 1.66 | -13.27 | 228.83 | -43.94 | 111.09 | 0.7262 | 660.0 | 564.5 | |
| 0.43 | 1.55 | 0.31 | 1.11 | -13.00 | 228.77 | -44.01 | 110.70 | 0.7260 | 709.4 | 547.9 | |
| 6.61 | 11.94 | 4.79 | 8.66 | -12.81 | 228.13 | -44.64 | 110.21 | 0.7325 | 695.5 | 454.0 | |
| 0.00 | 1.29 | 0.00 | 0.94 | -12.89 | 227.51 | -45.27 | 110.09 | 0.7397 | 396.0 | 305.2 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -10.92 | 227.80 | -44.97 | 107.60 | 0.7304 | 472.0 | 385.1 | |
| 0.00 | 1.03 | 0.00 | 0.78 | -14.71 | 226.42 | -46.35 | 112.04 | 0.7573 | -682.0 | -592.7 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -14.81 | 226.22 | -46.56 | 112.09 | 0.7599 | -636.0 | -594.6 | |
| 0.00 | 0.94 | 0.00 | 0.70 | -11.81 | 226.84 | -45.94 | 108.44 | 0.7438 | 576.0 | 423.5 | |
| 0.00 | 0.77 | 0.00 | 0.58 | -13.07 | 226.45 | -46.32 | 109.96 | 0.7518 | -572.0 | -502.9 | |
| 6.96 | 9.19 | 5.32 | 7.03 | -15.04 | 225.84 | -46.94 | 112.24 | 0.7646 | -786.1 | -513.3 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -12.73 | 225.83 | -46.95 | 109.30 | 0.7575 | 482.0 | 556.7 | |
| 6.01 | 11.16 | 4.57 | 8.48 | -12.71 | 225.52 | -47.25 | 109.17 | 0.7608 | 727.1 | 525.5 | |
| 0.00 | 0.94 | 0.00 | 0.72 | -13.05 | 225.43 | -47.34 | 109.58 | 0.7627 | 296.0 | 231.7 | |
| 0.00 | 0.52 | 0.00 | 0.39 | -12.68 | 225.30 | -47.47 | 109.07 | 0.7631 | 384.0 | 348.8 | |
| 0.00 | 1.03 | 0.00 | 0.79 | -12.57 | 225.06 | -47.72 | 108.85 | 0.7653 | 303.0 | 200.7 | |
| 0.00 | 1.37 | 0.00 | 1.07 | -12.68 | 224.30 | -48.48 | 108.76 | 0.7737 | -608.0 | -452.4 | |
| 4.47 | 8.07 | 3.58 | 6.45 | -13.28 | 223.06 | -49.71 | 109.12 | 0.7881 | -795.7 | -643.9 | |
| 0.00 | 1.55 | 0.00 | 1.24 | -12.67 | 222.85 | -49.92 | 108.31 | 0.7886 | -756.0 | -579.9 | |
| 0.00 | 1.72 | 0.00 | 1.38 | -12.49 | 222.76 | -50.02 | 108.06 | 0.7891 | -612.0 | -512.2 | |
| 0.00 | 1.98 | 0.00 | 1.60 | -12.78 | 222.54 | -50.24 | 108.34 | 0.7921 | -652.0 | -612.0 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -11.88 | 222.68 | -50.09 | 107.28 | 0.7885 | -375.0 | -382.0 | |
| 4.04 | 14.00 | 3.30 | 11.44 | -12.71 | 221.88 | -50.89 | 108.07 | 0.7985 | -514.2 | -462.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
