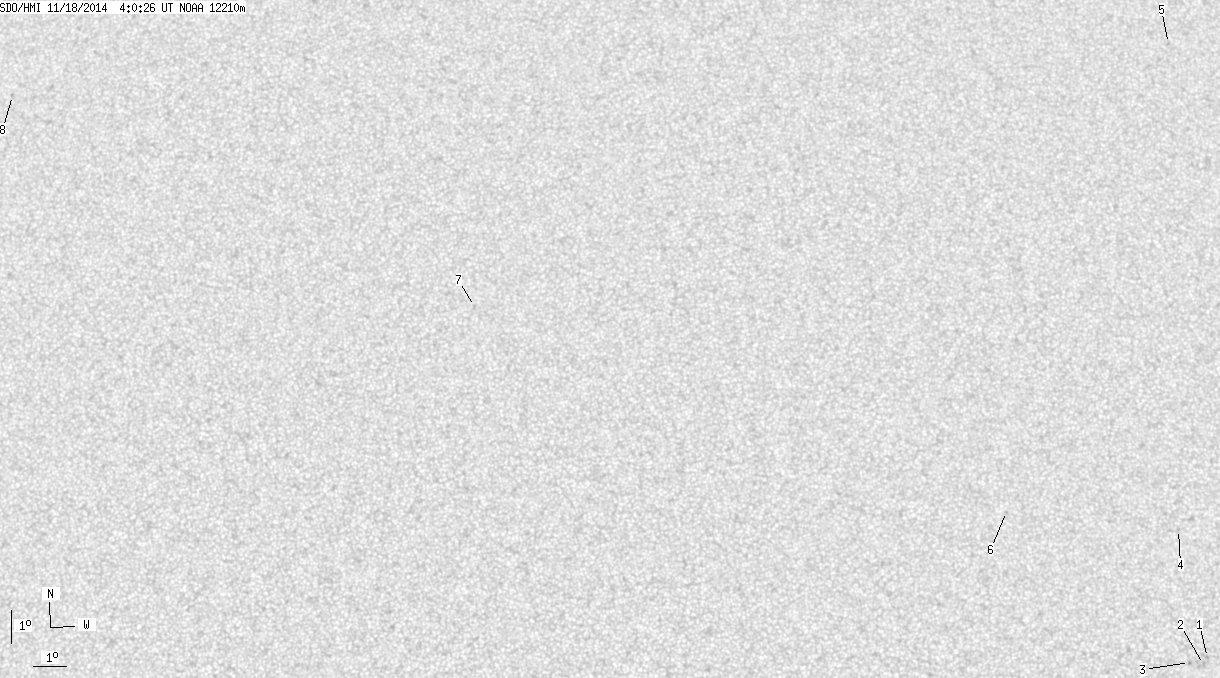

SDO HMI 2014-11-18 04:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.74 | 0.00 | 5.66 | 12.84 | 277.97 | 8.50 | 226.19 | 0.3320 | 588.0 | 490.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-18 04:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.62 | 5.91 | 286.13 | 16.65 | 282.14 | 0.2929 | 765.0 | 670.9 | |
| 0.00 | 2.15 | 0.00 | 1.11 | 5.70 | 286.00 | 16.52 | 281.53 | 0.2901 | 697.0 | 657.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 5.77 | 285.56 | 16.09 | 282.03 | 0.2832 | 860.0 | 770.6 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 9.73 | 285.38 | 15.91 | 295.28 | 0.3001 | 829.0 | 613.5 | |
| 0.00 | 1.46 | 0.00 | 0.82 | 24.66 | 286.45 | 16.98 | 325.00 | 0.4646 | -753.0 | -467.6 | |
| 0.00 | 0.69 | 0.00 | 0.35 | 10.33 | 280.09 | 10.61 | 307.09 | 0.2282 | 745.0 | 602.8 | |
| 0.00 | 1.55 | 0.00 | 0.79 | 16.57 | 263.86 | -5.62 | 21.08 | 0.2620 | 800.0 | 630.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 22.99 | 248.28 | -21.19 | 43.32 | 0.4870 | 761.0 | 605.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
