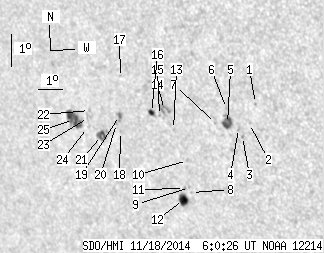

SDO HMI 2014-11-18 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.39 | 80.26 | 23.38 | 57.32 | -13.31 | 224.76 | -43.62 | 111.27 | 0.7221 | -219.5 | -51.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-18 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.57 | -12.28 | 229.59 | -38.79 | 111.85 | 0.6619 | 597.0 | 524.0 | |
| 0.00 | 0.60 | 0.00 | 0.40 | -12.91 | 229.24 | -39.14 | 112.58 | 0.6687 | 518.0 | 418.6 | |
| 0.00 | 1.12 | 0.00 | 0.75 | -13.32 | 228.88 | -39.50 | 112.99 | 0.6747 | 634.0 | 484.9 | |
| 0.00 | 1.55 | 0.00 | 1.03 | -13.07 | 228.77 | -39.61 | 112.60 | 0.6750 | 762.0 | 488.4 | |
| 5.84 | 10.82 | 3.93 | 7.28 | -12.93 | 228.36 | -40.02 | 112.21 | 0.6793 | 748.8 | 547.0 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -12.47 | 228.41 | -39.97 | 111.58 | 0.6769 | 562.0 | 484.6 | |
| 0.00 | 1.03 | 0.00 | 0.70 | -12.94 | 227.88 | -40.50 | 112.01 | 0.6851 | 440.0 | 325.7 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -15.12 | 226.42 | -41.96 | 114.31 | 0.7107 | -598.0 | -503.1 | |
| 0.00 | 0.95 | 0.00 | 0.66 | -14.96 | 226.37 | -42.01 | 114.09 | 0.7106 | -681.0 | -582.8 | |
| 0.00 | 1.20 | 0.00 | 0.84 | -14.12 | 226.49 | -41.89 | 113.01 | 0.7059 | -661.0 | -531.4 | |
| 0.00 | 1.12 | 0.00 | 0.79 | -15.00 | 226.16 | -42.23 | 114.04 | 0.7131 | -585.0 | -502.5 | |
| 6.62 | 9.19 | 4.68 | 6.50 | -15.35 | 226.03 | -42.35 | 114.44 | 0.7160 | -805.6 | -502.0 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -13.18 | 226.12 | -42.26 | 111.58 | 0.7065 | 394.0 | 273.8 | |
| 0.00 | 6.96 | 0.00 | 4.86 | -12.57 | 225.88 | -42.50 | 110.66 | 0.7071 | 609.0 | 651.2 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -12.76 | 225.63 | -42.75 | 110.82 | 0.7106 | 481.0 | 421.0 | |
| 2.06 | 3.61 | 1.45 | 2.54 | -12.68 | 225.32 | -43.07 | 110.58 | 0.7140 | 597.5 | 442.3 | |
| 0.00 | 0.34 | 0.00 | 0.25 | -11.64 | 224.23 | -44.15 | 108.78 | 0.7230 | 195.0 | 247.2 | |
| 0.00 | 0.60 | 0.00 | 0.44 | -13.31 | 223.86 | -44.52 | 110.86 | 0.7325 | -418.0 | -430.4 | |
| 0.86 | 3.87 | 0.62 | 2.79 | -12.81 | 223.93 | -44.45 | 110.24 | 0.7301 | -866.4 | -707.4 | |
| 0.00 | 1.12 | 0.00 | 0.81 | -13.07 | 223.75 | -44.63 | 110.50 | 0.7330 | -654.0 | -613.2 | |
| 4.38 | 8.42 | 3.23 | 6.20 | -13.46 | 223.01 | -45.38 | 110.74 | 0.7425 | -716.0 | -556.0 | |
| 0.00 | 1.03 | 0.00 | 0.76 | -12.70 | 222.66 | -45.72 | 109.63 | 0.7438 | -657.0 | -544.0 | |
| 0.00 | 3.01 | 0.00 | 2.22 | -12.92 | 222.57 | -45.81 | 109.88 | 0.7456 | -638.0 | -516.3 | |
| 0.00 | 0.52 | 0.00 | 0.38 | -13.23 | 222.45 | -45.93 | 110.24 | 0.7478 | -472.0 | -451.5 | |
| 12.63 | 19.16 | 9.47 | 14.36 | -13.00 | 221.89 | -46.50 | 109.75 | 0.7532 | -667.2 | -317.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
