SDO HMI 2014-11-18 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.93 | 73.95 | 22.05 | 52.55 | -13.38 | 224.59 | -43.25 | 111.48 | 0.7183 | -250.9 | -112.6 | |
|
previous
or next observation for the same group /

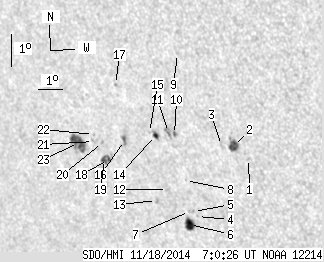

back to the solar disc SDO HMI 2014-11-18 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.80 | -13.28 | 228.90 | -38.94 | 113.20 | 0.6679 | 557.0 | 441.1 | |
| 5.67 | 9.19 | 3.78 | 6.13 | -12.92 | 228.37 | -39.46 | 112.45 | 0.6726 | 767.6 | 501.8 | |
| 0.00 | 1.55 | 0.00 | 1.04 | -12.91 | 227.90 | -39.94 | 112.21 | 0.6782 | 432.0 | 361.3 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -15.14 | 226.44 | -41.39 | 114.60 | 0.7043 | -609.0 | -494.9 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -14.99 | 226.32 | -41.52 | 114.34 | 0.7051 | -672.0 | -536.0 | |
| 7.22 | 9.88 | 5.06 | 6.92 | -15.40 | 226.05 | -41.79 | 114.76 | 0.7098 | -789.2 | -424.4 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -14.99 | 226.15 | -41.69 | 114.27 | 0.7070 | -515.0 | -503.1 | |
| 0.00 | 0.43 | 0.00 | 0.30 | -14.03 | 226.21 | -41.63 | 113.00 | 0.7024 | -530.0 | -478.2 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -10.13 | 226.63 | -41.20 | 107.77 | 0.6833 | 602.0 | 474.9 | |
| 0.60 | 1.46 | 0.41 | 1.01 | -12.62 | 226.06 | -41.77 | 111.01 | 0.6988 | 746.3 | 631.2 | |
| 0.00 | 4.55 | 0.00 | 3.15 | -12.57 | 225.83 | -42.01 | 110.84 | 0.7013 | 770.0 | 630.7 | |
| 0.00 | 1.80 | 0.00 | 1.27 | -14.33 | 225.40 | -42.44 | 113.05 | 0.7129 | -57.0 | -140.2 | |
| 0.00 | 1.89 | 0.00 | 1.34 | -14.69 | 224.85 | -42.99 | 113.29 | 0.7204 | -640.0 | -506.2 | |
| 1.89 | 3.35 | 1.32 | 2.34 | -12.68 | 225.27 | -42.57 | 110.77 | 0.7082 | 633.6 | 496.8 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -12.59 | 225.04 | -42.80 | 110.56 | 0.7105 | 258.0 | 272.8 | |
| 0.00 | 3.52 | 0.00 | 2.52 | -12.87 | 223.93 | -43.91 | 110.50 | 0.7241 | -864.0 | -771.3 | |
| 0.00 | 1.12 | 0.00 | 0.79 | -11.16 | 223.91 | -43.93 | 108.20 | 0.7189 | 535.0 | 393.9 | |
| 1.46 | 7.47 | 1.06 | 5.45 | -13.48 | 223.11 | -44.73 | 111.00 | 0.7354 | -780.8 | -582.2 | |
| 2.58 | -18.00 | 1.88 | -18.00 | -13.48 | 222.93 | -44.90 | 110.94 | 0.7374 | -676.1 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.75 | -12.96 | 222.97 | -44.87 | 110.27 | 0.7352 | -772.0 | -655.9 | |
| 0.00 | 1.63 | 0.00 | 1.20 | -12.94 | 222.58 | -45.25 | 110.10 | 0.7394 | -664.0 | -575.7 | |
| 0.00 | 0.77 | 0.00 | 0.57 | -12.72 | 222.64 | -45.20 | 109.84 | 0.7382 | -613.0 | -475.3 | |
| 11.51 | 19.07 | 8.54 | 14.17 | -12.99 | 221.92 | -45.92 | 109.93 | 0.7469 | -669.1 | -263.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
