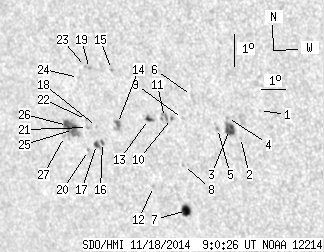

SDO HMI 2014-11-18 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.20 | 77.02 | 20.37 | 53.79 | -13.19 | 224.52 | -42.23 | 111.65 | 0.7058 | -146.4 | -105.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-18 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.50 | -12.28 | 229.65 | -37.10 | 112.66 | 0.6410 | 576.0 | 482.4 | |
| 0.00 | 0.77 | 0.00 | 0.51 | -13.14 | 228.77 | -37.98 | 113.46 | 0.6556 | 684.0 | 533.6 | |
| 6.44 | 9.53 | 4.23 | 6.26 | -12.90 | 228.38 | -38.36 | 112.93 | 0.6592 | 772.5 | 509.2 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -12.53 | 228.37 | -38.37 | 112.39 | 0.6578 | 527.0 | 413.8 | |
| 0.00 | 1.46 | 0.00 | 0.97 | -12.88 | 227.92 | -38.83 | 112.68 | 0.6647 | 599.0 | 481.3 | |
| 0.00 | 1.20 | 0.00 | 0.80 | -11.89 | 227.08 | -39.67 | 110.88 | 0.6709 | 538.0 | 357.6 | |
| 6.70 | 9.62 | 4.61 | 6.62 | -15.47 | 226.13 | -40.61 | 115.40 | 0.6969 | -794.8 | -491.7 | |
| 0.00 | 0.77 | 0.00 | 0.53 | -14.07 | 226.33 | -40.42 | 113.58 | 0.6886 | -571.0 | -501.2 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -12.61 | 226.59 | -40.16 | 111.68 | 0.6796 | 587.0 | 425.8 | |
| 0.34 | 1.03 | 0.23 | 0.70 | -12.62 | 226.14 | -40.60 | 111.50 | 0.6849 | 729.8 | 731.1 | |
| 0.00 | 5.24 | 0.00 | 3.57 | -12.60 | 225.87 | -40.88 | 111.35 | 0.6881 | 653.0 | 572.0 | |
| 0.00 | 1.12 | 0.00 | 0.78 | -14.75 | 224.95 | -41.79 | 113.89 | 0.7072 | -742.0 | -608.7 | |
| 1.89 | 4.12 | 1.30 | 2.83 | -12.68 | 225.20 | -41.54 | 111.18 | 0.6962 | 660.0 | 486.9 | |
| 1.55 | 5.41 | 1.09 | 3.81 | -12.84 | 223.89 | -42.85 | 110.87 | 0.7120 | -836.6 | -704.1 | |
| 0.00 | 1.12 | 0.00 | 0.78 | -11.19 | 223.98 | -42.77 | 108.65 | 0.7054 | 474.0 | 396.5 | |
| 0.86 | 5.84 | 0.61 | 4.18 | -13.45 | 223.13 | -43.62 | 111.38 | 0.7228 | -690.7 | -589.4 | |
| 1.89 | -16.00 | 1.36 | -16.00 | -13.52 | 222.86 | -43.89 | 111.36 | 0.7261 | -668.5 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -12.96 | 222.99 | -43.76 | 110.67 | 0.7228 | -682.0 | -633.3 | |
| 0.00 | 1.12 | 0.00 | 0.79 | -11.19 | 223.06 | -43.69 | 108.32 | 0.7161 | -694.0 | -528.2 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -13.72 | 222.47 | -44.27 | 111.47 | 0.7311 | 301.0 | 276.5 | |
| 0.00 | 1.37 | 0.00 | 0.99 | -13.00 | 222.59 | -44.15 | 110.58 | 0.7273 | -709.0 | -689.8 | |
| 0.00 | 0.94 | 0.00 | 0.68 | -12.76 | 222.61 | -44.14 | 110.26 | 0.7263 | -568.0 | -481.0 | |
| 0.00 | 0.94 | 0.00 | 0.67 | -11.13 | 222.90 | -43.84 | 108.18 | 0.7177 | -643.0 | -532.8 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -11.48 | 222.54 | -44.21 | 108.52 | 0.7230 | -590.0 | -476.3 | |
| 4.72 | 19.33 | 3.43 | 14.08 | -13.08 | 221.98 | -44.77 | 110.46 | 0.7345 | -757.1 | -356.7 | |
| 4.81 | -25.00 | 3.51 | -25.00 | -12.97 | 221.75 | -45.00 | 110.22 | 0.7367 | -617.1 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.76 | -13.31 | 221.53 | -45.21 | 110.59 | 0.7401 | 141.0 | 137.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
