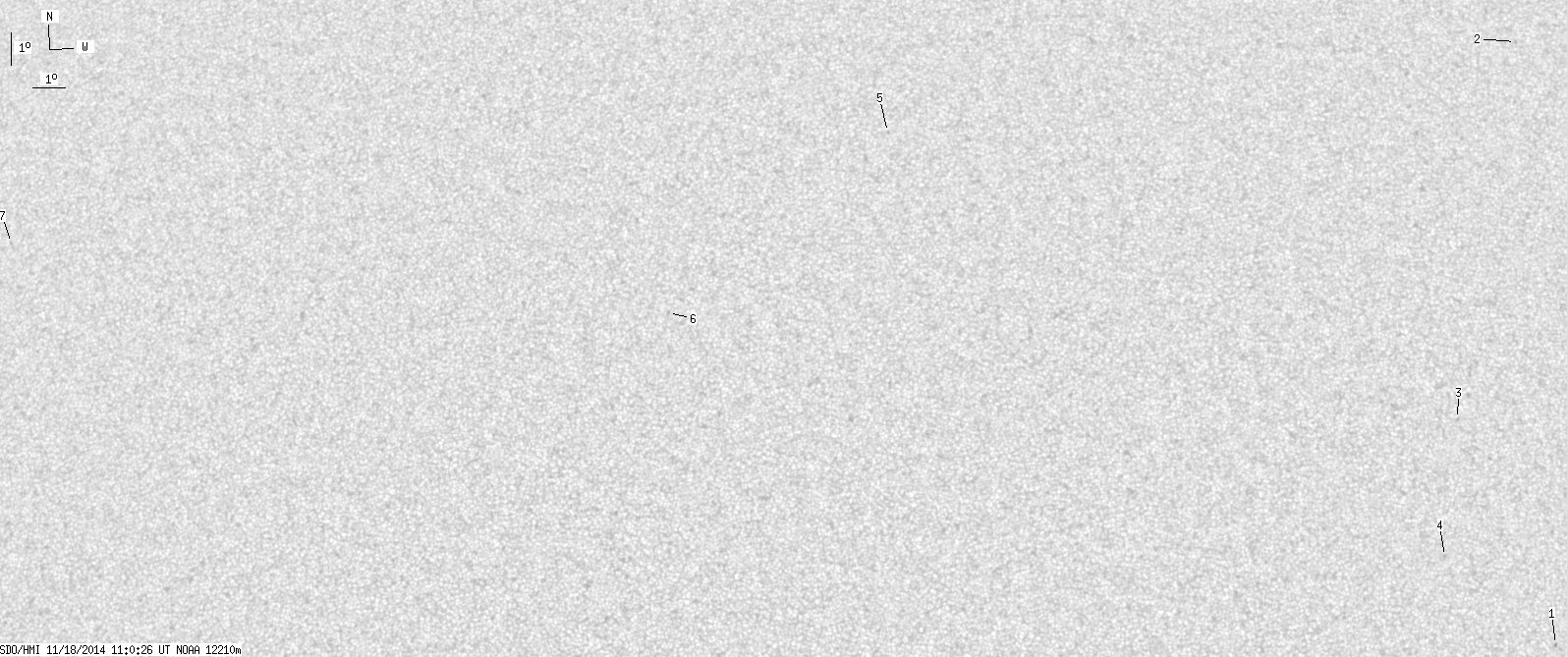

SDO HMI 2014-11-18 11:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.99 | 0.00 | 4.28 | 15.43 | 274.06 | 8.41 | 205.55 | 0.3757 | 379.7 | 277.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-18 11:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.54 | 5.81 | 285.81 | 20.16 | 280.12 | 0.3498 | 998.0 | 891.3 | |
| 0.00 | 1.37 | 0.00 | 0.78 | 24.56 | 286.40 | 20.75 | 319.63 | 0.4994 | -763.0 | -619.7 | |
| 0.00 | 1.55 | 0.00 | 0.81 | 12.73 | 283.03 | 17.38 | 301.74 | 0.3441 | 804.0 | 584.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 8.54 | 282.37 | 16.72 | 290.76 | 0.3056 | 988.0 | 760.4 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 21.82 | 265.13 | -0.52 | 1.46 | 0.3332 | -760.0 | -620.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 16.12 | 258.24 | -7.41 | 27.64 | 0.2682 | 742.0 | 566.4 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 18.03 | 236.03 | -29.62 | 59.77 | 0.5461 | 649.0 | 590.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
