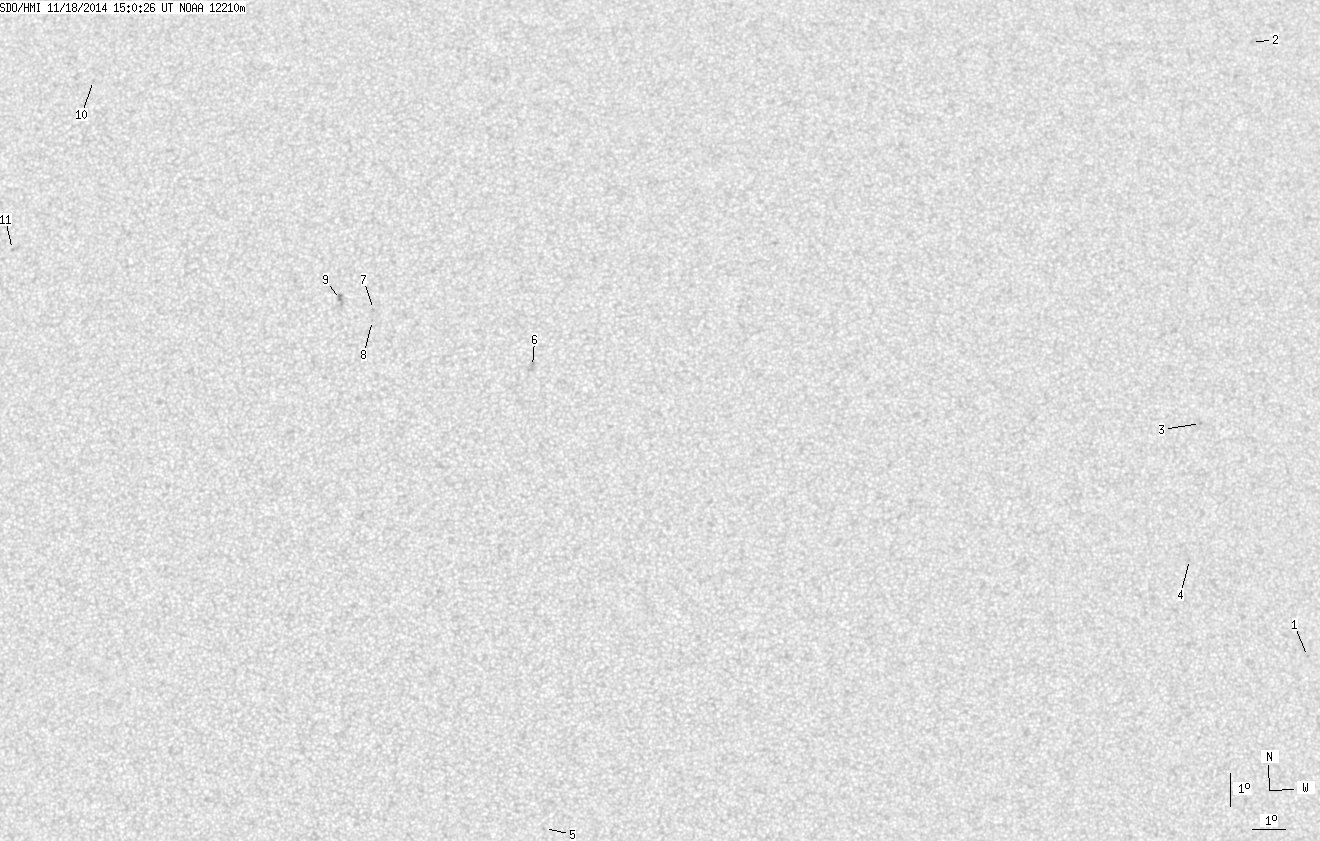

SDO HMI 2014-11-18 15:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.97 | 0.00 | 9.90 | 15.23 | 262.97 | -0.49 | 88.04 | 0.2953 | 400.6 | 486.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-18 15:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.51 | 5.68 | 286.04 | 22.58 | 278.86 | 0.3884 | 870.0 | 680.1 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 24.42 | 286.31 | 22.85 | 316.85 | 0.5192 | -716.0 | -661.6 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 12.68 | 283.04 | 19.58 | 298.85 | 0.3749 | 894.0 | 759.9 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 8.62 | 282.41 | 18.95 | 288.88 | 0.3409 | 792.0 | 648.4 | |
| 0.00 | 1.12 | 0.00 | 0.55 | 0.79 | 262.74 | -0.72 | 156.55 | 0.0316 | 802.0 | 627.9 | |
| 0.00 | 4.72 | 0.00 | 2.39 | 14.57 | 262.37 | -1.09 | 5.01 | 0.2118 | 805.0 | 711.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 16.29 | 257.44 | -6.02 | 22.78 | 0.2610 | -767.0 | -578.0 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 15.96 | 257.42 | -6.04 | 23.38 | 0.2559 | -842.0 | -663.1 | |
| 0.00 | 4.81 | 0.00 | 2.47 | 16.59 | 256.41 | -7.05 | 25.67 | 0.2728 | 1101.0 | 786.7 | |
| 0.00 | 1.46 | 0.00 | 0.80 | 23.35 | 247.97 | -15.49 | 34.40 | 0.4360 | 760.0 | 536.9 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 18.05 | 245.88 | -17.58 | 46.68 | 0.3965 | 708.0 | 570.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
