SDO HMI 2014-11-18 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.20 | 0.00 | 8.05 | 16.48 | 263.74 | 0.84 | 114.94 | 0.3473 | 537.1 | 510.3 | |
|
previous
or next observation for the same group /

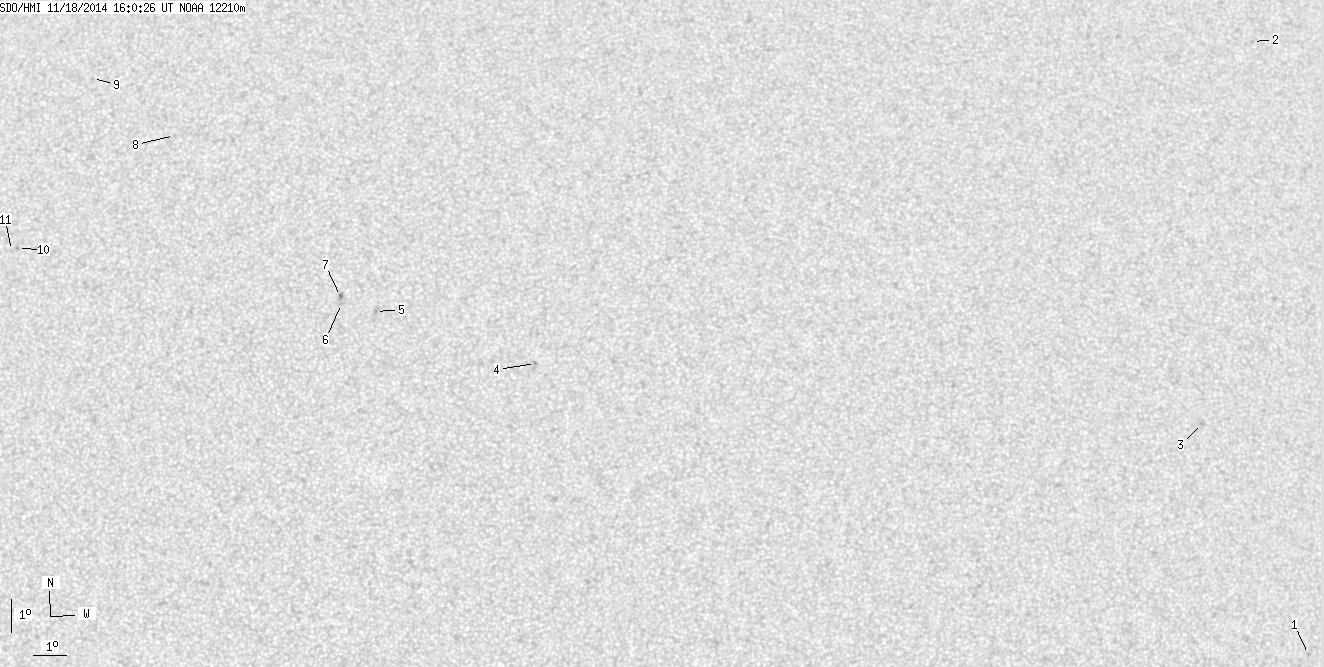

back to the solar disc SDO HMI 2014-11-18 16:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.60 | 5.72 | 286.07 | 23.17 | 278.80 | 0.3978 | 853.0 | 699.5 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 24.44 | 286.40 | 23.50 | 316.14 | 0.5259 | -791.0 | -692.1 | |
| 0.00 | 2.75 | 0.00 | 1.47 | 12.67 | 283.10 | 20.19 | 298.13 | 0.3835 | 917.0 | 612.5 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 14.65 | 262.43 | -0.48 | 2.18 | 0.2126 | 880.0 | 754.5 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 16.23 | 257.49 | -5.42 | 20.83 | 0.2563 | -923.0 | -802.9 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 16.47 | 256.42 | -6.48 | 24.06 | 0.2669 | 938.0 | 668.1 | |
| 0.00 | 2.83 | 0.00 | 1.46 | 16.68 | 256.39 | -6.52 | 23.84 | 0.2704 | 976.0 | 860.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | 21.64 | 250.83 | -12.08 | 30.55 | 0.3844 | 697.0 | 552.5 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 23.41 | 247.94 | -14.96 | 33.41 | 0.4321 | 698.0 | 575.7 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 18.08 | 246.04 | -16.87 | 45.47 | 0.3886 | 908.0 | 752.2 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 18.02 | 245.85 | -17.06 | 45.90 | 0.3901 | 755.0 | 627.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
