SDO HMI 2014-11-18 17:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.72 | 76.15 | 12.22 | 49.77 | -12.60 | 224.27 | -38.08 | 112.67 | 0.6542 | -37.0 | -108.7 | |
|
previous
or next observation for the same group /

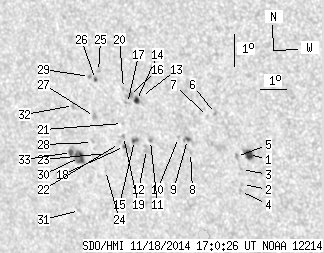

back to the solar disc SDO HMI 2014-11-18 17:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.89 | 6.95 | 3.03 | 4.31 | -13.05 | 228.51 | -33.85 | 115.60 | 0.6039 | 865.9 | 580.2 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -13.98 | 228.14 | -34.22 | 116.79 | 0.6136 | 652.0 | 642.1 | |
| 0.00 | 0.51 | 0.00 | 0.32 | -13.51 | 228.18 | -34.18 | 116.11 | 0.6106 | 679.0 | 557.5 | |
| 0.00 | 1.29 | 0.00 | 0.81 | -14.20 | 228.02 | -34.33 | 117.05 | 0.6162 | 616.0 | 523.7 | |
| 0.00 | 2.49 | 0.00 | 1.55 | -13.12 | 228.06 | -34.30 | 115.44 | 0.6100 | 632.0 | 444.9 | |
| 0.00 | 1.46 | 0.00 | 0.91 | -11.81 | 227.48 | -34.87 | 113.11 | 0.6107 | 589.0 | 500.6 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -11.91 | 227.17 | -35.18 | 113.09 | 0.6152 | 523.0 | 470.9 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -13.04 | 226.36 | -36.00 | 114.33 | 0.6308 | 493.0 | 376.5 | |
| 1.03 | 2.32 | 0.65 | 1.47 | -12.64 | 226.31 | -36.05 | 113.71 | 0.6294 | 841.2 | 706.5 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -12.59 | 225.98 | -36.38 | 113.46 | 0.6333 | 698.0 | 580.1 | |
| 0.00 | 1.54 | 0.00 | 1.00 | -12.71 | 224.89 | -37.46 | 113.07 | 0.6473 | 723.0 | 489.1 | |
| 0.00 | 4.46 | 0.00 | 2.90 | -12.99 | 224.69 | -37.67 | 113.38 | 0.6510 | -481.0 | -313.0 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -11.36 | 224.77 | -37.58 | 111.03 | 0.6430 | 427.0 | 553.3 | |
| 2.23 | 4.38 | 1.44 | 2.83 | -11.49 | 224.56 | -37.80 | 111.12 | 0.6462 | 696.1 | 552.2 | |
| 1.12 | 2.83 | 0.73 | 1.85 | -12.72 | 224.27 | -38.08 | 112.79 | 0.6549 | -897.5 | -730.0 | |
| 0.00 | 3.78 | 0.00 | 2.45 | -11.34 | 224.31 | -38.04 | 110.79 | 0.6486 | -38.0 | 101.5 | |
| 0.00 | 2.06 | 0.00 | 1.34 | -11.59 | 224.20 | -38.16 | 111.10 | 0.6511 | 612.0 | 434.3 | |
| 0.69 | 3.52 | 0.45 | 2.31 | -12.92 | 223.85 | -38.51 | 112.86 | 0.6609 | -861.4 | -663.5 | |
| 0.00 | 1.46 | 0.00 | 0.96 | -12.61 | 223.87 | -38.49 | 112.43 | 0.6594 | 364.0 | 231.2 | |
| 0.00 | 1.20 | 0.00 | 0.78 | -11.14 | 224.12 | -38.24 | 110.40 | 0.6503 | 556.0 | 451.8 | |
| 0.00 | 0.94 | 0.00 | 0.62 | -12.21 | 223.90 | -38.46 | 111.87 | 0.6573 | 296.0 | 210.7 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -12.83 | 223.67 | -38.69 | 112.65 | 0.6627 | -194.0 | -309.3 | |
| 0.00 | 0.43 | 0.00 | 0.29 | -13.15 | 223.06 | -39.30 | 112.82 | 0.6714 | -729.0 | -697.2 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -13.68 | 222.96 | -39.40 | 113.51 | 0.6749 | -778.0 | -752.3 | |
| 0.00 | 1.12 | 0.00 | 0.73 | -10.64 | 223.22 | -39.13 | 109.28 | 0.6595 | -932.0 | -801.7 | |
| 0.69 | 1.63 | 0.45 | 1.08 | -10.89 | 223.07 | -39.29 | 109.58 | 0.6623 | -815.1 | -743.4 | |
| 0.00 | 2.49 | 0.00 | 1.66 | -12.02 | 222.84 | -39.52 | 111.11 | 0.6695 | -823.0 | -695.7 | |
| 0.00 | 1.12 | 0.00 | 0.75 | -12.83 | 222.61 | -39.75 | 112.15 | 0.6755 | -728.0 | -521.2 | |
| 0.00 | 1.46 | 0.00 | 0.96 | -10.81 | 222.85 | -39.51 | 109.36 | 0.6647 | -716.0 | -615.1 | |
| 6.18 | 16.74 | 4.19 | 11.35 | -13.30 | 222.00 | -40.36 | 112.54 | 0.6847 | -777.2 | -536.3 | |
| 0.00 | 1.29 | 0.00 | 0.89 | -14.95 | 221.64 | -40.72 | 114.63 | 0.6957 | -491.0 | -439.1 | |
| 0.00 | 3.09 | 0.00 | 2.08 | -11.71 | 222.06 | -40.29 | 110.33 | 0.6777 | -488.0 | -472.0 | |
| 1.89 | -30.00 | 1.28 | -30.00 | -13.16 | 221.70 | -40.65 | 112.20 | 0.6875 | -580.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
