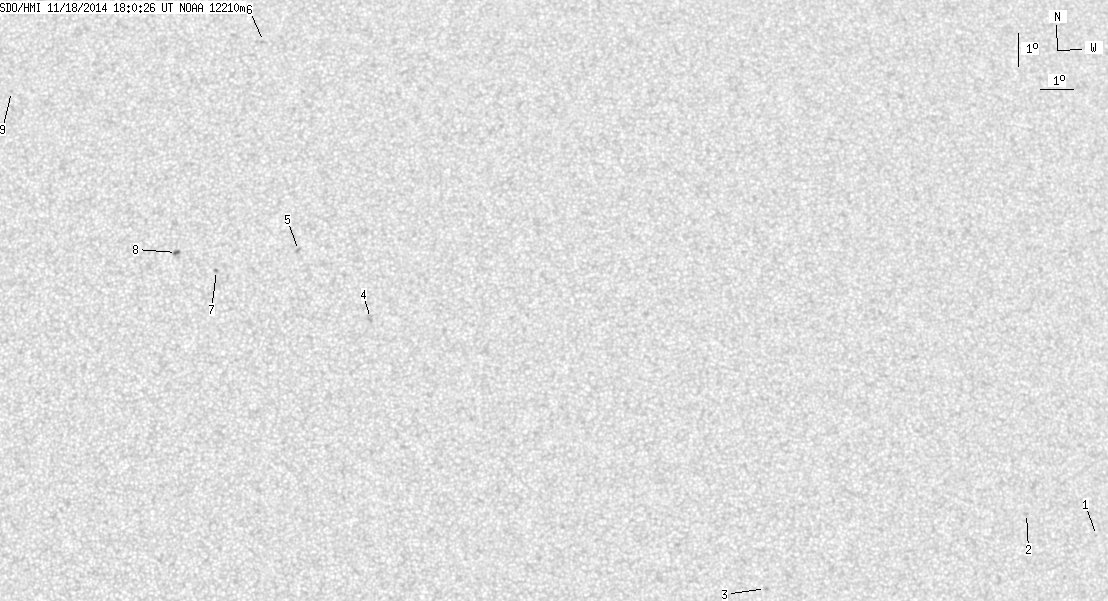

SDO HMI 2014-11-18 18:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.03 | 16.73 | 0.53 | 8.65 | 14.91 | 264.12 | 2.31 | 159.81 | 0.2787 | 409.2 | 412.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-18 18:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.46 | 7.92 | 284.69 | 22.89 | 284.39 | 0.3994 | 685.0 | 532.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | 8.62 | 282.47 | 20.67 | 287.53 | 0.3676 | 718.0 | 550.9 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 6.49 | 274.24 | 12.44 | 288.51 | 0.2267 | 859.0 | 607.6 | |
| 0.00 | 3.86 | 0.00 | 1.96 | 14.65 | 262.40 | 0.59 | 357.29 | 0.2127 | 786.0 | 699.5 | |
| 0.00 | 2.23 | 0.00 | 1.14 | 16.72 | 260.18 | -1.63 | 6.29 | 0.2493 | 960.0 | 743.2 | |
| 0.00 | 1.80 | 0.00 | 0.96 | 23.22 | 258.99 | -2.82 | 7.25 | 0.3592 | -722.0 | -485.3 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 16.11 | 257.65 | -4.15 | 16.40 | 0.2475 | -887.0 | -774.3 | |
| 1.03 | 2.57 | 0.53 | 1.32 | 16.65 | 256.40 | -5.40 | 20.17 | 0.2629 | 992.8 | 825.2 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 21.61 | 250.93 | -10.88 | 28.06 | 0.3746 | 565.0 | 485.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
