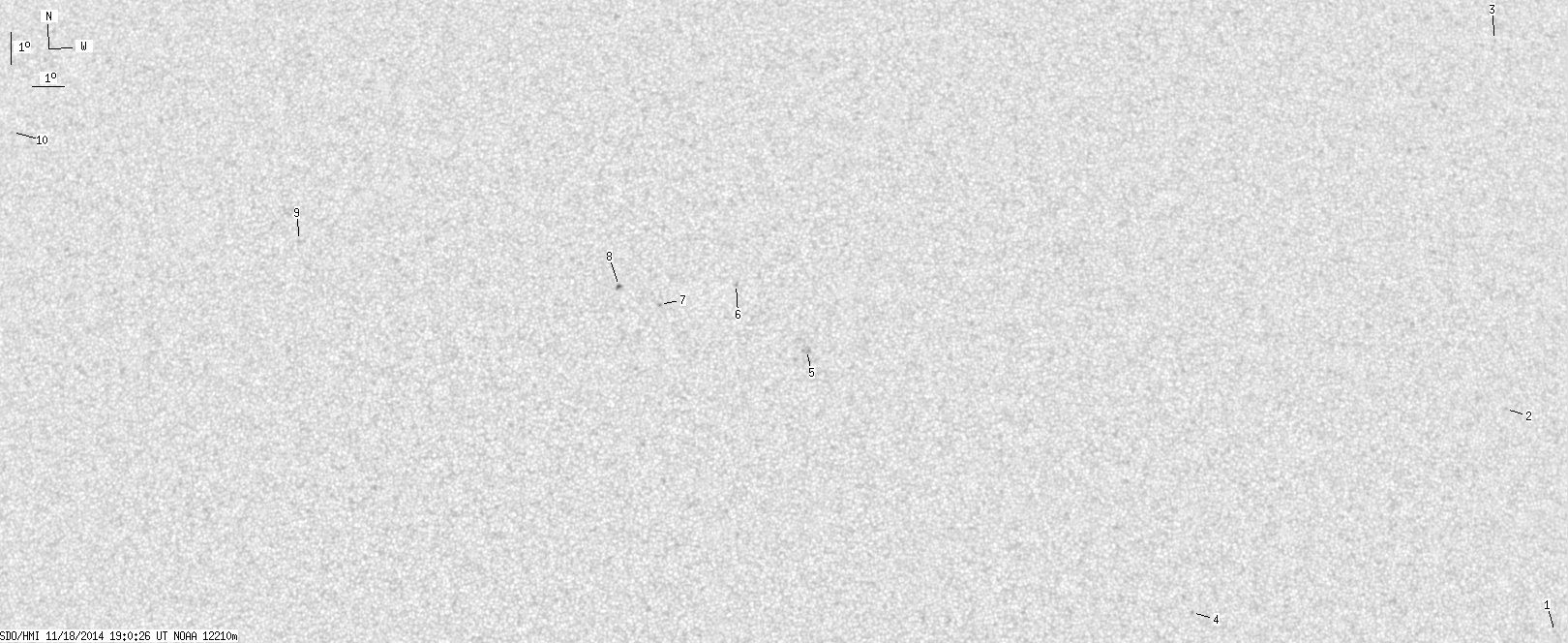

SDO HMI 2014-11-18 19:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.94 | 18.62 | 0.48 | 9.78 | 15.18 | 263.95 | 2.70 | 197.81 | 0.3092 | 475.4 | 479.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-18 19:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.56 | 5.68 | 286.11 | 24.86 | 278.24 | 0.4245 | 874.0 | 641.7 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 12.57 | 284.94 | 23.69 | 294.60 | 0.4331 | 647.0 | 430.6 | |
| 0.00 | 1.03 | 0.00 | 0.61 | 24.33 | 286.37 | 25.12 | 314.24 | 0.5420 | -778.0 | -584.9 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 6.45 | 274.30 | 13.05 | 287.58 | 0.2365 | 877.0 | 674.5 | |
| 0.00 | 5.75 | 0.00 | 2.91 | 14.64 | 262.37 | 1.12 | 354.91 | 0.2132 | 792.0 | 732.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 16.71 | 260.12 | -1.13 | 4.37 | 0.2485 | 914.0 | 766.8 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 16.07 | 257.69 | -3.56 | 14.21 | 0.2444 | -968.0 | -716.9 | |
| 0.94 | 2.66 | 0.48 | 1.36 | 16.65 | 256.38 | -4.87 | 18.33 | 0.2600 | 952.2 | 777.4 | |
| 0.00 | 1.46 | 0.00 | 0.78 | 18.03 | 245.88 | -15.37 | 43.00 | 0.3711 | 624.0 | 540.1 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 21.37 | 235.43 | -25.82 | 51.00 | 0.5240 | 591.0 | 438.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
