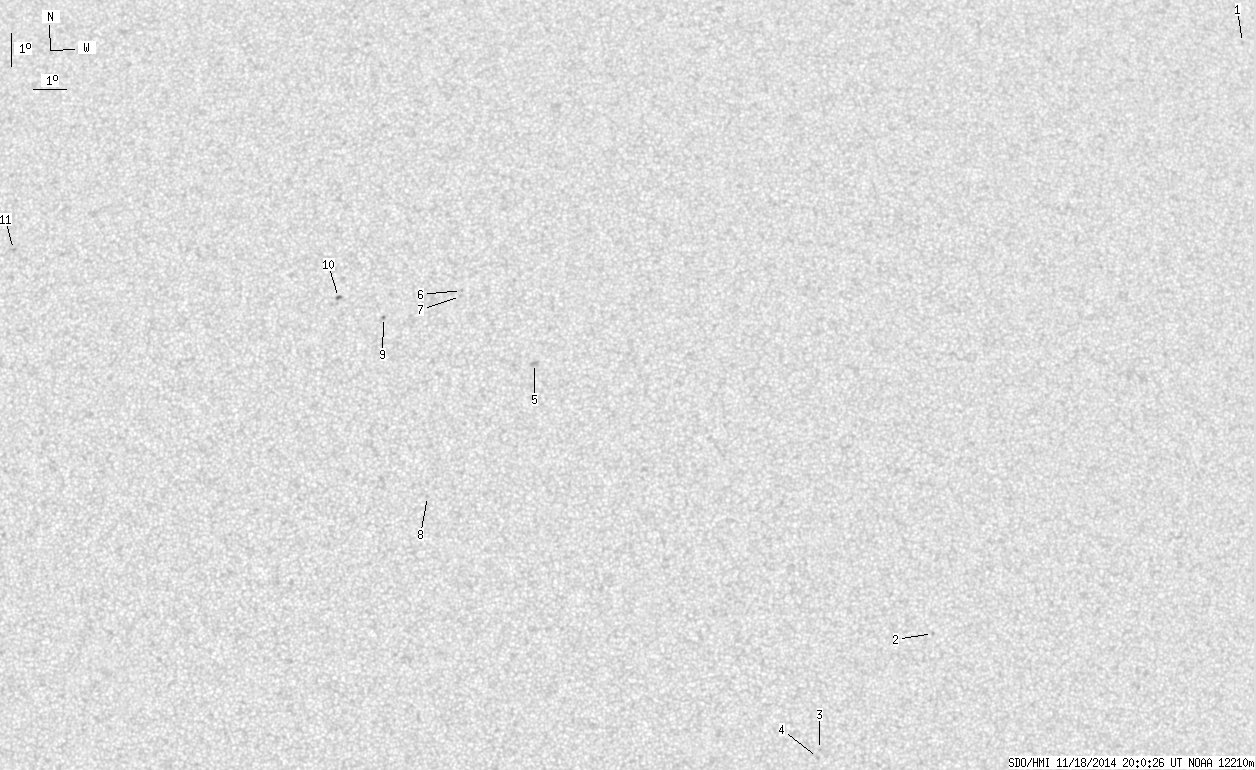

SDO HMI 2014-11-18 20:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.77 | 16.50 | 0.40 | 8.52 | 13.91 | 263.32 | 2.62 | 307.87 | 0.2625 | 561.5 | 496.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-18 20:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.76 | 24.32 | 286.35 | 25.65 | 313.67 | 0.5476 | -726.0 | -499.7 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 6.44 | 274.30 | 13.60 | 286.93 | 0.2453 | 792.0 | 613.9 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 3.04 | 270.80 | 10.10 | 273.66 | 0.1763 | 779.0 | 681.9 | |
| 0.00 | 1.46 | 0.00 | 0.73 | 2.80 | 270.74 | 10.04 | 272.33 | 0.1751 | 907.0 | 680.6 | |
| 0.00 | 3.78 | 0.00 | 1.91 | 14.61 | 262.36 | 1.66 | 352.42 | 0.2137 | 1015.0 | 822.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 16.83 | 260.12 | -0.58 | 2.21 | 0.2500 | 732.0 | 607.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 16.65 | 260.09 | -0.61 | 2.36 | 0.2469 | 778.0 | 652.6 | |
| 0.00 | 1.03 | 0.00 | 0.52 | 10.61 | 259.11 | -1.59 | 10.87 | 0.1455 | 807.0 | 620.8 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 16.01 | 257.72 | -2.98 | 12.01 | 0.2411 | -808.0 | -727.2 | |
| 0.77 | 2.15 | 0.40 | 1.10 | 16.62 | 256.32 | -4.38 | 16.62 | 0.2570 | 873.6 | 749.8 | |
| 0.00 | 1.63 | 0.00 | 0.87 | 18.03 | 246.00 | -14.69 | 41.75 | 0.3638 | 902.0 | 680.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
