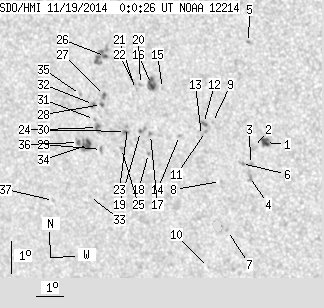

SDO HMI 2014-11-19 00:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.76 | 103.03 | 11.04 | 63.97 | -12.53 | 224.43 | -34.06 | 114.71 | 0.6038 | -15.9 | -146.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-19 00:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.69 | 6.27 | 2.19 | 3.72 | -13.11 | 228.61 | -29.87 | 118.38 | 0.5536 | 923.2 | 715.9 | |
| 0.00 | 4.38 | 0.00 | 2.61 | -13.27 | 228.17 | -30.32 | 118.31 | 0.5603 | 595.0 | 344.7 | |
| 0.00 | 2.23 | 0.00 | 1.34 | -13.80 | 227.99 | -30.50 | 119.02 | 0.5659 | 749.0 | 679.4 | |
| 0.00 | 4.29 | 0.00 | 2.58 | -14.17 | 227.90 | -30.59 | 119.55 | 0.5694 | 727.0 | 611.2 | |
| 0.00 | 1.72 | 0.00 | 1.01 | -10.06 | 228.39 | -30.10 | 113.07 | 0.5389 | 763.0 | 556.2 | |
| 0.00 | 1.80 | 0.00 | 1.08 | -13.78 | 227.67 | -30.82 | 118.75 | 0.5697 | 482.0 | 403.0 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -15.87 | 226.83 | -31.66 | 121.36 | 0.5935 | -732.0 | -620.8 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -14.35 | 226.83 | -31.66 | 119.04 | 0.5838 | -662.0 | -537.9 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -12.53 | 226.82 | -31.67 | 116.16 | 0.5732 | 721.0 | 515.4 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -17.05 | 225.91 | -32.58 | 122.41 | 0.6120 | -540.0 | -398.0 | |
| 0.00 | 1.46 | 0.00 | 0.88 | -12.82 | 226.53 | -31.96 | 116.41 | 0.5786 | 897.0 | 722.7 | |
| 0.00 | 3.52 | 0.00 | 2.13 | -12.57 | 226.49 | -32.00 | 116.00 | 0.5777 | 927.0 | 740.0 | |
| 0.00 | 0.69 | 0.00 | 0.42 | -12.94 | 226.36 | -32.13 | 116.51 | 0.5814 | 564.0 | 507.6 | |
| 0.00 | 1.55 | 0.00 | 0.95 | -12.96 | 225.57 | -32.92 | 116.01 | 0.5916 | 692.0 | 572.8 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -11.53 | 225.15 | -33.33 | 113.50 | 0.5894 | 638.0 | 607.0 | |
| 4.72 | 9.44 | 2.90 | 5.80 | -11.42 | 224.77 | -33.72 | 113.10 | 0.5938 | 838.8 | 570.7 | |
| 0.00 | 1.72 | 0.00 | 1.07 | -12.95 | 224.51 | -33.98 | 115.34 | 0.6049 | -754.0 | -674.6 | |
| 0.00 | 1.29 | 0.00 | 0.80 | -13.54 | 224.34 | -34.15 | 116.14 | 0.6102 | -642.0 | -523.5 | |
| 0.34 | 3.52 | 0.21 | 2.19 | -12.87 | 224.15 | -34.34 | 115.00 | 0.6090 | -878.8 | -739.8 | |
| 0.00 | 1.20 | 0.00 | 0.74 | -11.43 | 224.37 | -34.12 | 112.88 | 0.5990 | 591.0 | 592.4 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -11.58 | 224.16 | -34.33 | 113.01 | 0.6024 | 465.0 | 518.0 | |
| 0.00 | 1.37 | 0.00 | 0.85 | -11.43 | 224.15 | -34.34 | 112.77 | 0.6019 | 520.0 | 480.9 | |
| 0.00 | 1.03 | 0.00 | 0.65 | -12.76 | 223.69 | -34.80 | 114.56 | 0.6142 | 360.0 | 194.7 | |
| 0.43 | 2.15 | 0.27 | 1.35 | -12.88 | 223.60 | -34.89 | 114.69 | 0.6160 | 532.0 | 425.2 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -13.41 | 223.36 | -35.13 | 115.35 | 0.6217 | -786.0 | -592.0 | |
| 0.94 | 14.77 | 0.59 | 9.23 | -10.60 | 223.19 | -35.30 | 110.96 | 0.6105 | -808.9 | -736.2 | |
| 0.77 | 2.32 | 0.49 | 1.46 | -11.80 | 222.98 | -35.50 | 112.69 | 0.6185 | -930.1 | -861.5 | |
| 0.60 | 1.97 | 0.38 | 1.25 | -12.07 | 222.83 | -35.66 | 113.04 | 0.6217 | -826.6 | -722.9 | |
| 0.00 | 2.49 | 0.00 | 1.59 | -13.46 | 222.60 | -35.89 | 114.99 | 0.6313 | -662.0 | -555.2 | |
| 0.94 | 4.46 | 0.60 | 2.84 | -12.79 | 222.56 | -35.92 | 113.96 | 0.6284 | -880.0 | -732.3 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -12.54 | 222.49 | -36.00 | 113.56 | 0.6282 | -678.0 | -536.7 | |
| 0.52 | 3.09 | 0.33 | 1.96 | -12.08 | 222.53 | -35.96 | 112.89 | 0.6256 | -767.7 | -632.0 | |
| 0.00 | 1.29 | 0.00 | 0.83 | -14.93 | 221.87 | -36.62 | 116.71 | 0.6476 | -624.0 | -496.3 | |
| 3.69 | 14.34 | 2.36 | 9.20 | -13.32 | 222.13 | -36.35 | 114.52 | 0.6363 | -872.0 | -589.3 | |
| 0.00 | 1.46 | 0.00 | 0.93 | -11.79 | 222.09 | -36.40 | 112.21 | 0.6298 | -654.0 | -463.2 | |
| 1.12 | -34.00 | 0.72 | -34.00 | -13.27 | 221.76 | -36.73 | 114.24 | 0.6406 | -627.3 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -15.09 | 220.44 | -38.05 | 116.14 | 0.6652 | -631.0 | -473.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
