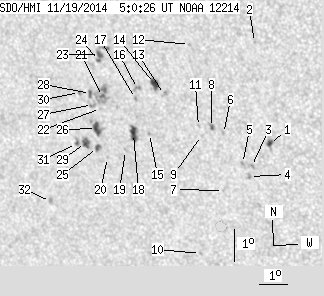

SDO HMI 2014-11-19 05:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.26 | 109.51 | 17.13 | 66.19 | -12.46 | 223.86 | -31.89 | 115.92 | 0.5755 | -41.9 | -224.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-19 05:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.06 | 5.15 | 1.19 | 2.98 | -13.19 | 228.63 | -27.12 | 120.72 | 0.5183 | 884.8 | 455.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -10.11 | 228.45 | -27.29 | 115.10 | 0.5006 | 467.0 | 342.0 | |
| 0.00 | 2.66 | 0.00 | 1.56 | -13.91 | 227.92 | -27.83 | 121.31 | 0.5325 | 808.0 | 443.9 | |
| 0.00 | 2.49 | 0.00 | 1.46 | -14.22 | 227.81 | -27.94 | 121.73 | 0.5361 | 543.0 | 503.7 | |
| 0.00 | 1.55 | 0.00 | 0.91 | -13.82 | 227.62 | -28.13 | 120.91 | 0.5357 | 300.0 | 419.7 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -12.91 | 227.08 | -28.67 | 118.94 | 0.5364 | 326.0 | 415.9 | |
| 0.00 | 0.26 | 0.00 | 0.15 | -14.67 | 226.84 | -28.91 | 121.63 | 0.5514 | -812.0 | -735.7 | |
| 0.69 | 2.92 | 0.40 | 1.72 | -12.73 | 226.68 | -29.06 | 118.33 | 0.5404 | 863.6 | 689.5 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -12.99 | 226.30 | -29.44 | 118.45 | 0.5470 | 558.0 | 407.4 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -16.66 | 225.70 | -30.04 | 123.76 | 0.5792 | -504.0 | -424.1 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -12.71 | 226.23 | -29.51 | 117.95 | 0.5461 | 454.0 | 311.7 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -10.21 | 226.21 | -29.53 | 113.65 | 0.5317 | 610.0 | 532.4 | |
| 0.00 | 2.58 | 0.00 | 1.53 | -11.75 | 225.16 | -30.58 | 115.57 | 0.5544 | 708.0 | 596.3 | |
| 4.38 | 6.70 | 2.61 | 3.99 | -11.42 | 224.85 | -30.89 | 114.81 | 0.5566 | 859.0 | 578.2 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -12.96 | 224.47 | -31.28 | 117.07 | 0.5704 | -290.0 | -480.5 | |
| 0.00 | 3.44 | 0.00 | 2.06 | -11.59 | 224.23 | -31.52 | 114.67 | 0.5657 | 748.0 | 472.9 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -11.90 | 224.12 | -31.63 | 115.10 | 0.5689 | 512.0 | 459.8 | |
| 5.67 | 8.59 | 3.43 | 5.20 | -12.97 | 223.90 | -31.85 | 116.69 | 0.5778 | 686.3 | 401.7 | |
| 0.00 | 1.46 | 0.00 | 0.89 | -13.51 | 223.53 | -32.22 | 117.28 | 0.5855 | -534.0 | -494.5 | |
| 0.00 | 1.03 | 0.00 | 0.63 | -13.74 | 222.84 | -32.91 | 117.18 | 0.5955 | -467.0 | -336.8 | |
| 1.03 | 20.78 | 0.63 | 12.66 | -11.86 | 222.94 | -32.81 | 114.30 | 0.5840 | -951.0 | -715.2 | |
| 0.00 | 1.29 | 0.00 | 0.79 | -12.23 | 222.81 | -32.93 | 114.81 | 0.5875 | -392.0 | -361.5 | |
| 1.80 | 10.48 | 1.09 | 6.33 | -10.58 | 223.00 | -32.75 | 112.26 | 0.5768 | -852.0 | -683.0 | |
| 0.52 | -23.00 | 0.31 | -23.00 | -10.76 | 222.94 | -32.81 | 112.52 | 0.5785 | -787.8 | 999999 | |
| 1.63 | 3.61 | 1.01 | 2.22 | -13.44 | 222.52 | -33.22 | 116.51 | 0.5977 | -740.3 | -605.9 | |
| 5.15 | 8.93 | 3.17 | 5.48 | -12.85 | 222.58 | -33.17 | 115.63 | 0.5939 | -896.6 | -528.2 | |
| 0.00 | 3.09 | 0.00 | 1.89 | -12.12 | 222.54 | -33.21 | 114.45 | 0.5905 | -763.0 | -612.4 | |
| 1.12 | -21.00 | 0.68 | -21.00 | -11.78 | 222.52 | -33.23 | 113.91 | 0.5891 | -709.9 | 999999 | |
| 3.69 | 6.78 | 2.29 | 4.20 | -13.29 | 222.11 | -33.64 | 116.02 | 0.6022 | -863.9 | -586.9 | |
| 0.00 | 1.55 | 0.00 | 0.95 | -11.76 | 222.12 | -33.63 | 113.64 | 0.5941 | -604.0 | -494.3 | |
| 0.52 | 2.83 | 0.32 | 1.76 | -13.33 | 221.77 | -33.97 | 115.87 | 0.6066 | -656.0 | -485.6 | |
| 0.00 | 2.75 | 0.00 | 1.75 | -15.15 | 220.48 | -35.27 | 117.79 | 0.6323 | -732.0 | -502.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
