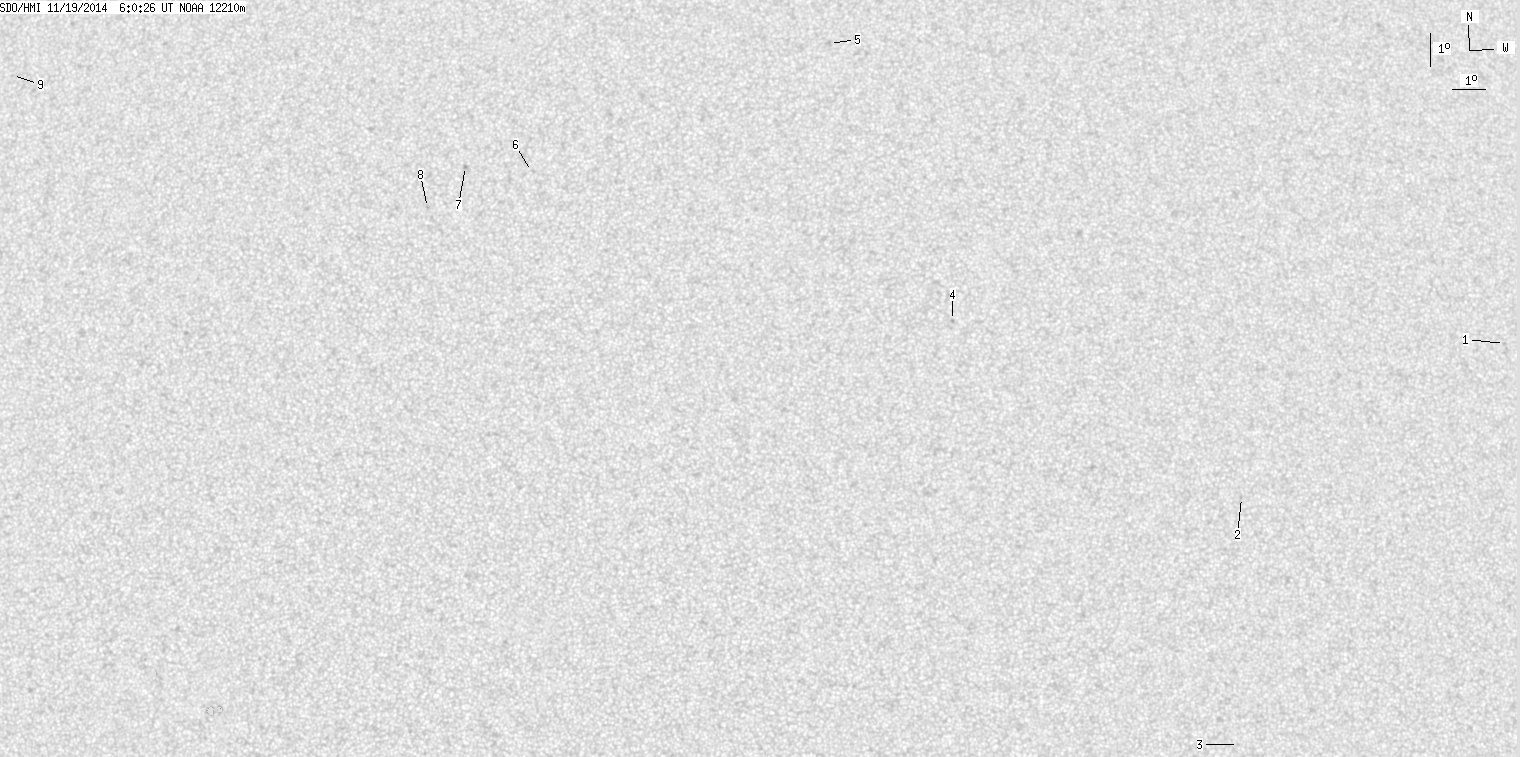

SDO HMI 2014-11-19 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.98 | 0.00 | 5.82 | 16.66 | 257.86 | 2.66 | 206.60 | 0.3399 | 520.7 | 327.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-19 06:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.53 | 13.76 | 280.02 | 24.82 | 296.27 | 0.4566 | 677.0 | 585.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 9.26 | 271.17 | 15.97 | 294.15 | 0.2989 | 643.0 | 502.1 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 1.93 | 270.86 | 15.66 | 268.73 | 0.2711 | 718.0 | 519.6 | |
| 0.00 | 1.29 | 0.00 | 0.66 | 14.67 | 262.45 | 7.25 | 330.21 | 0.2471 | 879.0 | 783.3 | |
| 0.00 | 2.40 | 0.00 | 1.28 | 23.26 | 258.87 | 3.67 | 350.65 | 0.3632 | -815.0 | -710.1 | |
| 0.00 | 0.34 | 0.00 | 0.18 | 19.25 | 249.40 | -5.80 | 18.17 | 0.3074 | 135.0 | 66.8 | |
| 0.00 | 1.89 | 0.00 | 0.99 | 19.40 | 247.31 | -7.89 | 23.82 | 0.3222 | 849.0 | 722.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | 18.13 | 246.17 | -9.03 | 28.73 | 0.3118 | 892.0 | 706.6 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 22.10 | 232.07 | -23.13 | 46.87 | 0.5006 | 708.0 | 561.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
