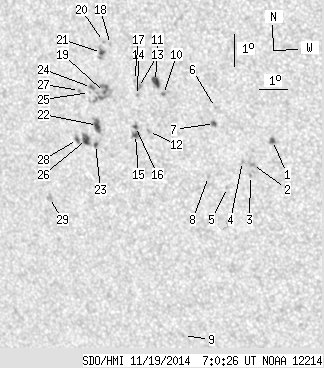

SDO HMI 2014-11-19 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.72 | 91.89 | 13.03 | 55.04 | -12.61 | 223.80 | -30.85 | 116.83 | 0.5630 | -145.4 | -224.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-19 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.37 | 3.09 | 0.79 | 1.77 | -13.17 | 228.66 | -25.99 | 121.71 | 0.5036 | 947.2 | 785.8 | |
| 0.00 | 4.38 | 0.00 | 2.53 | -13.93 | 227.89 | -26.76 | 122.28 | 0.5191 | 833.0 | 466.4 | |
| 0.00 | 1.20 | 0.00 | 0.70 | -14.27 | 227.78 | -26.88 | 122.75 | 0.5230 | 496.0 | 605.1 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -13.84 | 227.56 | -27.10 | 121.83 | 0.5226 | 239.0 | 223.1 | |
| 0.00 | 1.37 | 0.00 | 0.81 | -14.66 | 226.93 | -27.72 | 122.61 | 0.5364 | -259.0 | -399.1 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -12.20 | 226.83 | -27.82 | 118.39 | 0.5207 | 682.0 | 479.6 | |
| 0.94 | 2.40 | 0.55 | 1.40 | -12.69 | 226.74 | -27.91 | 119.16 | 0.5251 | 850.8 | 729.6 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -14.33 | 226.32 | -28.34 | 121.54 | 0.5418 | -162.0 | -264.0 | |
| 0.00 | 1.12 | 0.00 | 0.69 | -19.35 | 224.57 | -30.09 | 127.62 | 0.5995 | -250.0 | -401.2 | |
| 0.00 | 1.46 | 0.00 | 0.86 | -11.83 | 225.08 | -29.58 | 116.40 | 0.5415 | 746.0 | 645.6 | |
| 4.12 | 6.61 | 2.43 | 3.89 | -11.44 | 224.84 | -29.81 | 115.57 | 0.5423 | 852.1 | 546.4 | |
| 0.00 | 1.55 | 0.00 | 0.92 | -12.98 | 224.40 | -30.25 | 117.81 | 0.5572 | -820.0 | -610.6 | |
| 0.00 | 2.40 | 0.00 | 1.43 | -11.64 | 224.23 | -30.43 | 115.46 | 0.5516 | 724.0 | 484.1 | |
| 0.00 | 1.03 | 0.00 | 0.61 | -11.88 | 224.16 | -30.49 | 115.83 | 0.5539 | 528.0 | 466.3 | |
| 1.46 | 4.21 | 0.87 | 2.52 | -13.08 | 223.93 | -30.73 | 117.63 | 0.5639 | 517.4 | 211.4 | |
| 0.86 | 3.18 | 0.51 | 1.90 | -12.83 | 223.96 | -30.69 | 117.26 | 0.5620 | 627.2 | 531.1 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -11.42 | 224.11 | -30.54 | 115.03 | 0.5519 | 267.0 | 253.0 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -10.34 | 223.39 | -31.26 | 112.74 | 0.5557 | -521.0 | -558.1 | |
| 0.52 | 17.09 | 0.31 | 10.28 | -11.81 | 223.00 | -31.65 | 114.93 | 0.5687 | -978.5 | -636.2 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -10.26 | 223.15 | -31.50 | 112.44 | 0.5585 | -726.0 | -595.8 | |
| 1.46 | 5.41 | 0.87 | 3.23 | -10.59 | 223.04 | -31.61 | 112.94 | 0.5616 | -880.8 | -669.6 | |
| 4.12 | 8.42 | 2.50 | 5.11 | -12.83 | 222.61 | -32.05 | 116.31 | 0.5794 | -945.1 | -703.5 | |
| 0.86 | 2.15 | 0.52 | 1.31 | -13.42 | 222.45 | -32.20 | 117.14 | 0.5848 | -887.6 | -736.3 | |
| 0.77 | 2.23 | 0.47 | 1.35 | -11.67 | 222.55 | -32.10 | 114.41 | 0.5737 | -858.0 | -725.5 | |
| 0.00 | 0.77 | 0.00 | 0.47 | -11.83 | 222.46 | -32.19 | 114.60 | 0.5757 | -542.0 | -526.4 | |
| 4.38 | 6.35 | 2.68 | 3.88 | -13.27 | 222.15 | -32.51 | 116.70 | 0.5877 | -849.7 | -623.5 | |
| 0.00 | 1.29 | 0.00 | 0.78 | -11.77 | 222.11 | -32.54 | 114.30 | 0.5800 | -515.0 | -475.5 | |
| 0.86 | 3.44 | 0.53 | 2.11 | -13.28 | 221.82 | -32.83 | 116.50 | 0.5919 | -584.6 | -401.6 | |
| 0.00 | 3.95 | 0.00 | 2.48 | -15.10 | 220.48 | -34.17 | 118.39 | 0.6187 | -712.0 | -499.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
