SDO HMI 2014-11-19 14:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.84 | 67.01 | 5.08 | 38.53 | -12.35 | 223.93 | -26.90 | 119.49 | 0.5098 | -207.1 | -218.8 | |
|
previous
or next observation for the same group /

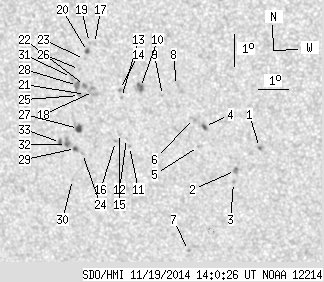

back to the solar disc SDO HMI 2014-11-19 14:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.34 | 2.06 | 0.19 | 1.14 | -13.29 | 228.67 | -22.16 | 125.97 | 0.4554 | 955.0 | 811.2 | |
| 0.00 | 2.83 | 0.00 | 1.59 | -14.01 | 227.80 | -23.03 | 126.25 | 0.4725 | 894.0 | 744.0 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -14.39 | 227.69 | -23.13 | 126.78 | 0.4771 | 699.0 | 576.4 | |
| 0.86 | 2.40 | 0.48 | 1.35 | -12.68 | 226.91 | -23.92 | 122.86 | 0.4728 | 813.4 | 683.8 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -13.29 | 226.65 | -24.18 | 123.70 | 0.4811 | 628.0 | 555.9 | |
| 0.00 | 2.66 | 0.00 | 1.50 | -12.44 | 226.57 | -24.26 | 122.06 | 0.4754 | 641.0 | 574.6 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -16.53 | 225.91 | -24.92 | 128.35 | 0.5171 | -862.0 | -737.5 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -11.43 | 226.10 | -24.72 | 119.74 | 0.4741 | 524.0 | 540.6 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -11.75 | 225.61 | -25.22 | 119.85 | 0.4830 | 700.0 | 571.4 | |
| 1.89 | 4.89 | 1.07 | 2.78 | -11.52 | 224.89 | -25.94 | 118.76 | 0.4909 | 1018.4 | 779.2 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -13.33 | 224.32 | -26.51 | 121.46 | 0.5113 | -716.0 | -619.1 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -13.09 | 224.24 | -26.58 | 120.97 | 0.5105 | -627.0 | -498.9 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -11.83 | 224.22 | -26.61 | 118.74 | 0.5021 | 741.0 | 581.3 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -11.59 | 224.17 | -26.65 | 118.27 | 0.5010 | 730.0 | 617.6 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -12.94 | 224.02 | -26.81 | 120.52 | 0.5122 | 514.0 | 466.8 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -13.19 | 223.86 | -26.97 | 120.80 | 0.5162 | 733.0 | 600.3 | |
| 0.00 | 1.80 | 0.00 | 1.03 | -10.20 | 223.46 | -27.36 | 115.16 | 0.5018 | -726.0 | -482.3 | |
| 0.00 | 6.01 | 0.00 | 3.46 | -11.67 | 223.28 | -27.55 | 117.65 | 0.5134 | -458.0 | -461.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -10.18 | 223.30 | -27.53 | 114.98 | 0.5040 | -785.0 | -573.6 | |
| 0.86 | 2.06 | 0.49 | 1.18 | -10.45 | 223.20 | -27.63 | 115.41 | 0.5069 | -925.9 | -759.1 | |
| 0.00 | 1.20 | 0.00 | 0.69 | -11.76 | 223.00 | -27.83 | 117.59 | 0.5178 | -696.0 | -556.0 | |
| 0.00 | 2.40 | 0.00 | 1.39 | -11.49 | 222.99 | -27.84 | 117.11 | 0.5161 | -1046.0 | -884.4 | |
| 0.00 | 0.43 | 0.00 | 0.25 | -10.70 | 223.08 | -27.75 | 115.76 | 0.5101 | -659.0 | -547.6 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -13.58 | 222.67 | -28.16 | 120.43 | 0.5341 | -743.0 | -624.4 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -11.80 | 222.79 | -28.04 | 117.48 | 0.5208 | -743.0 | -671.7 | |
| 0.00 | 0.94 | 0.00 | 0.54 | -11.00 | 222.87 | -27.95 | 116.15 | 0.5147 | -872.0 | -727.4 | |
| 2.66 | 6.01 | 1.55 | 3.50 | -12.81 | 222.63 | -28.20 | 119.10 | 0.5294 | -948.7 | -683.8 | |
| 0.00 | 4.38 | 0.00 | 2.53 | -11.49 | 222.75 | -28.08 | 116.92 | 0.5194 | -916.0 | -781.5 | |
| 0.77 | 1.97 | 0.45 | 1.16 | -13.43 | 222.45 | -28.38 | 119.99 | 0.5359 | -905.8 | -769.5 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -14.39 | 222.21 | -28.61 | 121.37 | 0.5455 | -749.0 | -621.9 | |
| 0.00 | 2.66 | 0.00 | 1.54 | -11.25 | 222.57 | -28.26 | 116.36 | 0.5203 | -626.0 | -588.7 | |
| 0.69 | 5.06 | 0.40 | 2.97 | -13.31 | 222.15 | -28.68 | 119.55 | 0.5389 | -891.9 | -780.1 | |
| 0.77 | 2.49 | 0.45 | 1.46 | -13.25 | 221.95 | -28.88 | 119.29 | 0.5411 | -737.2 | -593.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
