SDO HMI 2014-11-19 17:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.74 | 0.00 | 5.94 | 13.64 | 268.05 | 18.88 | 281.10 | 0.4188 | 424.7 | 277.5 | |
|
previous
or next observation for the same group /

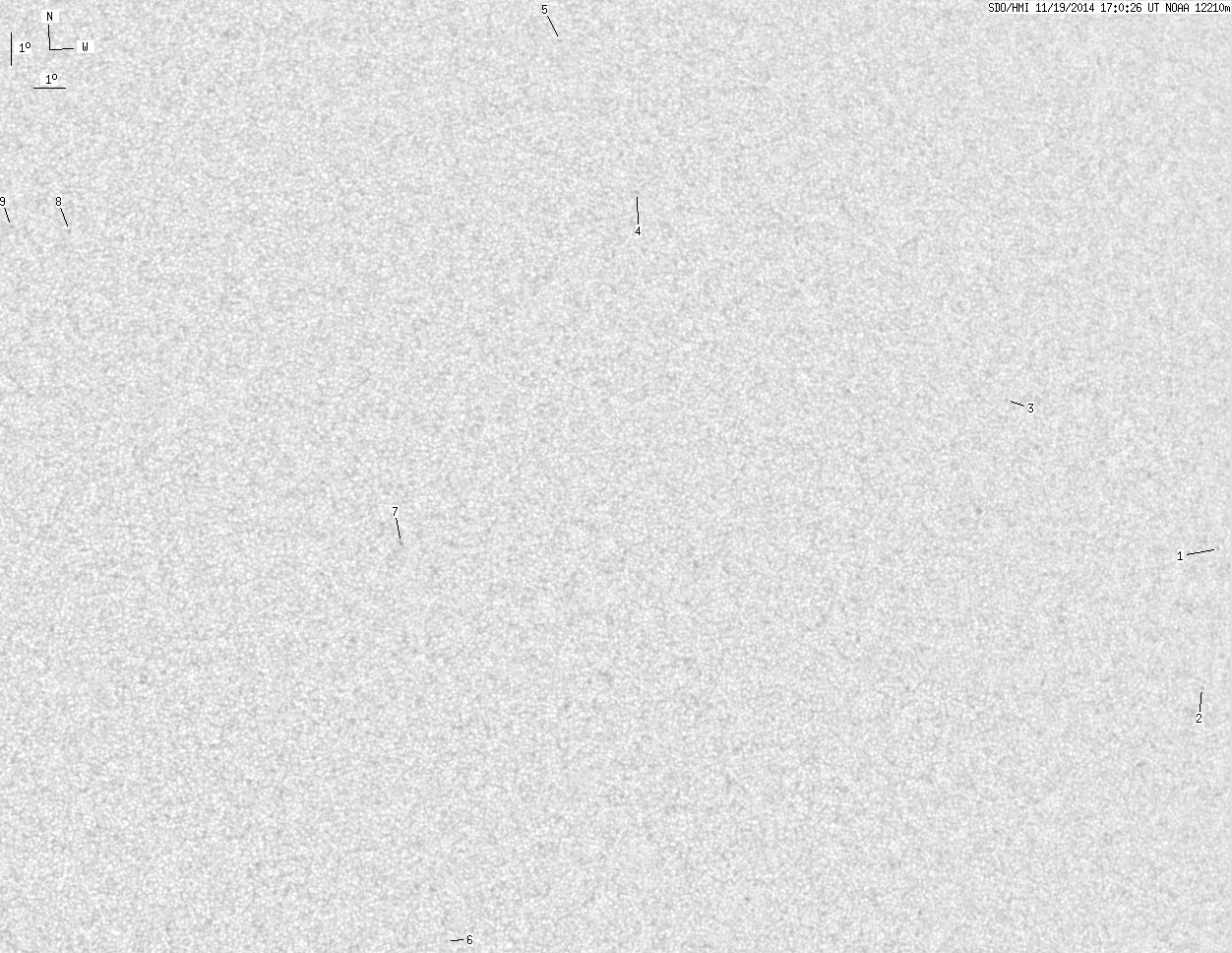

back to the solar disc SDO HMI 2014-11-19 17:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.71 | 8.98 | 287.23 | 38.05 | 281.56 | 0.6237 | 610.0 | 503.8 | |
| 0.00 | 1.12 | 0.00 | 0.69 | 4.81 | 286.19 | 37.01 | 274.91 | 0.6044 | 518.0 | 464.7 | |
| 0.00 | 1.03 | 0.00 | 0.60 | 13.69 | 279.94 | 30.77 | 292.19 | 0.5389 | 697.0 | 521.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 20.38 | 268.04 | 18.87 | 315.82 | 0.4369 | -767.0 | -601.8 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 25.28 | 266.08 | 16.91 | 326.12 | 0.4737 | -643.0 | -493.7 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -2.36 | 260.86 | 11.68 | 248.23 | 0.2189 | 772.0 | 595.0 | |
| 0.00 | 1.72 | 0.00 | 0.87 | 9.64 | 259.62 | 10.45 | 305.60 | 0.2209 | 998.0 | 642.2 | |
| 0.00 | 1.29 | 0.00 | 0.67 | 19.31 | 249.47 | 0.29 | 359.05 | 0.2934 | 746.0 | 539.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 19.43 | 247.62 | -1.56 | 4.98 | 0.2966 | 891.0 | 726.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
