Sunspot Group 12209

group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

12209	475.49	2829.33	247.80	1479.65	-15.07	244.48	-0.83	177.40	0.3185	-389.5	-200.2

previous or next observation for the same group / back to the solar disc

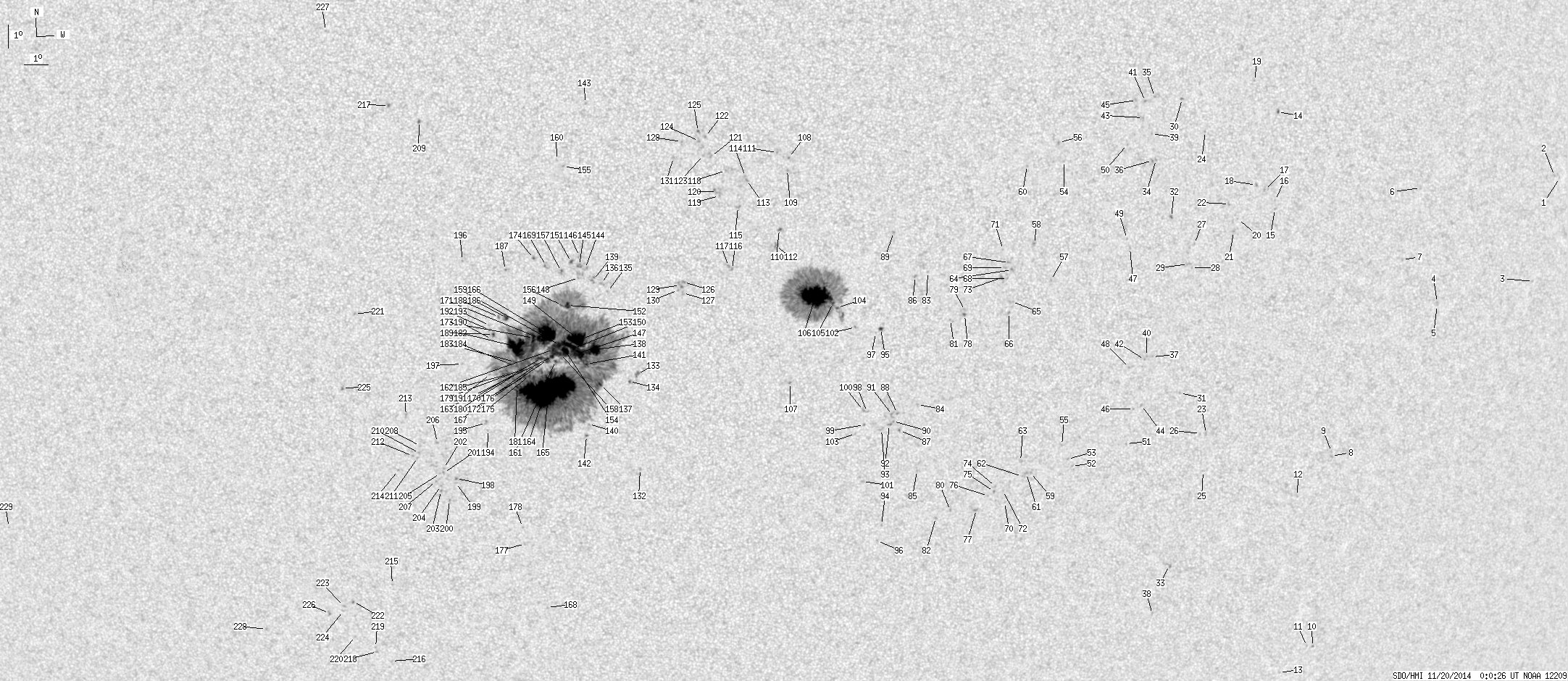

SDO HMI 2014-11-20 00:00:26 UT
No observation available

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP

1	0.00	0.26	0.00	0.17	-8.34	286.77	41.47	255.08	0.6804	514.0	466.7
2	0.00	0.94	0.00	0.63	-8.24	286.48	41.17	255.13	0.6765	606.0	518.3
3	0.00	1.20	0.00	0.81	-12.66	285.99	40.68	248.65	0.6852	549.0	419.6
4	0.00	1.03	0.00	0.65	-13.42	281.00	35.69	245.10	0.6280	666.0	528.4
5	0.00	0.69	0.00	0.44	-13.54	281.02	35.71	244.93	0.6288	520.0	473.2
6	0.00	1.72	0.00	1.05	-8.58	279.49	34.19	251.90	0.5868	620.0	420.7
7	0.00	1.29	0.00	0.79	-11.56	278.94	33.63	246.78	0.5927	591.0	453.7
8	0.00	1.72	0.00	1.08	-19.96	276.86	31.55	232.82	0.6196	713.0	557.3
9	0.00	1.12	0.00	0.70	-19.76	276.81	31.51	233.05	0.6177	727.0	571.7
10	0.00	1.20	0.00	0.83	-28.70	278.36	33.05	223.21	0.7010	773.0	590.2
11	0.00	0.94	0.00	0.65	-28.66	278.02	32.71	222.99	0.6978	724.0	530.5
12	0.00	1.37	0.00	0.86	-21.69	275.51	30.21	229.35	0.6185	273.0	318.3
13	0.00	1.03	0.00	0.71	-29.92	276.94	31.63	220.74	0.6989	-329.0	-241.2
14	0.51	2.23	0.29	1.25	-5.27	272.41	27.10	254.34	0.4731	790.0	577.0
15	0.00	1.20	0.00	0.68	-9.30	272.53	27.23	246.49	0.4944	708.0	585.8
16	0.00	0.69	0.00	0.39	-8.93	272.50	27.20	247.15	0.4920	508.0	398.0
17	0.00	1.37	0.00	0.78	-8.50	272.00	26.69	247.61	0.4825	936.0	738.2
18	0.00	1.63	0.00	0.92	-8.28	271.58	26.28	247.73	0.4753	583.0	600.7
19	0.00	0.60	0.00	0.33	-3.97	271.29	25.99	256.50	0.4514	743.0	599.3
20	0.00	0.77	0.00	0.43	-9.69	270.85	25.55	244.40	0.4733	688.0	524.4
21	0.00	1.03	0.00	0.58	-10.20	270.70	25.39	243.28	0.4744	878.0	697.2
22	0.00	1.72	0.00	0.96	-9.04	270.41	25.10	245.29	0.4631	765.0	691.5
23	0.00	1.97	0.00	1.16	-18.83	270.46	25.15	228.43	0.5398	674.0	485.7
24	0.00	1.12	0.00	0.61	-6.02	269.14	23.84	250.66	0.4277	-769.0	-619.8
25	0.00	1.20	0.00	0.71	-20.49	270.60	25.29	226.21	0.5566	725.0	558.8
26	0.00	1.12	0.00	0.65	-18.83	270.18	24.87	228.14	0.5367	691.0	502.8
27	0.00	1.20	0.00	0.67	-10.68	268.95	23.64	240.69	0.4538	679.0	491.3
28	0.00	0.94	0.00	0.53	-11.69	268.90	23.60	238.71	0.4606	664.0	588.6
29	0.00	3.69	0.00	2.05	-11.53	268.72	23.42	238.82	0.4571	775.0	594.1
30	0.00	1.72	0.00	0.93	-4.65	268.05	22.74	253.01	0.4047	-881.0	-683.8
31	0.00	1.12	0.00	0.64	-17.04	268.96	23.66	229.49	0.5066	782.0	601.7
32	0.00	1.80	0.00	0.99	-9.54	267.81	22.51	241.85	0.4300	958.0	818.9
33	0.00	3.52	0.00	2.15	-24.72	269.75	24.44	219.81	0.5892	722.0	566.8
34	0.00	1.29	0.00	0.70	-7.15	266.99	21.69	246.27	0.4023	826.0	687.2
35	0.00	0.94	0.00	0.51	-4.54	266.83	21.52	252.37	0.3854	841.0	685.6
36	0.00	1.89	0.00	1.02	-7.18	266.84	21.53	246.06	0.4001	866.0	749.6
37	0.00	0.69	0.00	0.39	-15.45	267.49	22.19	230.33	0.4748	727.0	578.9
38	0.00	1.37	0.00	0.86	-26.97	269.40	24.10	216.85	0.6091	661.0	568.0
39	0.00	0.86	0.00	0.46	-6.07	266.75	21.45	248.59	0.3922	664.0	546.7
40	0.00	1.03	0.00	0.58	-15.42	267.22	21.92	230.06	0.4713	804.0	645.9
41	0.00	1.20	0.00	0.64	-4.72	266.42	21.11	251.62	0.3799	900.0	740.4
42	0.00	0.94	0.00	0.53	-15.57	267.14	21.84	229.70	0.4718	807.0	673.5
43	0.00	1.46	0.00	0.78	-5.40	266.34	21.04	249.85	0.3824	722.0	436.4
44	0.00	1.72	0.00	0.98	-17.54	267.24	21.94	226.63	0.4920	804.0	587.5
45	0.00	1.03	0.00	0.55	-4.68	266.03	20.73	251.40	0.3738	773.0	621.9
46	0.00	0.86	0.00	0.49	-17.69	266.89	21.59	225.95	0.4897	774.0	612.0
47	0.00	1.20	0.00	0.65	-10.82	266.06	20.75	237.21	0.4158	818.0	677.2
48	0.00	1.29	0.00	0.72	-15.90	266.48	21.18	228.30	0.4673	860.0	629.5
49	0.00	1.12	0.00	0.61	-10.42	265.90	20.59	237.84	0.4104	596.0	497.2
50	0.00	0.86	0.00	0.46	-6.50	265.69	20.38	246.52	0.3789	652.0	574.9
51	0.00	0.94	0.00	0.54	-19.21	266.76	21.45	223.50	0.5037	542.0	453.1
52	0.00	1.20	0.00	0.68	-20.16	264.36	19.06	218.90	0.4901	674.0	548.9
53	0.00	1.12	0.00	0.63	-19.84	264.12	18.82	219.00	0.4841	761.0	609.8
54	0.00	0.77	0.00	0.41	-7.15	262.97	17.66	241.70	0.3434	777.0	650.0
55	0.00	1.29	0.00	0.72	-19.23	263.79	18.48	219.36	0.4738	801.0	652.9
56	0.00	1.72	0.00	0.90	-6.37	262.72	17.41	243.44	0.3340	902.0	676.3
57	0.00	0.94	0.00	0.51	-12.11	262.66	17.35	229.75	0.3837	821.0	615.1
58	0.00	1.46	0.00	0.77	-10.58	261.84	16.53	231.69	0.3581	919.0	713.1
59	0.00	1.37	0.00	0.77	-20.43	262.50	17.19	215.77	0.4758	866.0	713.6
60	0.00	1.03	0.00	0.54	-7.31	261.38	16.07	238.98	0.3219	730.0	585.0
61	0.00	1.89	0.00	1.06	-20.45	262.30	17.00	215.43	0.4744	930.0	785.6
62	0.00	0.86	0.00	0.48	-20.58	262.12	16.81	214.98	0.4743	765.0	555.6
63	0.00	2.32	0.00	1.29	-19.91	261.98	16.67	215.65	0.4648	695.0	672.4
64	0.00	1.97	0.00	1.05	-11.66	260.93	15.62	227.74	0.3579	932.0	793.8
65	0.00	2.32	0.00	1.24	-13.01	261.01	15.70	225.14	0.3736	630.0	558.1
66	0.00	1.80	0.00	0.96	-13.47	260.91	15.60	224.08	0.3777	923.0	669.9
67	0.00	1.63	0.00	0.86	-11.35	260.78	15.48	228.14	0.3528	909.0	726.5
68	0.00	0.86	0.00	0.46	-12.02	260.76	15.45	226.67	0.3598	774.0	644.5
69	0.00	1.80	0.00	0.95	-11.56	260.61	15.30	227.36	0.3530	837.0	692.5
70	0.00	1.20	0.00	0.68	-21.73	261.46	16.15	212.50	0.4829	417.0	299.9
71	0.00	0.94	0.00	0.50	-10.80	260.50	15.20	228.84	0.3435	801.0	639.8
72	0.00	0.86	0.00	0.48	-21.22	261.33	16.03	212.93	0.4754	737.0	557.1
73	0.00	3.26	0.00	1.73	-11.99	260.47	15.17	226.22	0.3560	1092.0	884.9
74	0.00	0.77	0.00	0.43	-21.02	260.95	15.64	212.55	0.4697	882.0	726.3
75	0.00	1.20	0.00	0.67	-21.24	260.90	15.60	212.21	0.4722	971.0	792.6
76	0.00	0.69	0.00	0.39	-21.43	260.66	15.36	211.58	0.4726	759.0	650.2
77	0.00	2.49	0.00	1.40	-22.04	260.20	14.89	210.11	0.4768	820.0	666.5
78	0.00	1.80	0.00	0.96	-13.54	258.99	13.69	220.26	0.3575	885.0	835.8
79	0.00	2.40	0.00	1.27	-13.35	258.98	13.68	220.59	0.3551	666.0	558.8
80	0.00	1.12	0.00	0.62	-22.06	259.01	13.71	208.10	0.4682	892.0	748.2
81	0.00	0.86	0.00	0.45	-13.75	258.38	13.07	218.60	0.3537	841.0	666.4
82	0.00	1.37	0.00	0.77	-22.38	258.38	13.08	206.68	0.4680	672.0	618.4
83	0.00	1.29	0.00	0.67	-11.71	257.31	12.01	220.20	0.3170	756.0	501.8
84	0.00	1.03	0.00	0.55	-17.38	257.18	11.87	210.33	0.3906	749.0	600.8
85	0.00	1.12	0.00	0.61	-20.27	257.36	12.05	207.09	0.4318	671.0	537.3
86	0.00	1.80	0.00	0.94	-11.89	256.80	11.49	218.60	0.3138	824.0	723.4
87	0.00	1.37	0.00	0.74	-18.51	256.46	11.15	207.37	0.4007	958.0	767.6
88	0.00	1.29	0.00	0.69	-17.75	256.32	11.01	208.02	0.3889	830.0	740.7
89	0.00	1.37	0.00	0.71	-10.02	255.81	10.50	220.17	0.2795	-861.0	-722.9
90	0.00	1.29	0.00	0.69	-18.09	256.15	10.84	207.22	0.3925	707.0	646.3
91	0.00	3.95	0.00	2.12	-17.81	256.10	10.79	207.47	0.3882	831.0	747.9
92	0.00	1.80	0.00	0.97	-18.25	256.00	10.69	206.71	0.3937	872.0	717.8
93	0.00	2.66	0.00	1.43	-18.43	255.66	10.35	205.77	0.3939	588.0	356.8
94	0.00	0.86	0.00	0.48	-22.68	255.95	10.65	202.02	0.4566	774.0	681.5
95	1.46	2.57	0.77	1.35	-14.09	255.40	10.10	211.15	0.3302	952.9	759.5
96	0.00	1.63	0.00	0.91	-23.40	255.81	10.51	201.13	0.4661	721.0	479.5
97	0.00	0.86	0.00	0.45	-14.27	255.20	9.89	210.33	0.3310	662.0	501.5
98	0.00	1.20	0.00	0.64	-17.67	254.98	9.68	205.17	0.3782	714.0	646.9
99	0.00	1.12	0.00	0.60	-18.24	254.89	9.58	204.30	0.3858	-740.0	-617.8
100	0.00	1.89	0.00	1.01	-17.61	254.82	9.52	204.88	0.3762	865.0	699.7
101	0.00	1.89	0.00	1.03	-20.73	254.97	9.67	201.91	0.4227	645.0	438.0
102	0.00	1.29	0.00	0.67	-14.02	254.32	9.01	208.47	0.3203	-876.0	-650.3
103	0.00	1.12	0.00	0.60	-18.62	254.53	9.22	203.09	0.3890	-681.0	-513.4
104	0.51	455.92	0.27	235.59	-13.18	253.52	8.21	207.57	0.3018	820.8	470.8
105	1.03	-104.00	0.53	-104.00	-12.99	253.33	8.02	207.32	0.2976	824.2	999999
106	72.94	-104.00	37.71	-104.00	-12.68	252.58	7.28	205.59	0.2874	1474.3	999999
107	0.00	1.46	0.00	0.77	-16.39	251.61	6.31	198.23	0.3384	841.0	708.4
108	0.00	1.20	0.00	0.61	-6.89	251.35	6.04	213.28	0.1914	-877.0	-764.4
109	0.00	1.37	0.00	0.69	-7.40	251.30	5.99	211.63	0.1983	-925.0	-762.9
110	0.00	2.32	0.00	1.18	-9.87	251.00	5.70	204.92	0.2331	1062.0	879.3
111	0.00	0.60	0.00	0.30	-6.68	250.87	5.56	211.74	0.1838	-906.0	-742.6
112	0.00	3.26	0.00	1.66	-10.57	250.86	5.56	203.18	0.2429	1016.0	778.7
113	0.00	1.63	0.00	0.82	-7.81	249.62	4.32	203.05	0.1913	-937.0	-750.5
114	0.00	1.37	0.00	0.69	-7.66	249.56	4.25	203.07	0.1885	-831.0	-650.7
115	0.00	2.92	0.00	1.48	-8.92	249.27	3.97	199.37	0.2070	-642.0	-720.6
116	0.00	1.89	0.00	0.97	-11.53	249.06	3.75	195.03	0.2484	-888.0	-638.2
117	0.00	1.72	0.00	0.88	-11.41	248.91	3.60	194.58	0.2457	-825.0	-818.5
118	0.00	1.12	0.00	0.56	-7.42	248.75	3.44	199.47	0.1795	-805.0	-521.7
119	0.00	0.69	0.00	0.35	-8.47	248.49	3.18	196.40	0.1954	-680.0	-476.6
120	0.00	4.38	0.00	2.21	-8.29	248.40	3.09	196.21	0.1920	-699.0	-754.6
121	0.00	1.63	0.00	0.82	-6.81	248.15	2.84	197.30	0.1664	-776.0	-634.1
122	0.00	1.29	0.00	0.64	-6.00	247.91	2.60	197.38	0.1518	-1023.0	-832.3
123	0.00	1.46	0.00	0.73	-6.78	247.82	2.51	195.45	0.1643	-733.0	-499.4
124	0.00	1.72	0.00	0.86	-6.18	247.64	2.33	195.37	0.1534	-867.0	-694.7
125	0.00	1.80	0.00	0.90	-5.79	247.61	2.30	195.87	0.1468	-975.0	-823.1
126	0.00	1.80	0.00	0.92	-12.08	247.03	1.73	186.78	0.2510	-917.0	-874.1
127	0.00	2.57	0.00	1.32	-12.53	247.01	1.70	186.46	0.2586	-758.0	-646.5
128	0.00	1.80	0.00	0.90	-6.21	246.92	1.62	190.75	0.1511	-852.0	-511.8
129	0.00	3.78	0.00	1.93	-12.20	246.88	1.58	186.14	0.2527	-1054.0	-870.4
130	0.00	1.20	0.00	0.62	-12.41	246.79	1.49	185.71	0.2562	-804.0	-643.1
131	0.00	1.63	0.00	0.82	-6.87	246.60	1.29	188.00	0.1615	-901.0	-711.3
132	0.00	1.72	0.00	0.92	-20.14	245.20	-0.10	179.75	0.3831	-690.0	-530.5
133	0.00	4.29	0.00	2.24	-15.99	245.09	-0.22	179.33	0.3151	1088.0	822.2
134	0.34	1.72	0.18	0.90	-16.31	244.75	-0.56	178.32	0.3204	797.8	672.9
135	0.00	1.29	0.00	0.66	-12.47	243.85	-1.45	174.44	0.2571	-656.0	-339.0
136	0.00	3.09	0.00	1.58	-12.13	243.61	-1.69	173.38	0.2518	693.0	541.2
137	1.63	2069.37	0.85	1079.76	-16.43	243.51	-1.79	174.65	0.3237	943.8	-418.6
138	13.90	-137.00	7.21	-137.00	-14.93	243.31	-1.99	173.52	0.2993	-1387.0	999999
139	0.00	4.38	0.00	2.24	-11.98	243.25	-2.06	171.89	0.2501	696.0	731.8
140	0.00	0.77	0.00	0.41	-18.16	242.99	-2.31	173.74	0.3530	-463.0	-341.3
141	1.37	-137.00	0.72	-137.00	-15.56	242.94	-2.37	172.59	0.3104	-740.2	999999
142	0.00	1.37	0.00	0.73	-18.67	242.89	-2.41	173.63	0.3614	688.0	503.2
143	0.00	1.20	0.00	0.60	-4.62	243.00	-2.31	161.56	0.1274	-897.0	-709.4
144	0.00	3.69	0.00	1.88	-11.49	242.92	-2.39	170.28	0.2427	558.0	644.6
145	0.00	4.12	0.00	2.10	-11.37	242.68	-2.63	169.23	0.2414	847.0	748.1
146	0.00	2.40	0.00	1.22	-10.97	242.68	-2.62	168.92	0.2348	939.0	745.4
147	12.36	-137.00	6.42	-137.00	-15.09	242.60	-2.70	171.33	0.3035	-1215.6	999999
148	0.00	1.20	0.00	0.61	-11.89	242.64	-2.66	169.49	0.2502	-689.0	-590.4
149	33.04	-137.00	17.11	-137.00	-14.47	242.55	-2.75	170.83	0.2933	-1610.2	999999
150	7.38	-137.00	3.83	-137.00	-14.87	242.42	-2.88	170.64	0.3003	-1392.1	999999
151	0.60	2.92	0.31	1.49	-11.22	242.35	-2.96	167.77	0.2400	1017.0	820.1
152	4.63	-137.00	2.38	-137.00	-13.05	242.17	-3.13	168.62	0.2710	-1290.5	999999
153	8.07	-137.00	4.18	-137.00	-14.72	242.12	-3.19	169.58	0.2987	-1566.3	999999
154	10.21	-137.00	5.31	-137.00	-15.00	242.05	-3.25	169.55	0.3035	-1315.0	999999
155	0.00	0.69	0.00	0.35	-7.23	242.06	-3.25	161.22	0.1754	-940.0	-790.2
156	1.20	-137.00	0.62	-137.00	-13.05	241.93	-3.38	167.76	0.2719	-1158.7	999999
157	0.00	2.75	0.00	1.40	-11.61	241.92	-3.39	166.46	0.2482	871.0	715.2
158	0.26	-137.00	0.13	-137.00	-15.12	241.84	-3.47	168.95	0.3062	-1202.3	999999
159	5.32	-137.00	2.76	-137.00	-14.75	241.81	-3.49	168.62	0.3002	-1373.9	999999
160	0.00	1.20	0.00	0.60	-6.96	241.79	-3.51	159.25	0.1725	-698.0	-474.5
161	1.20	-137.00	0.63	-137.00	-15.43	241.61	-3.69	168.47	0.3120	-1111.3	999999
162	1.12	-137.00	0.58	-137.00	-14.94	241.53	-3.77	167.87	0.3042	-1240.2	999999
163	2.15	-137.00	1.12	-137.00	-15.25	241.46	-3.84	167.89	0.3094	-1232.6	999999
164	3.43	-137.00	1.79	-137.00	-15.99	241.42	-3.89	168.26	0.3218	-1325.3	999999
165	176.35	-137.00	92.60	-137.00	-16.68	241.31	-4.00	168.40	0.3333	-1680.7	999999
166	38.79	-137.00	20.09	-137.00	-14.26	241.30	-4.01	166.62	0.2939	-1469.9	999999
167	5.23	-137.00	2.73	-137.00	-15.37	241.28	-4.03	167.41	0.3121	-1064.1	999999
168	0.00	1.29	0.00	0.73	-26.42	240.95	-4.35	171.94	0.4870	-692.0	-513.6
169	0.00	4.46	0.00	2.28	-11.37	241.29	-4.02	163.78	0.2470	802.0	700.5
170	3.43	-137.00	1.79	-137.00	-15.31	241.00	-4.30	166.53	0.3122	-971.9	999999
171	3.43	-137.00	1.78	-137.00	-14.44	240.93	-4.38	165.59	0.2984	-1133.8	999999
172	2.57	-137.00	1.34	-137.00	-15.59	240.81	-4.50	166.18	0.3175	-1059.4	999999
173	5.75	-137.00	2.98	-137.00	-14.44	240.71	-4.59	164.92	0.2994	-951.3	999999
174	0.00	1.89	0.00	0.96	-11.07	240.78	-4.53	161.45	0.2446	977.0	854.2
175	1.46	-137.00	0.76	-137.00	-16.06	240.49	-4.82	165.62	0.3263	-1100.6	999999
176	3.35	-137.00	1.75	-137.00	-16.09	240.30	-5.00	165.11	0.3276	-1023.0	999999
177	0.00	1.29	0.00	0.71	-23.48	240.05	-5.25	169.07	0.4446	-613.0	-552.5
178	0.00	0.86	0.00	0.47	-22.73	239.99	-5.32	168.57	0.4331	-721.0	-621.4
179	2.92	-137.00	1.53	-137.00	-15.81	240.16	-5.15	164.46	0.3237	-1185.8	999999
180	0.26	-137.00	0.13	-137.00	-15.93	240.03	-5.28	164.20	0.3263	-908.0	999999
181	1.89	-137.00	0.99	-137.00	-16.56	239.95	-5.36	164.51	0.3366	-1088.3	999999
182	35.70	-137.00	18.58	-137.00	-14.82	239.97	-5.34	162.98	0.3088	1337.0	999999
183	2.15	-137.00	1.12	-137.00	-15.47	239.89	-5.42	163.37	0.3195	-721.7	999999
184	1.97	-137.00	1.03	-137.00	-15.56	239.67	-5.64	162.83	0.3221	-925.9	999999
185	1.63	-137.00	0.85	-137.00	-16.00	239.59	-5.71	163.03	0.3293	-844.5	999999
186	2.92	4.81	1.51	2.49	-13.58	239.57	-5.74	160.42	0.2913	-811.4	-454.5
187	0.00	0.94	0.00	0.48	-11.56	239.59	-5.72	157.79	0.2595	883.0	807.9
188	0.00	1.97	0.00	1.02	-13.55	239.26	-6.04	159.43	0.2926	-833.0	-618.9
189	1.03	2.66	0.54	1.38	-14.29	239.00	-6.31	159.52	0.3057	1002.9	787.0
190	0.00	2.06	0.00	1.07	-14.51	238.93	-6.38	159.57	0.3095	519.0	528.4
191	0.00	0.94	0.00	0.50	-16.00	238.82	-6.49	160.90	0.3333	-484.0	-361.3
192	0.00	1.89	0.00	0.98	-14.11	238.85	-6.46	158.86	0.3037	875.0	682.1
193	0.00	1.37	0.00	0.71	-13.92	238.85	-6.45	158.64	0.3008	897.0	574.3
194	0.00	0.86	0.00	0.46	-18.42	238.64	-6.67	162.68	0.3718	-532.0	-469.1
195	0.00	2.66	0.00	1.42	-18.11	238.55	-6.75	162.21	0.3673	-711.0	-576.7
196	0.00	1.12	0.00	0.57	-11.17	237.80	-7.50	151.13	0.2666	-699.0	-622.8
197	0.00	0.77	0.00	0.41	-15.57	237.63	-7.68	157.20	0.3337	772.0	670.7
198	0.00	1.72	0.00	0.93	-20.57	237.14	-8.17	161.08	0.4120	-1008.0	-802.5
199	0.00	1.12	0.00	0.61	-20.76	237.13	-8.18	161.22	0.4149	-711.0	-634.1
200	0.00	1.29	0.00	0.70	-21.54	236.79	-8.51	161.16	0.4282	-920.0	-763.0
201	0.00	1.29	0.00	0.70	-20.31	236.61	-8.70	159.73	0.4110	-1012.0	-870.3
202	0.00	0.94	0.00	0.51	-20.12	236.62	-8.68	159.58	0.4081	-1001.0	-813.5
203	0.00	1.37	0.00	0.75	-21.12	236.43	-8.87	160.07	0.4239	-800.0	-641.9
204	0.00	0.94	0.00	0.51	-20.89	236.45	-8.86	159.90	0.4205	-775.0	-657.5
205	0.00	0.69	0.00	0.37	-20.35	236.45	-8.86	159.41	0.4124	-801.0	-697.8
206	0.00	1.63	0.00	0.88	-18.97	236.40	-8.91	157.99	0.3923	-893.0	-727.3
207	0.00	0.86	0.00	0.47	-20.70	236.24	-9.07	159.29	0.4188	-759.0	-678.3
208	0.00	1.20	0.00	0.65	-19.14	235.63	-9.68	156.47	0.3995	-766.0	-626.4
209	0.00	1.80	0.00	0.91	-5.39	236.12	-9.19	129.93	0.2083	-1030.0	-829.9
210	0.00	1.29	0.00	0.70	-19.45	235.58	-9.73	156.69	0.4045	-817.0	-627.3
211	0.00	1.12	0.00	0.60	-19.65	235.50	-9.81	156.73	0.4078	-766.0	-655.2
212	0.00	1.03	0.00	0.56	-19.58	235.28	-10.02	156.21	0.4083	-781.0	-652.7
213	0.00	2.32	0.00	1.24	-17.81	235.11	-10.20	153.82	0.3839	-855.0	-717.0
214	0.00	0.94	0.00	0.52	-20.23	234.60	-10.71	155.48	0.4220	-763.0	-616.3
215	0.00	1.20	0.00	0.69	-25.37	233.90	-11.40	158.93	0.4988	-543.0	-489.0
216	0.00	1.37	0.00	0.81	-28.99	233.48	-11.82	160.93	0.5507	-569.0	-604.2
217	0.00	1.89	0.00	0.96	-4.74	234.86	-10.45	123.96	0.2189	-1060.0	-889.7
218	0.00	1.46	0.00	0.86	-28.54	232.84	-12.46	159.67	0.5478	-786.0	-649.1
219	0.00	1.12	0.00	0.66	-28.34	232.80	-12.51	159.46	0.5453	-678.0	-451.7
220	0.00	0.86	0.00	0.51	-27.83	231.90	-13.41	157.73	0.5433	-666.0	-494.9
221	0.00	1.29	0.00	0.68	-13.46	233.12	-12.18	142.82	0.3411	-869.0	-651.9
222	0.00	1.54	0.00	0.90	-26.20	232.00	-13.31	156.54	0.5210	-877.0	-712.0
223	0.00	1.20	0.00	0.70	-26.40	231.53	-13.78	156.00	0.5265	-905.0	-751.8
224	0.00	0.86	0.00	0.50	-26.64	231.47	-13.84	156.11	0.5300	-548.0	-442.3
225	0.00	2.15	0.00	1.15	-16.63	232.40	-12.91	146.49	0.3894	-925.0	-804.9
226	0.00	2.40	0.00	1.41	-26.75	230.80	-14.51	155.21	0.5355	-728.0	-603.9
227	0.00	1.20	0.00	0.61	-1.69	232.26	-13.04	106.87	0.2368	-748.0	-539.1
228	0.00	1.29	0.00	0.77	-27.53	227.67	-17.64	151.54	0.5660	-879.0	-687.1
229	0.00	0.86	0.00	0.54	-23.01	215.87	-29.43	133.05	0.6213	-464.0	-434.5

	Proj. U	- Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	- Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	- Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	- Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	- Heliographic latitude B; positive: North, negative: South
	L	- Heliographic longitude L
	LCM	- Longitudinal distance from the Sun's central meridian
	Pos. angle	- Position angle
	r	- Distance from the centre of Sun's disc in terms of Sun's radius
	MU	- Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	- Mean magnetic field within the penumbra contour averaged the pixel values with sign.
