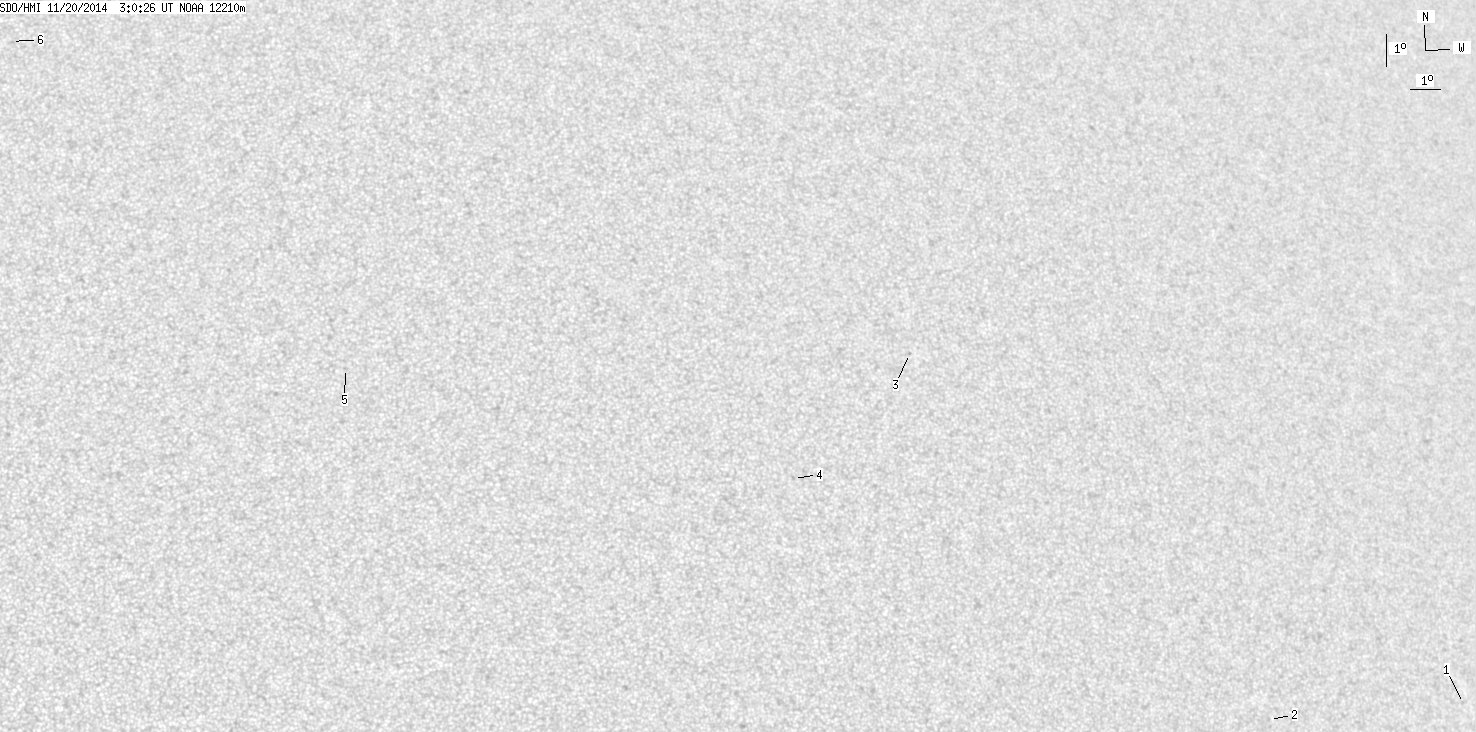

SDO HMI 2014-11-20 03:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.75 | 0.00 | 3.31 | 17.38 | 266.17 | 22.51 | 279.50 | 0.4967 | 359.5 | 244.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-20 03:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.30 | 9.65 | 287.61 | 43.95 | 281.52 | 0.7006 | 235.0 | 216.6 | |
| 0.00 | 1.12 | 0.00 | 0.69 | 9.37 | 279.92 | 36.26 | 282.68 | 0.6004 | 601.0 | 436.8 | |
| 0.00 | 1.29 | 0.00 | 0.74 | 20.76 | 268.81 | 25.15 | 308.91 | 0.5128 | -731.0 | -550.8 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 16.96 | 264.30 | 20.65 | 307.22 | 0.4253 | 765.0 | 534.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | 20.50 | 250.14 | 6.48 | 341.36 | 0.3321 | 661.0 | 527.7 | |
| 0.00 | 0.51 | 0.00 | 0.29 | 31.12 | 239.18 | -4.48 | 7.88 | 0.4893 | 626.0 | 569.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
