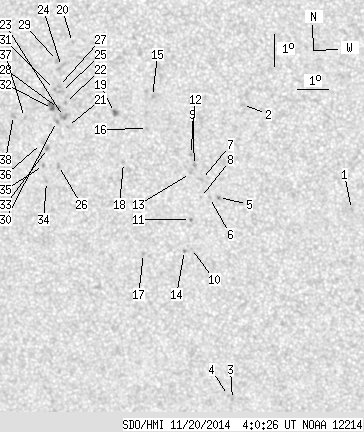

SDO HMI 2014-11-20 04:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.89 | 58.02 | 1.02 | 31.38 | -12.57 | 224.77 | -18.34 | 129.65 | 0.4028 | -284.3 | -333.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-20 04:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.72 | -14.51 | 232.28 | -10.83 | 147.69 | 0.3419 | -807.0 | -520.5 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -11.31 | 229.05 | -14.06 | 134.41 | 0.3349 | 817.0 | 678.3 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -20.53 | 228.03 | -15.08 | 147.74 | 0.4583 | -758.0 | -651.3 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -20.40 | 227.91 | -15.20 | 147.38 | 0.4577 | -614.0 | -488.4 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -14.17 | 228.13 | -14.99 | 138.30 | 0.3786 | 839.0 | 728.8 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -14.17 | 227.84 | -15.27 | 137.78 | 0.3817 | 747.0 | 551.1 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -13.62 | 227.63 | -15.48 | 136.36 | 0.3776 | 790.0 | 549.1 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -14.17 | 227.56 | -15.56 | 137.26 | 0.3848 | 707.0 | 498.4 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -13.19 | 227.43 | -15.68 | 135.19 | 0.3750 | 949.0 | 801.5 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -15.76 | 227.15 | -15.96 | 139.30 | 0.4077 | -786.0 | -593.8 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -14.86 | 227.19 | -15.92 | 137.83 | 0.3968 | 776.0 | 689.0 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -12.85 | 227.33 | -15.78 | 134.35 | 0.3724 | 1058.0 | 859.5 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -13.44 | 227.29 | -15.82 | 135.41 | 0.3794 | 669.0 | 454.9 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -15.82 | 226.92 | -16.19 | 139.01 | 0.4109 | -721.0 | -642.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -11.09 | 226.24 | -16.87 | 128.83 | 0.3671 | 838.0 | 608.4 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -12.07 | 226.02 | -17.09 | 130.53 | 0.3797 | 372.0 | 465.9 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -15.93 | 225.59 | -17.52 | 136.99 | 0.4263 | -852.0 | -602.5 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -13.12 | 225.18 | -17.93 | 131.29 | 0.4007 | -610.0 | -482.6 | |
| 0.77 | 2.92 | 0.41 | 1.57 | -11.59 | 225.01 | -18.11 | 127.95 | 0.3877 | 927.6 | 797.3 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -9.48 | 223.80 | -19.31 | 121.67 | 0.3848 | -775.0 | -544.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -12.04 | 223.47 | -19.64 | 126.65 | 0.4116 | -492.0 | -461.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -11.31 | 223.46 | -19.65 | 125.15 | 0.4051 | -934.0 | -802.9 | |
| 0.00 | 4.29 | 0.00 | 2.33 | -11.73 | 223.36 | -19.75 | 125.90 | 0.4102 | -808.0 | -754.9 | |
| 0.00 | 3.69 | 0.00 | 1.99 | -10.21 | 223.41 | -19.70 | 122.77 | 0.3963 | -838.0 | -744.0 | |
| 0.00 | 2.15 | 0.00 | 1.16 | -10.97 | 223.36 | -19.76 | 124.32 | 0.4035 | -781.0 | -650.6 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -13.24 | 223.08 | -20.03 | 128.46 | 0.4276 | -762.0 | -740.4 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -10.82 | 223.27 | -19.84 | 123.89 | 0.4033 | -852.0 | -742.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -11.49 | 223.22 | -19.89 | 125.22 | 0.4098 | -1099.0 | -992.5 | |
| 0.00 | 2.49 | 0.00 | 1.34 | -10.03 | 223.29 | -19.82 | 122.23 | 0.3964 | -900.0 | -604.6 | |
| 0.00 | 1.89 | 0.00 | 1.03 | -11.89 | 223.13 | -19.98 | 125.90 | 0.4146 | -774.0 | -659.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -10.91 | 223.13 | -19.98 | 123.91 | 0.4059 | -769.0 | -622.8 | |
| 1.12 | 4.72 | 0.61 | 2.56 | -11.49 | 223.03 | -20.08 | 124.97 | 0.4124 | -961.4 | -772.9 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -12.72 | 222.77 | -20.34 | 127.05 | 0.4267 | -1099.0 | -865.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -13.74 | 222.64 | -20.47 | 128.80 | 0.4377 | -866.0 | -648.5 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -13.24 | 222.59 | -20.52 | 127.81 | 0.4337 | -968.0 | -876.8 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -12.57 | 222.59 | -20.53 | 126.52 | 0.4277 | -725.0 | -692.0 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -11.78 | 222.10 | -21.01 | 124.36 | 0.4270 | -752.0 | -608.9 | |
| 0.00 | 2.32 | 0.00 | 1.27 | -11.72 | 221.75 | -21.36 | 123.82 | 0.4311 | -751.0 | -592.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
