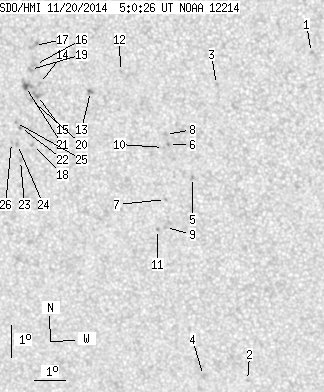

SDO HMI 2014-11-20 05:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.46 | 48.93 | 0.79 | 26.39 | -12.74 | 224.80 | -17.77 | 130.77 | 0.3977 | -287.2 | -314.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-20 05:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.44 | -10.34 | 232.03 | -10.53 | 140.40 | 0.2833 | -876.0 | -814.2 | |
| 0.00 | 0.94 | 0.00 | 0.52 | -20.58 | 229.40 | -13.16 | 151.15 | 0.4437 | -728.0 | -555.0 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -11.34 | 229.06 | -13.50 | 135.61 | 0.3287 | 833.0 | 650.0 | |
| 0.00 | 2.49 | 0.00 | 1.38 | -20.43 | 227.98 | -14.58 | 148.46 | 0.4529 | -810.0 | -661.0 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -14.20 | 228.14 | -14.42 | 139.43 | 0.3728 | 981.0 | 734.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.19 | 227.45 | -15.11 | 136.22 | 0.3684 | 1064.0 | 893.2 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -14.89 | 227.24 | -15.32 | 138.95 | 0.3906 | 749.0 | 555.1 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -12.88 | 227.38 | -15.19 | 135.48 | 0.3658 | 1051.0 | 789.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -15.76 | 227.17 | -15.39 | 140.31 | 0.4017 | -676.0 | -521.0 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -13.28 | 227.29 | -15.27 | 136.10 | 0.3714 | 709.0 | 527.2 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -15.82 | 226.91 | -15.65 | 139.95 | 0.4052 | -854.0 | -610.7 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -10.97 | 226.08 | -16.48 | 129.18 | 0.3610 | 867.0 | 685.4 | |
| 0.00 | 3.09 | 0.00 | 1.65 | -11.59 | 225.09 | -17.47 | 128.91 | 0.3796 | 1044.0 | 841.2 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -11.37 | 223.48 | -19.08 | 126.05 | 0.3981 | -892.0 | -681.0 | |
| 0.00 | 4.38 | 0.00 | 2.37 | -11.73 | 223.39 | -19.17 | 126.68 | 0.4026 | -830.0 | -716.4 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -10.79 | 223.40 | -19.17 | 124.71 | 0.3941 | -809.0 | -678.4 | |
| 0.00 | 3.61 | 0.00 | 1.94 | -10.21 | 223.40 | -19.16 | 123.47 | 0.3890 | -845.0 | -739.7 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -13.24 | 223.11 | -19.45 | 129.24 | 0.4204 | -812.0 | -669.4 | |
| 0.00 | 2.40 | 0.00 | 1.30 | -10.94 | 223.23 | -19.34 | 124.80 | 0.3977 | -758.0 | -697.0 | |
| 0.00 | 1.80 | 0.00 | 0.98 | -11.86 | 223.16 | -19.41 | 126.60 | 0.4068 | -817.0 | -635.8 | |
| 1.46 | 7.30 | 0.79 | 3.95 | -11.46 | 223.03 | -19.54 | 125.62 | 0.4049 | -974.2 | -756.1 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -12.72 | 222.77 | -19.80 | 127.77 | 0.4197 | -1018.0 | -841.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -13.73 | 222.68 | -19.88 | 129.57 | 0.4304 | -856.0 | -587.7 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -13.24 | 222.63 | -19.94 | 128.58 | 0.4264 | -946.0 | -750.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -12.57 | 222.62 | -19.94 | 127.28 | 0.4202 | -754.0 | -651.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -13.18 | 222.44 | -20.13 | 128.21 | 0.4282 | -655.0 | -448.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
