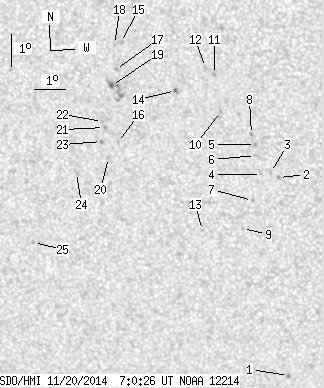

SDO HMI 2014-11-20 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.94 | 42.15 | 0.51 | 22.63 | -12.75 | 224.50 | -16.97 | 132.05 | 0.3871 | -74.7 | -224.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-20 07:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.85 | -20.47 | 228.03 | -13.45 | 150.49 | 0.4442 | -899.0 | -766.4 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.24 | 228.18 | -13.29 | 141.73 | 0.3614 | 954.0 | 804.9 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -14.08 | 227.94 | -13.53 | 140.96 | 0.3620 | 822.0 | 547.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -14.15 | 227.65 | -13.82 | 140.49 | 0.3657 | 651.0 | 496.8 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -13.22 | 227.52 | -13.95 | 138.51 | 0.3559 | 1048.0 | 821.6 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -13.56 | 227.50 | -13.97 | 139.11 | 0.3602 | 656.0 | 604.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -14.96 | 227.31 | -14.16 | 141.24 | 0.3791 | 744.0 | 569.8 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -12.92 | 227.41 | -14.06 | 137.70 | 0.3534 | 961.0 | 792.9 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -15.83 | 226.93 | -14.54 | 141.98 | 0.3938 | -738.0 | -630.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -12.22 | 226.48 | -14.99 | 134.49 | 0.3559 | 723.0 | 621.3 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -11.09 | 226.36 | -15.11 | 131.85 | 0.3450 | 892.0 | 781.6 | |
| 0.00 | 1.97 | 0.00 | 1.04 | -10.88 | 226.09 | -15.38 | 130.89 | 0.3461 | 714.0 | 560.4 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -15.90 | 225.65 | -15.82 | 139.76 | 0.4077 | -867.0 | -686.4 | |
| 0.00 | 2.40 | 0.00 | 1.28 | -11.59 | 225.11 | -16.37 | 130.70 | 0.3657 | 906.0 | 787.8 | |
| 0.00 | 2.40 | 0.00 | 1.28 | -10.15 | 223.46 | -18.02 | 124.93 | 0.3730 | -803.0 | -665.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -13.21 | 223.15 | -18.33 | 130.81 | 0.4062 | -775.0 | -634.0 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -10.97 | 223.25 | -18.23 | 126.42 | 0.3833 | -865.0 | -703.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -10.21 | 223.26 | -18.21 | 124.78 | 0.3761 | -704.0 | -628.8 | |
| 0.94 | 12.45 | 0.51 | 6.69 | -11.46 | 223.09 | -18.39 | 127.22 | 0.3899 | -1070.5 | -801.2 | |
| 0.00 | 1.55 | 0.00 | 0.84 | -13.67 | 222.82 | -18.65 | 131.20 | 0.4148 | -747.0 | -545.2 | |
| 0.00 | 0.60 | 0.00 | 0.33 | -12.75 | 222.77 | -18.71 | 129.36 | 0.4063 | -931.0 | -672.6 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -12.57 | 222.72 | -18.76 | 128.92 | 0.4051 | -851.0 | -739.9 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -13.18 | 222.64 | -18.84 | 130.00 | 0.4121 | -874.0 | -768.8 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -14.15 | 221.74 | -19.73 | 130.52 | 0.4325 | -582.0 | -518.5 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -16.34 | 220.10 | -21.37 | 132.11 | 0.4733 | -719.0 | -593.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
