SDO HMI 2014-11-20 08:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.29 | 44.73 | 0.69 | 23.87 | -12.43 | 224.79 | -16.14 | 133.04 | 0.3735 | -143.3 | -257.8 | |
|
previous
or next observation for the same group /

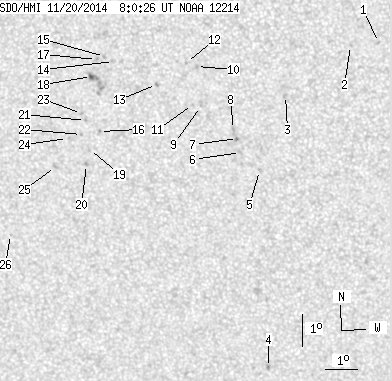

back to the solar disc SDO HMI 2014-11-20 08:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.48 | -10.29 | 232.05 | -8.88 | 144.93 | 0.2655 | -1003.0 | -812.0 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.39 | 231.19 | -9.74 | 142.64 | 0.2754 | -749.0 | -575.8 | |
| 0.00 | 2.23 | 0.00 | 1.16 | -11.93 | 229.13 | -11.79 | 140.62 | 0.3167 | 705.0 | 512.5 | |
| 0.00 | 1.46 | 0.00 | 0.80 | -20.44 | 228.04 | -12.89 | 151.47 | 0.4394 | -991.0 | -823.9 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -14.24 | 228.20 | -12.72 | 142.92 | 0.3556 | 935.0 | 642.1 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -13.69 | 227.64 | -13.29 | 140.73 | 0.3544 | 669.0 | 502.8 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -13.26 | 227.57 | -13.36 | 139.78 | 0.3498 | 861.0 | 778.0 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -12.98 | 227.46 | -13.47 | 139.02 | 0.3476 | 1062.0 | 775.5 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -12.28 | 226.47 | -14.46 | 135.62 | 0.3504 | 642.0 | 567.8 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -11.06 | 226.41 | -14.52 | 132.91 | 0.3373 | 865.0 | 726.8 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -12.22 | 226.22 | -14.71 | 135.02 | 0.3526 | 851.0 | 641.2 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -10.94 | 226.11 | -14.82 | 132.05 | 0.3398 | 857.0 | 686.5 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -11.62 | 225.13 | -15.80 | 131.74 | 0.3590 | 1014.0 | 877.8 | |
| 0.00 | 2.32 | 0.00 | 1.23 | -10.94 | 223.81 | -17.11 | 128.04 | 0.3684 | -464.0 | -391.7 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -10.79 | 223.54 | -17.39 | 127.27 | 0.3705 | -832.0 | -703.0 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -13.08 | 223.22 | -17.70 | 131.52 | 0.3973 | -715.0 | -547.1 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -10.88 | 223.28 | -17.65 | 127.08 | 0.3748 | -829.0 | -737.1 | |
| 1.29 | 12.10 | 0.69 | 6.48 | -11.40 | 223.09 | -17.84 | 127.90 | 0.3822 | -1022.4 | -797.1 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -13.64 | 222.86 | -18.07 | 132.02 | 0.4074 | -543.0 | -521.9 | |
| 0.00 | 1.55 | 0.00 | 0.84 | -14.10 | 222.72 | -18.20 | 132.67 | 0.4138 | -842.0 | -651.2 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -12.75 | 222.80 | -18.13 | 130.21 | 0.3991 | -925.0 | -688.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -13.18 | 222.64 | -18.29 | 130.80 | 0.4054 | -794.0 | -706.7 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -12.54 | 222.69 | -18.24 | 129.62 | 0.3983 | -856.0 | -648.4 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -13.31 | 222.18 | -18.75 | 130.36 | 0.4123 | -653.0 | -600.7 | |
| 0.00 | 2.58 | 0.00 | 1.41 | -14.18 | 221.72 | -19.21 | 131.31 | 0.4265 | -644.0 | -507.5 | |
| 0.00 | 0.34 | 0.00 | 0.19 | -16.31 | 220.03 | -20.90 | 132.66 | 0.4675 | -597.0 | -616.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
