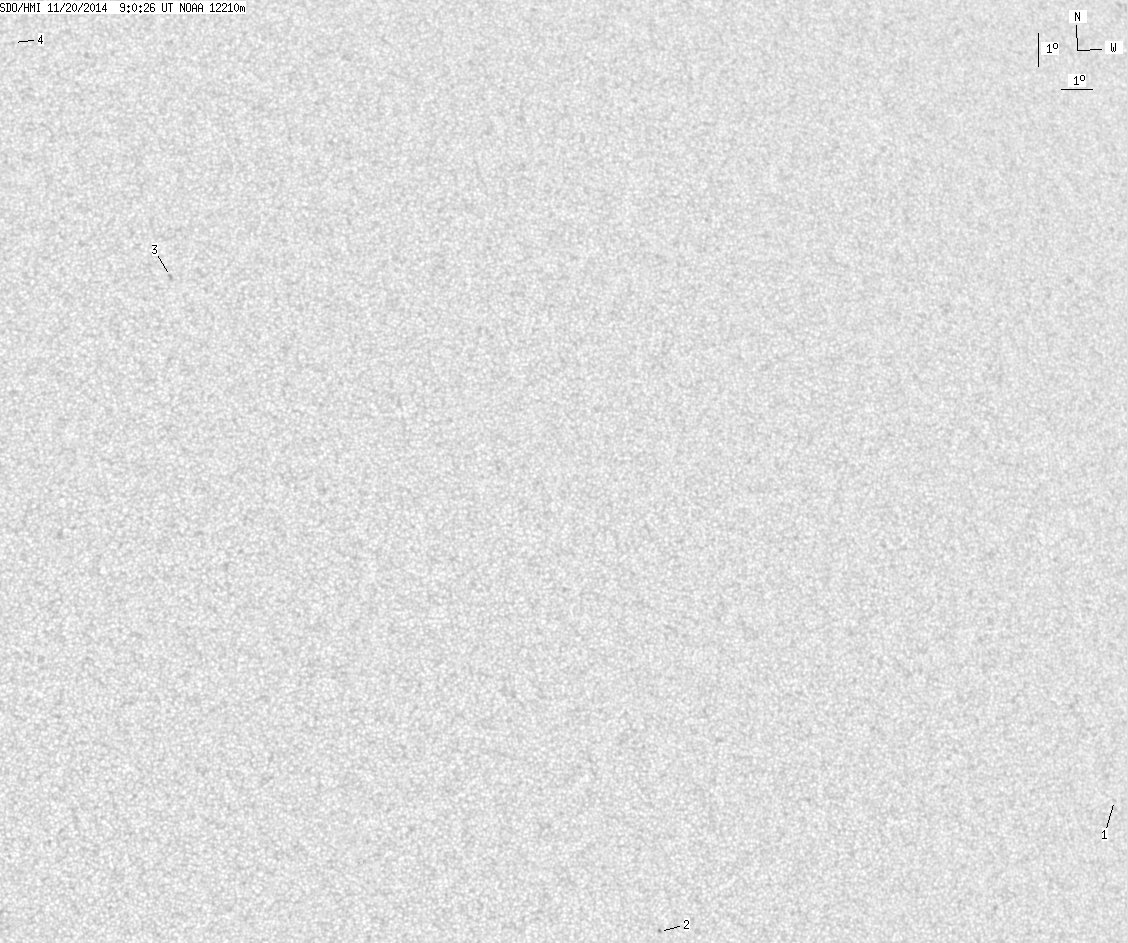

SDO HMI 2014-11-20 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.01 | 0.00 | 3.33 | 17.02 | 254.12 | 13.74 | 231.17 | 0.4377 | 777.2 | 621.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-20 09:00:26 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.37 | 0.00 | 0.83 | 6.39 | 275.23 | 34.85 | 277.97 | 0.5756 | 775.0 | 581.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 2.79 | 259.81 | 19.43 | 272.08 | 0.3339 | 944.0 | 826.5 | |
| 0.00 | 2.06 | 0.00 | 1.09 | 22.76 | 245.35 | 4.97 | 347.18 | 0.3615 | 795.0 | 700.7 | |
| 0.00 | 1.46 | 0.00 | 0.82 | 30.40 | 240.31 | -0.08 | 0.14 | 0.4741 | 595.0 | 409.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
